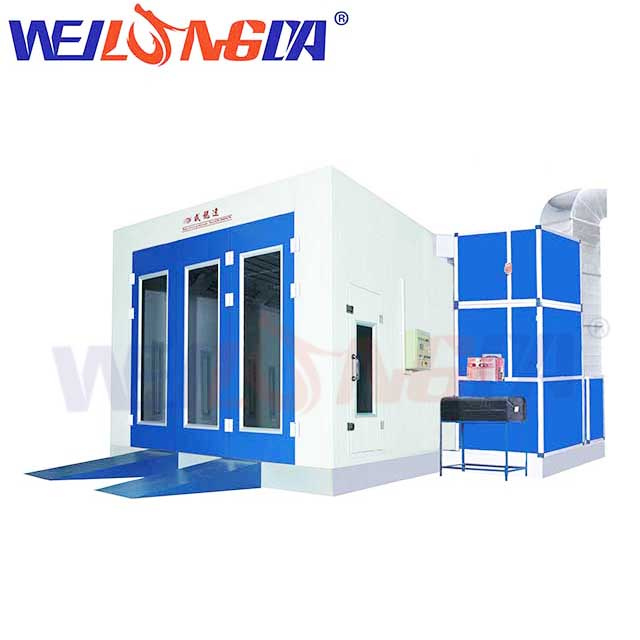

Wld8200 (Standard Type) (CE) Auto Painting Booth

Name: Wld8200 (Standard Type) (CE) Auto Painting Booth
Brand: ibuyautoparts.com
SKU: 644170585
Availability: InStock
Rating: 4.9 (64 reviews)

Price:	US $ 5000-20000/Set
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Set
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

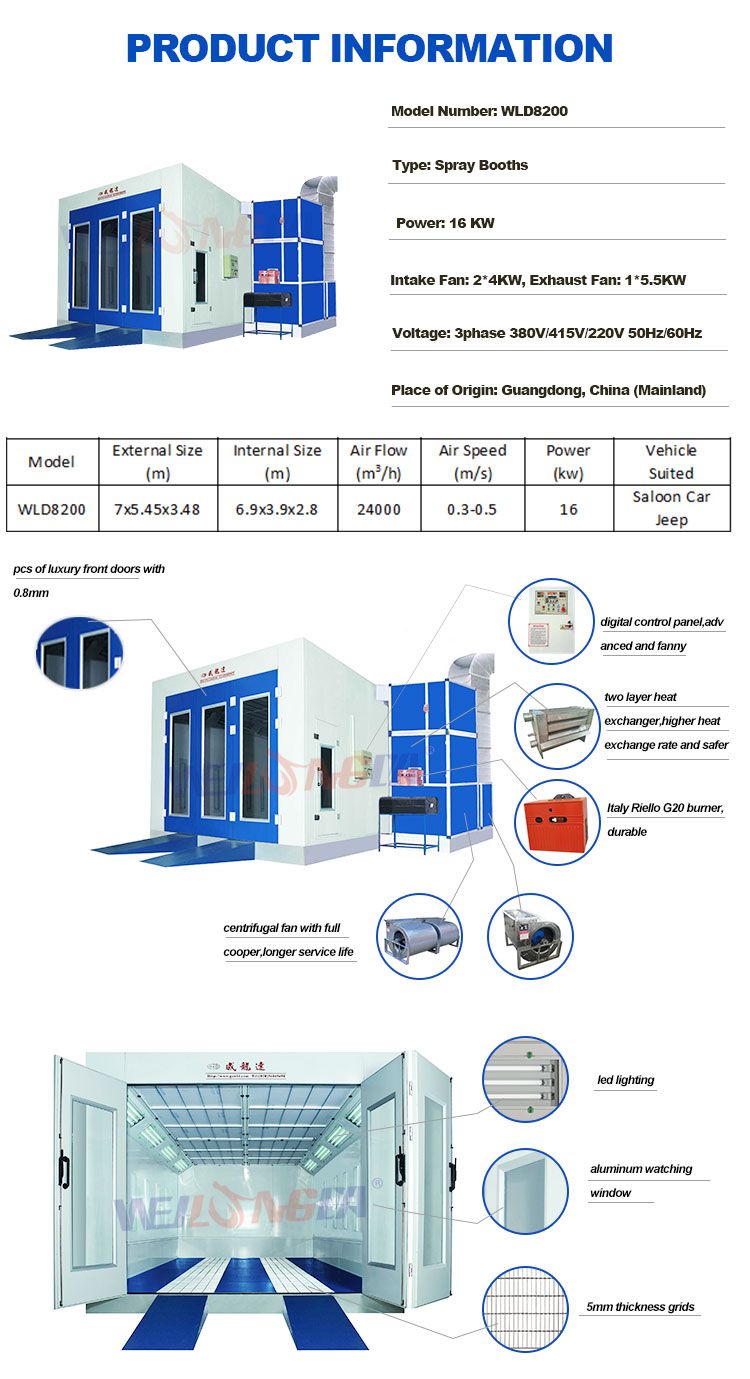

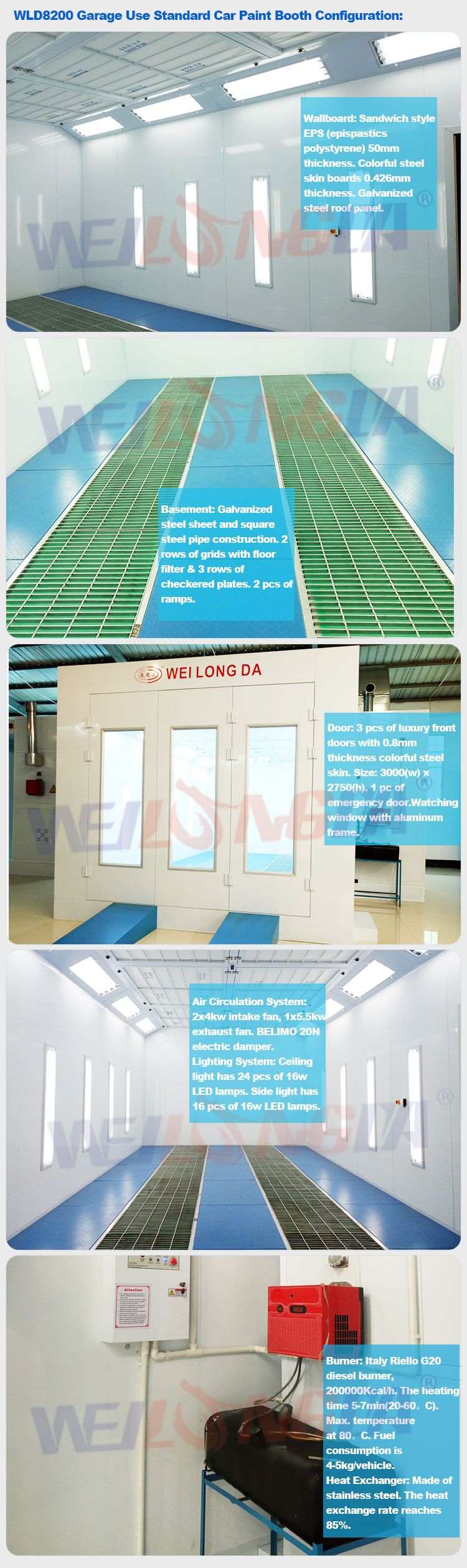

WLD8200(Standard Type) (CE) Auto Painting Booth :

Cabin System	Wallboard	Sandwich style EPS (epispastics polystyrene) 50mm thickness. Colorful steel skin boards 0.426mm thickness. Galvanized steel roof panel.
	Basement	Galvanized steel sheet and square steel pipe construction. 2 rows of grids with floor filter & 3 rows of checkered plates. 2 pcs of ramps.
Air Circulation System	Intake Fan	2x4kw intake fan. BELIMO 20N electric damper.
	Exhaust Fan	1x5.5 kw exhaust fan. Multi-layer fiberglass filter.
	Air Flow: 24000. m3 /h. Air Speed: 0.3-0.5m/s.
Air Purification System	Dual filtering structure. The primary filter can capture granules larger than 10μ m. Ceiling filter capture granules bigger than 5μ m. The air cleanliness in the working environment can reaches 98%.
Heating System	Burner	Italy Riello G20 diesel burner, 200000Kcal/h. The heating time 5-7min(20-60 ° C). Max temperature at 80° C. Fuel consumption is 4-5kg/vehicle.
	Heat Exchanger	Made of stainless steel. The heat exchange rate reaches 85%.
Lighting System	Ceiling light has 24 pcs of 36w lamps. Side light has 16 pcs of 36w lamps. 900 Lux.
Other	Spare parts holding bar at the rear.

Prod Model:	WLD8200
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Internal Size:	6.9X3.9X2.8m
External Size:	7X5.45X3.48
Certification:	CE
Airflow Direction:	Fully Undershot-type
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Condition:	New
Type:	Car Spray Baking Booth
Brand:	Weilongda

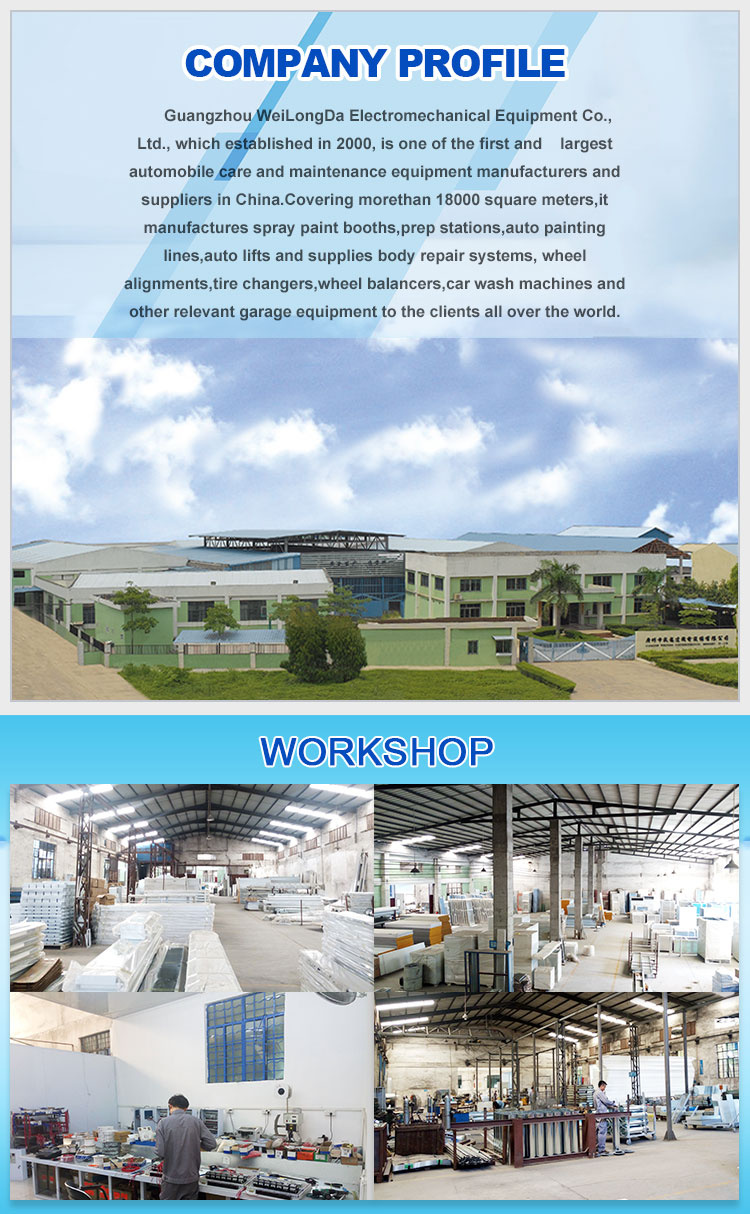

Guangzhou Weilongda Electromechanical Equipment Co., Ltd., which established in 2000, is one of the first and largest automobile care and maintenance equipments manufacturers and suppliers in China. It manufactures spray booths, preparation stations, auto lifts and supplies body repair systems, car wash machine, wheel alignments, tire changers, wheel balancers and other relevant garage equipment to the clients all over the world.

Quality First, Service Highest is the policy carried by all Weilongda members. Quality and safety control system is applied throughout the whole produce procedures, from design and the raw material purchasing to parts fabrication, from welding to painting, from the product's factory assembling to packing and loading. All the products are produced strictly according to ISO9001: 2008 systems and CE standards.

After years of investment and management, WEILONGDA is a famous brand now. It enjoys high reputations among domestic customers as well as clients from England, Ireland, Poland, Sweden, Russia, Nigeria, Ghana, South Africa, America, Australia, Japan and other Asian countries.

Please feel free to contact members of Weilongda and start a happy and win-win cooperation.

With your join, the future is better.
