Name: Wl-Uvl-700 Series Mobility Wheelchair Lifts for Bus
Brand: ibuyautoparts.com
SKU: 786327095
Availability: InStock
Rating: 4.4 (126 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

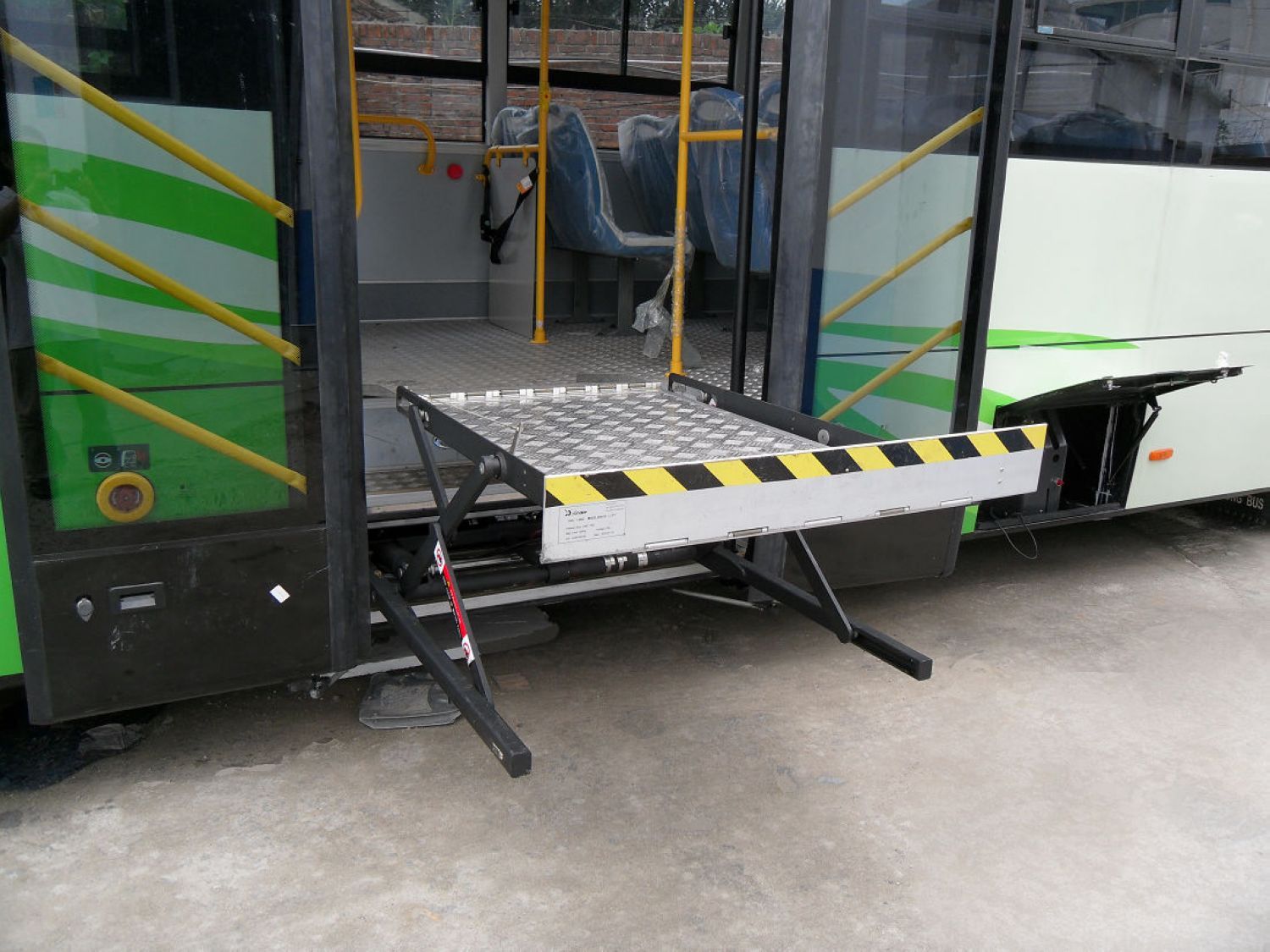

WL- UVL Series Wheelchair Lift for bus, offers an innovative solution to your mobility. With the lift mounted underneath the vehicle, it remains out of sight and out of your way until needed. This means easy access, a clear side view and maximum interior space.

The UVL Series lifts are electric in operation for both the in/out cycle and the outboard roll stop. The up/down cycle is hydraulic in operation. All functions are controlled by the standard hand-held control or the optional remote control.

The UVL Series is designed for installation at the side door of domestic full-size vans, buses and coaches. Installation of the UVL requires modification of the vehicle - consult your Dealer for details.

Advantages:

Super thin compact design

Electric outboard rollstop and automatic inboard rollstop

No-skid aluminum honeycomb platform

Powerful hydraulic pump ensures smooth, stable operation for heavy wheelchairs

Dual lifting arms are activated hydraulically, providing a stable and strong lifting environment.

Side handrails (Option), for increased comfort and security

Sound and flash light alarm during operation of platform

Built in manual backup system

Model	Voltage	Motor power	Pressure	Cylinder diameter&stroke
UVL-700/1300 /1600	12V/24V	0.8Kw	2500Psi	Φ60X70 unidirectional operation

Max lifting load	Max lifting height	Voltage	Len & width of platform
300 Kg	700 -1900mm	12/24 V	7511220/7511297 741*1445mm

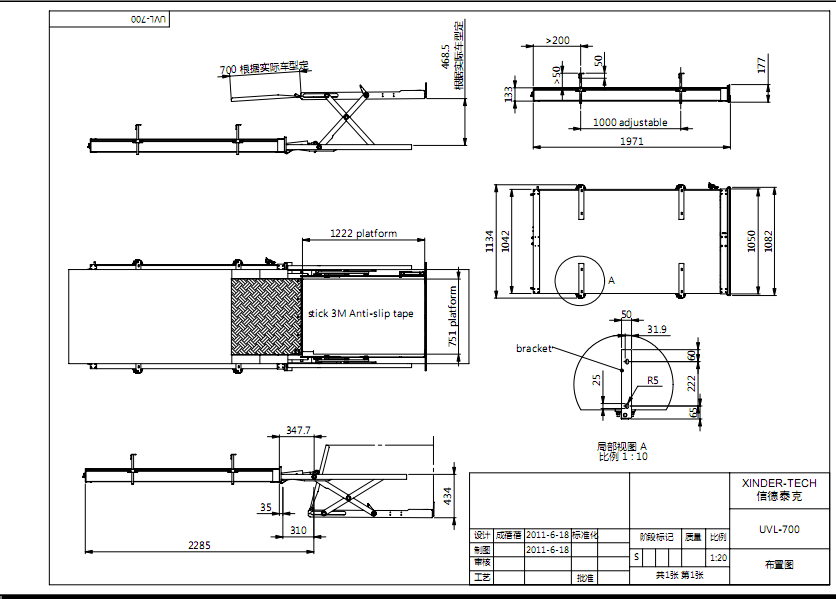

Prod Model:	WL-UVL-700
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Profile Dimention:	19401134178
Platform Dimention:	1222*751
Max. Lifting Height:	900 mm
Net Width Of Door:	≥1100
Electric System:	12V / 24V
Max. Loading Capacity:	350 Kg
Operation:	Electric & Hydraulic & Manual
Certificate:	Ce
Certification:	ISO
Design:	Two Post
Lifting Capacity:	350kg
Brand:	Xinder

Located in Changzhou New North District, Xinder-Tech Electronics (original Xinder Electronics) specializes in designing, manufacturing and selling wheelchair ramps, wheelchair lifts, electric step, manual step, wheelchair restraint system, seat fixing system, manual driving system, electronic accelerator pedal and other disabled products.

Xinder-Tech is the leader company of this line in China, and our products have taken up 90% of inner market. Meanwhile, our products has been exported to may countries, such as France, Italy, New Zealand, Finland, Brazil, Poland, Costa Rica, Korea, Australia, Malaysia, Bulgaria, Turkey, Israel, Philippines, Iran, India, South Africa and so on. Service includes R&D of product, manufacture, system debugging, on-site field visit to customer. Main engineers occupy 40% of staffs, with good experience, and they have been professionally and systemically trained in America, Italy, Malaysia and Brazil.

There are over 3000 ramps used for the Beijing Olympics, over 700 ramps exported to Korea. 100 PCS of WL-UVL wheelchair lift, about 500 PCS of electric wheelchair ramp and more than 1000 sets of wheelchair tie down system to Guangzhou Asia Game.

Our goal is to provide the best solutions for customer's requirements.

Xinder-Tech is an ISO 9001: 2016 compliant company. Our WL-D series wheelchair lift, WL-UVL series wheelchair lift, WL-T series wheelchair lift and ES Series electric step have got CE certificate, and EWR series wheelchair ramp has passed the EMC test, wheelchair tie down system has passed test of ISO 10542-2.
