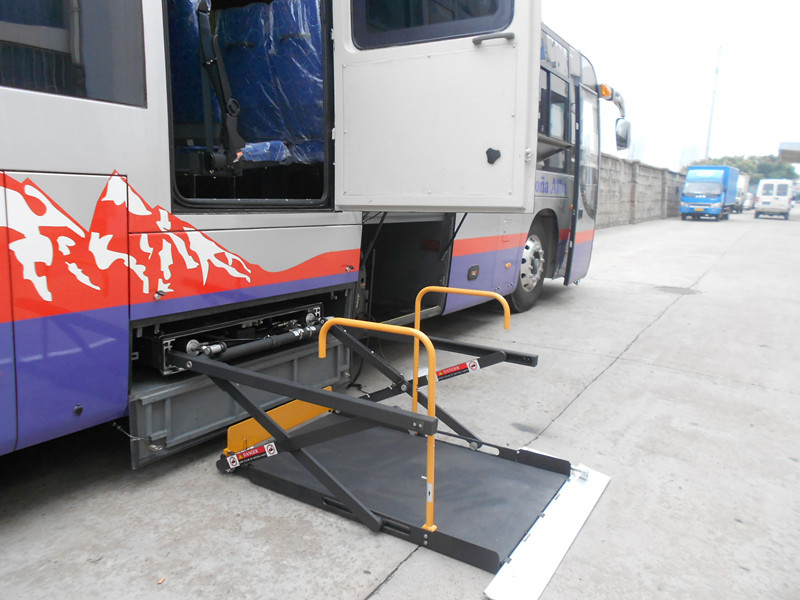

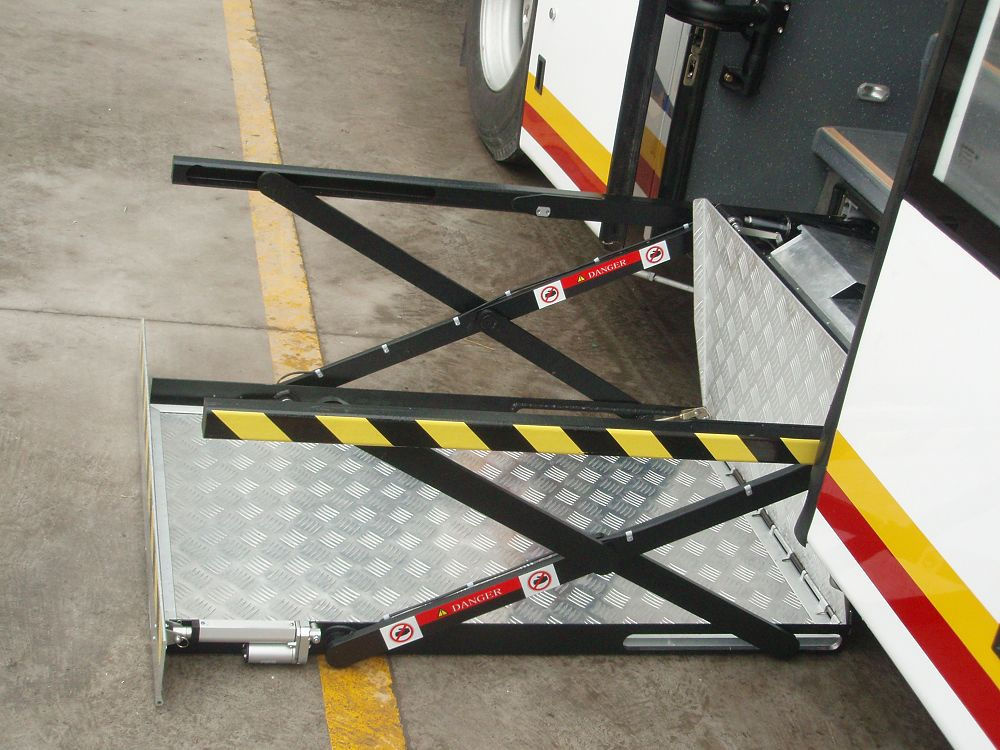

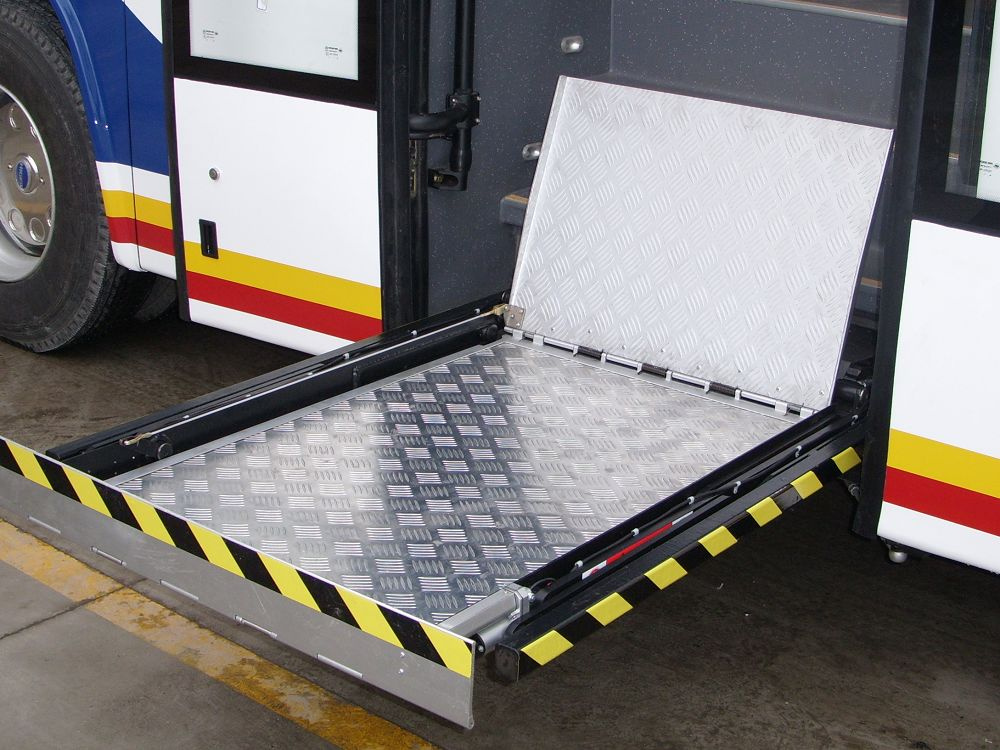

WL- UVL Series Wheelchair Lift for bus, offers an innovative solution to your mobility. With the lift mounted underneath the vehicle, it remains out of sight and out of your way until needed. This means easy access, a clear side view and maximum interior space.
The UVL Series lifts are electric in operation for both the in/out cycle and the outboard roll stop. The up/down cycle is hydraulic in operation. All functions are controlled by the standard hand-held control or the optional remote control.
The UVL Series is designed for installation at the side door of domestic full-size vans, buses and coaches. Installation of the UVL requires modification of the vehicle - consult your Dealer for details.
Advantages:
Super thin compact design
Electric outboard rollstop and automatic inboard rollstop
No-skid aluminum honeycomb platform
Powerful hydraulic pump ensures smooth, stable operation for heavy wheelchairs
Dual lifting arms are activated hydraulically, providing a stable and strong lifting environment.
Side handrails (Option), for increased comfort and security
Sound and flash light alarm during operation of platform
Built in manual backup systemModel | Voltage | Motor power | Pressure | Cylinder diameter&stroke |
UVL-700/1300 /1600 | 12V/24V | 0.8Kw | 2500Psi | Φ60X70 unidirectional operation |
Max lifting load | Max lifting height | Voltage | Len & width of platform |
300 Kg | 700 -1900mm | 12/24 V | 751*1220/751*1297 741*1445mm |
Ø Raise lift platform: motor drive, hydraulic function;
Ø Lower lift platform: pressure release valve of power unit control velocity of flow to provide gravity function;
Ø Raise platform manually: operate manual pump;
Ø Lower platform manually: rotate button of manual pressure release valve with specialized tool;
Ø Movement of front & rear rollstop: electric drive(front rollstop), mechanical drive (rear rollstop);
Ø Model & Capacity of hydraulic oil: L-HV46
Located in Changzhou New North District, Xinder-Tech Electronics (original Xinder Electronics) specializes in designing, manufacturing and selling wheelchair ramps, wheelchair lifts, electric step, manual step, wheelchair restraint system, seat fixing system, manual driving system, electronic accelerator pedal and other disabled products.
Xinder-Tech is the leader company of this line in China, and our products have taken up 90% of inner market. Meanwhile, our products has been exported to may countries, such as France, Italy, New Zealand, Finland, Brazil, Poland, Costa Rica, Korea, Australia, Malaysia, Bulgaria, Turkey, Israel, Philippines, Iran, India, South Africa and so on. Service includes R&D of product, manufacture, system debugging, on-site field visit to customer. Main engineers occupy 40% of staffs, with good experience, and they have been professionally and systemically trained in America, Italy, Malaysia and Brazil.
There are over 3000 ramps used for the Beijing Olympics, over 700 ramps exported to Korea. 100 PCS of WL-UVL wheelchair lift, about 500 PCS of electric wheelchair ramp and more than 1000 sets of wheelchair tie down system to Guangzhou Asia Game.
Our goal is to provide the best solutions for customer's requirements.
Xinder-Tech is an ISO 9001: 2016 compliant company. Our WL-D series wheelchair lift, WL-UVL series wheelchair lift, WL-T series wheelchair lift and ES Series electric step have got CE certificate, and EWR series wheelchair ramp has passed the EMC test, wheelchair tie down system has passed test of ISO 10542-2.
