Wl-D Series Mobility Wheelchair Lifts for Van and Minivan
Price: |
Negotiable/Piece |
Trade Terms: |
FOB,CIF,EXW |
Min Order: |
1/Piece |
Pay Type: |
T/T,Paypal,Western Union |
Introduce :

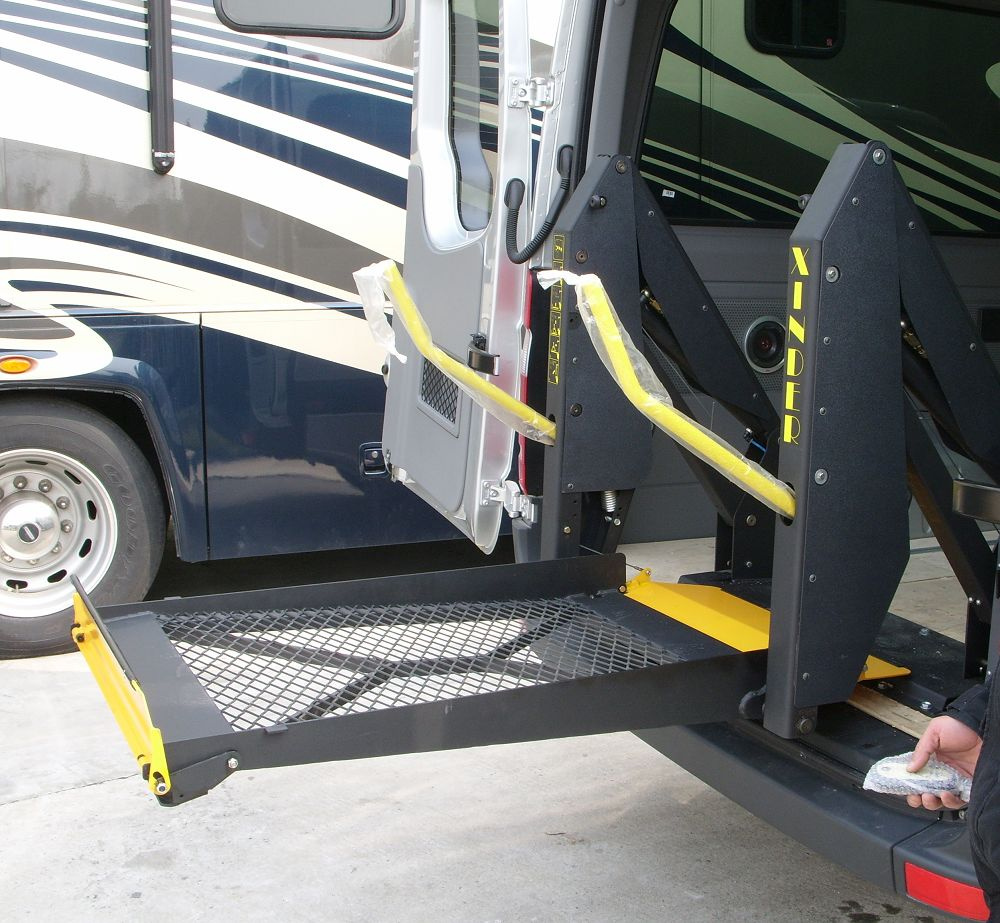

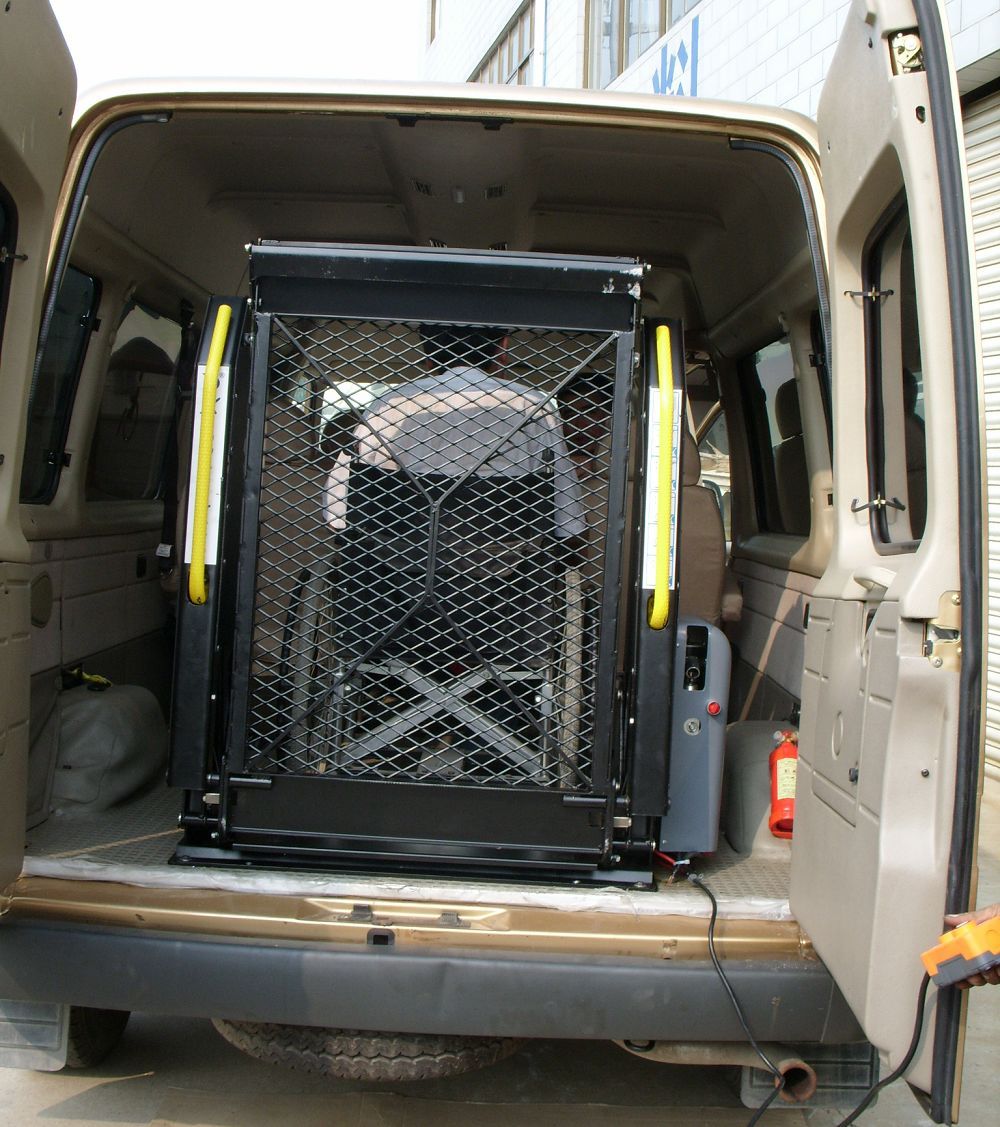

WL-D-880 wheelchair lift
The outomatic wheelchair lift offers you dependable accessibility while its trim, compact design maximizes valuable interior space. The lift aslo features a strong durable steel frame built to give you years of dependable service.
There are so many advantages of this product, such as automatic inboard and outboard rollstops, quietand smooth operation, welded all-steel frameare, built-in manual backup system, permanent no-lube bearings at all major pivot points, easy to maintain and so on.
Technical specification: Model | WL-D-880-1150 | WL-D-880S-1150 | WL-D-880U-1150 | WL-D-880-1250 | WL-D-880S-1250 | WL-D-880U-1250 |
Platform size | 1150*720 | 1150*720 | 1150*720 | 1250*820 | 1250*820 | 1250*820 |
overall width | 1135 | 1135 | 1135 | 1235 | 1235 | 1235 |
overall height | 1225 | 1225 | 1130 | 1225 | 1225 | 1130 |
overall length | 440 | 440 | 500 | 440 | 440 | 500 |
max lifting height | 880 | 880 | 880 | 880 | 880 | 880 |
Volt | 12-24V | 12-24V | 12-24V | 12-24V | 12-24V | 12-24V |
max working pressure | 14Mpa | 14Mpa | 14Mpa | 14Mpa | 14Mpa | 14Mpa |
loading capacity | 350KG | 350KG | 350KG | 350KG | 350KG | 350KG |
own weight | 134KG | 134KG | 134KG | 150kg | 150kg | 150kg |
Prod Model: |
WL-D -880 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Platform Size: |
1150*720 / 1250*820mm |
Loading Capacity: |
350kg |
Volt: |
12-24V |
Own Weight: |
134kg |
Max Lifting Height: |
880mm |
Packing Size: |
Wooden Case, 1.2*0.6*1.4m |
Operation: |
Electric (Hand Pump Backup) |
Working Temperature: |
-20~+50 |
Operated By: |
Remote Control |
Type: |
Double Cylinder Hydraulic Lift |
Certification: |
ISO |
Design: |
Two Post |
Lifting Capacity: |
350kg |
Brand: |
Xinder |
Located in Changzhou New North District, Xinder-Tech Electronics (original Xinder Electronics) specializes in designing, manufacturing and selling wheelchair ramps, wheelchair lifts, electric step, manual step, wheelchair restraint system, seat fixing system, manual driving system, electronic accelerator pedal and other disabled products.
Xinder-Tech is the leader company of this line in China, and our products have taken up 90% of inner market. Meanwhile, our products has been exported to may countries, such as France, Italy, New Zealand, Finland, Brazil, Poland, Costa Rica, Korea, Australia, Malaysia, Bulgaria, Turkey, Israel, Philippines, Iran, India, South Africa and so on. Service includes R&D of product, manufacture, system debugging, on-site field visit to customer. Main engineers occupy 40% of staffs, with good experience, and they have been professionally and systemically trained in America, Italy, Malaysia and Brazil.
There are over 3000 ramps used for the Beijing Olympics, over 700 ramps exported to Korea. 100 PCS of WL-UVL wheelchair lift, about 500 PCS of electric wheelchair ramp and more than 1000 sets of wheelchair tie down system to Guangzhou Asia Game.
Our goal is to provide the best solutions for customer's requirements.
Xinder-Tech is an ISO 9001: 2016 compliant company. Our WL-D series wheelchair lift, WL-UVL series wheelchair lift, WL-T series wheelchair lift and ES Series electric step have got CE certificate, and EWR series wheelchair ramp has passed the EMC test, wheelchair tie down system has passed test of ISO 10542-2.
XINDER works in many fields:
1 Electric & Manual Wheelchair Ramp
2 Wheelchair Lift
3 ES Series Electric Step
4 Manual Step
5 Wheelchair Restraint System
6 Manual Control System
7 Electronic Accelerator Pedal
8 Handicapped Electric car
9 Seat Fixing System
