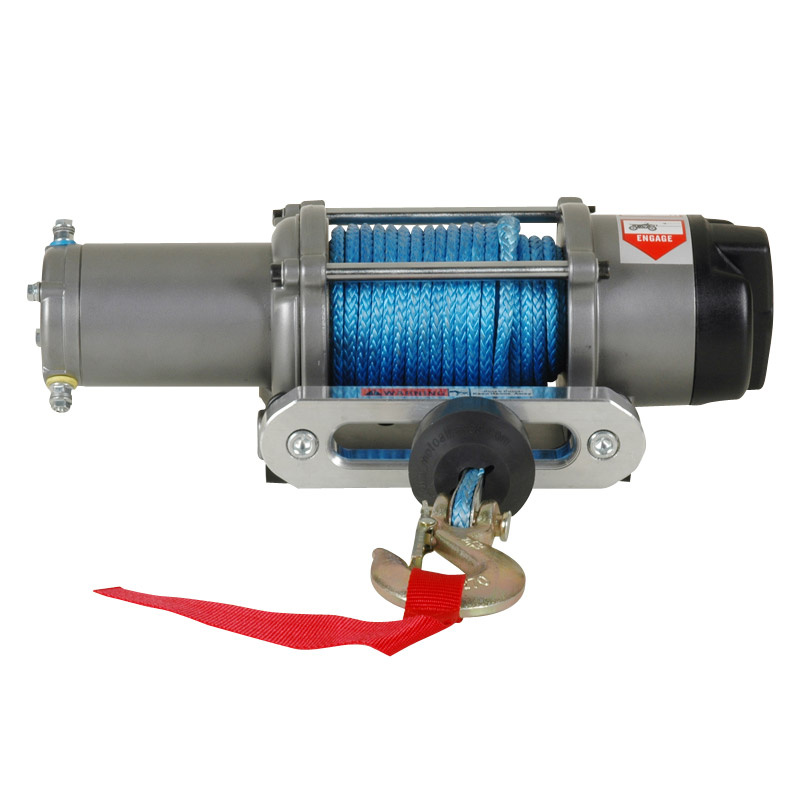

UTV Electric Winch with 4000lb Pulling Capacity (lengthen style)

Name: UTV Electric Winch with 4000lb Pulling Capacity (lengthen style)
Brand: ibuyautoparts.com
SKU: 712775265
Availability: InStock
Rating: 4.4 (44 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Specifications:
All Metal Drivetrain.
Sealed Drivetrain & Motor. Twelve sealed areas protect
The winch from water and contaminant infiltration.
1) Rated Line Pull: 4000lbs. (1, 814kgs) single-line
2) Motor: 12V DC, 1.6HP (1.2kw) permanent magnet
3) Control: Mini-rock switch and remote control, 10ft. (3.0m) lead
4) Geartrain: 3-stage planetary
5) Gear Ratio: 136: 1
6) Clutch(freespooling): Sliding Pin and Ring Gear
7) Brake: Automatic mechanical brake is available.
8) Drum Diameter/Length: 2.0"/4.7" (51mm/119mm)
9)Synthetic Rope: 66', 6.3mm diameter (20m, 6.3mm diam)
10) Cable Management: Aluminum hawse fairlead
11) Recommended Battery: 500 CCA minimum
12) Battery Leads: Color coded wiring
13) Duty Cycle: Intermittent
14) Mounting Bolt Pattern: 3.0 X 6.6" (76 X 168mm)
15) Finish: Black or grey

PERFORMANCE DATA
Line Pull Lbs.(Kgs.)	Line Speed FT. / min (M/min.)	Motor Current	Pull by Layer layer / Lbs (Kgs.)
0	26 (7.9)	31	1 / 4000 (1818)
500	20 (6.1)	70	2 / 3520 (1600)
1000	16 (4.9)	106	3 / 3098 (1408)
1500	14 (4.3)	141	4 / 2726 (1239)
2000	11 (3.4)	175
2500	8 (2.4)	224
3000	7 (2.1)	245
3500	6 (1.8)	268
4000	4 (1.2)	308

Prod Model:	GXT4.0Li
Markets:	North America,Oceania,Eastern Asia,Western Europe
Type:	Electric Winch
Power Type:	Permanent-magnet DC
Pull Direction:	Forward
Electric Winch Model:	ATV
Working Voltage Of Electric Winch:	Low Voltage
Applicable Environment:	Mountain Road
Certification:	CE
Brand:	Great
