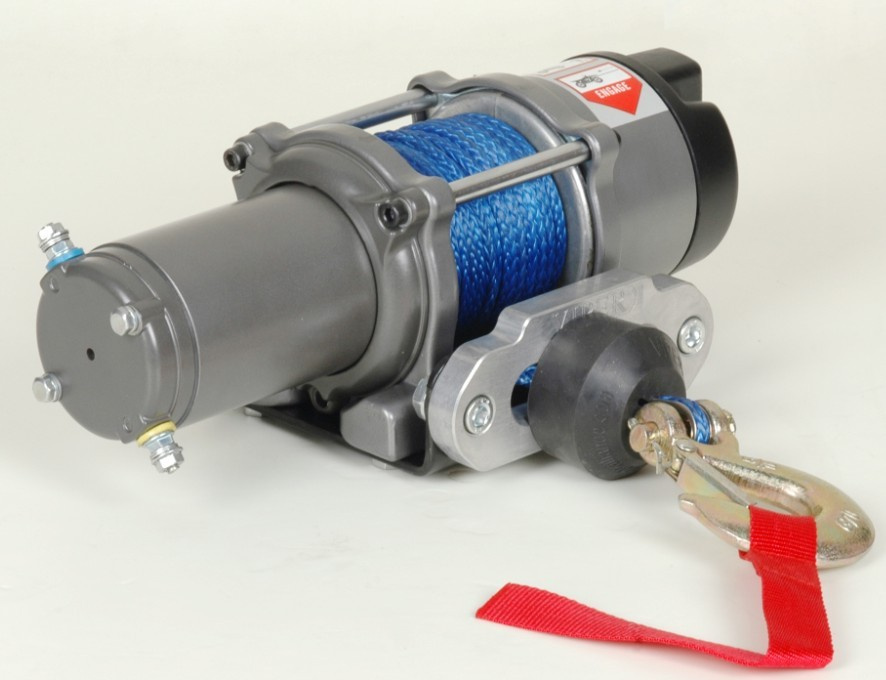

ATV Electric Winch with 3500lb Pulling Capacity (GXT3.5)

Name: ATV Electric Winch with 3500lb Pulling Capacity (GXT3.5)
Brand: ibuyautoparts.com
SKU: 712359625
Availability: InStock
Rating: 4.4 (75 reviews)

Price:	US $ 137-140/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Specifications:
All Metal Drivetrain.
Sealed Drivetrain & Motor. Twelve sealed areas protect the winch from water and contaminant infiltration.
1) Rated Line Pull: 3500lbs. (1, 587kgs. ) single-line
2) Motor: 12V DC, 1.4HP (1.1kw) permanent magnet, Sealed
3) Control: Mini-rock switch and remote control, 12ft. (3.7m) lead
4) Geartrain: Sealed, all metal 3-stage planetary
5) Gear Ratio: 136: 1
6) Clutch(freespooling): Sliding pin and ring gear
7) Brake: Automatic mechanical brake
8) Drum Diameter/Length: 2.0"/2.9" (51mm/75mm)
9) Wire Rope: 40', 15/64"diameter (12.25m, 5.8mm diam)
10) Fairlead: Roller 4-way
11) Recommended Battery: 500 CCA minimum
12) Battery Leads: Color coded wiring
13) Duty Cycle: Intermittent
14) Mounting Bolt Pattern: 76 X 124mm
15) Finish: Black or grey

**PERFORMANCE DATA**
Line Pull Lbs. (Kgs. )	Line Speed FT. / min (M/min. )	Motor Current	Pull by Layer Layer / Lbs (Kgs. )
0	26 (7.9)	31	1 / 3500 (1587)
500 (227)	20 (6.1)	70	2 / 3080 (1397)
1000 (455)	16 (4.9)	106	3 / 2710 (1229)
1500 (688)	14 (4.3)	141	4 / 2380 (1079)
2000 (907)	11 (3.4)	175
2500 (1134)	8 (2.4)	224
3000 (1361)	7 (2.1)	245
3500 (1587)	6 (1.8)	268

Product Features:
1)Total aluminum alloy shell. All metal, high precision, high strength of the 3 planetary gear group
2)As many as 12 seals to prevent water or sludge into the motor and gear box
3)Shot distance clutch control panel
4)Long-life sealed control switch
5)Full sealed large current contactor
6)Install four power wire convenient
7)Hot DIP galvanized steel for air level
8)Include components: Mounting plate, roller fairlead, G70 hook, contactor, handle switch, cabled remote switch, wire sets, hardware, Handsaver strap, Sheath of Rubber, ribbon, instruction, environmental protection lining packing, colour box etc
9)Optional componets: Wireless remote control, 4T snatch, safe rubber line stopper, winch cover, ATV mounting
10)Small volume, light weight, strong tension etc. Suitable for small SUV, beach all terrain vehicle of JIMNY and light vehicle outdoor operation

Prod Model:	GXT3.5
Markets:	North America,Oceania,Eastern Asia,Western Europe
Type:	Electric Winch
Power Type:	Permanent-magnet DC
Pull Direction:	Forward
Electric Winch Model:	ATV
Working Voltage Of Electric Winch:	Low Voltage
Applicable Environment:	Mountain Road
Certification:	CE
Brand:	Great
