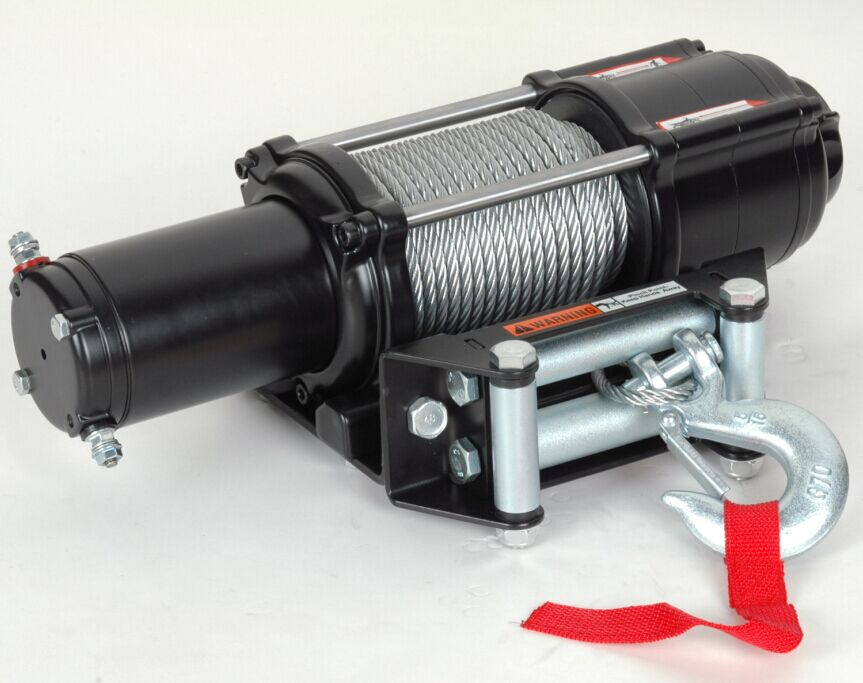

DC 12V UTV Electric Winch with 5000lbs Pulling Capacity

Name: DC 12V UTV Electric Winch with 5000lbs Pulling Capacity
Brand: ibuyautoparts.com
SKU: 766730915
Availability: InStock
Rating: 4.9 (26 reviews)

Price:	US $ 135.0-136.0/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Specifications:

All metal drivetrain
Sealed drivetrain and motor: twelve sealed areas protect the winch from water and contaminant infiltration

1)Rated line pull: 5000lbs (2,268kgs) single-line
2)Motor: 12V DC, 1.95hp (1.45kW) permanent magnet
3)Control: mini-rock switch and remote control, 10ft (3.0m) lead
4)Geartrain: all-metal high-strength 3-stage planetary, sealed
5)Gear ratio: 136:1
6)Clutch (freespooling): cam activated
7)Brake: automatic mechanical brake
8)Drum diameter/length: 2.0"/2.9"(51mm/75mm), high-strength
9) Wire rope: 55', 15/64"diameter (16.8m,6.0mm diameter)
10) Fairlead: roller 4-way
11)Recommended battery: 500 CCA minimum for winch
12)Battery leads: four color wire
13)Duty cycle: intermittent
14)Finish: black or grey

Product features:
1)Total steel shell, all metal, high precision, high strength of
   the 3 planetary gear group
2)As many as 12 seals to prevent water or sludge into the motor and
   gear box
3)Long-life sealed control switch
4)Full sealed large current contactor
5)Install four power wire convenient
6)Hot dip galvanized steel for air level
7)Include components: mounting plate, roller fairlead, G70 hook, contactor, handle switch, cabled remote switch, wire sets, hardware, Handsaver strap, sheath of rubber, ribbon, instruction, environmental protection lining packing, colour box
8)Optional components: wireless remote control, 4T snatch, safe rubber
   line stopper, winch cover, ATV mounting
9)Small volume, lightweight, strong tension, suitable for small
   SUV, beach all terrain vehicle of JIMNY and light vehicle outdoor
   operation

PERFORMANCE DATA
Line Pull Lbs.(Kgs.)	Line Speed FT. / min (M/min.)	Motor Current	Pull by Layer layer / Lbs (Kgs.)
0	26 (7.9)	31	1 / 5000 (2268)
500	20 (6.1)	50	2 / 4402 (1997)
1000	16 (4.9)	86	3 / 3873 (1757)
1500	14 (4.3)	121	4 / 3408 (1546)
2000	11 (3.4)	155
2500	8 (2.4)	204
3000	7 (2.1)	225
3500	6 (1.8)	248
4000	4 (1.2)	288
5000	2 (0.6)	330

Prod Model:	MRT5.0Li
Markets:	North America,Oceania,Eastern Asia,Western Europe
Type:	Electric Winch
Power Type:	Permanent-magnet DC
Pull Direction:	Forward
Electric Winch Model:	ATV
Working Voltage Of Electric Winch:	Low Voltage
Applicable Environment:	Swamp
Certification:	CE
