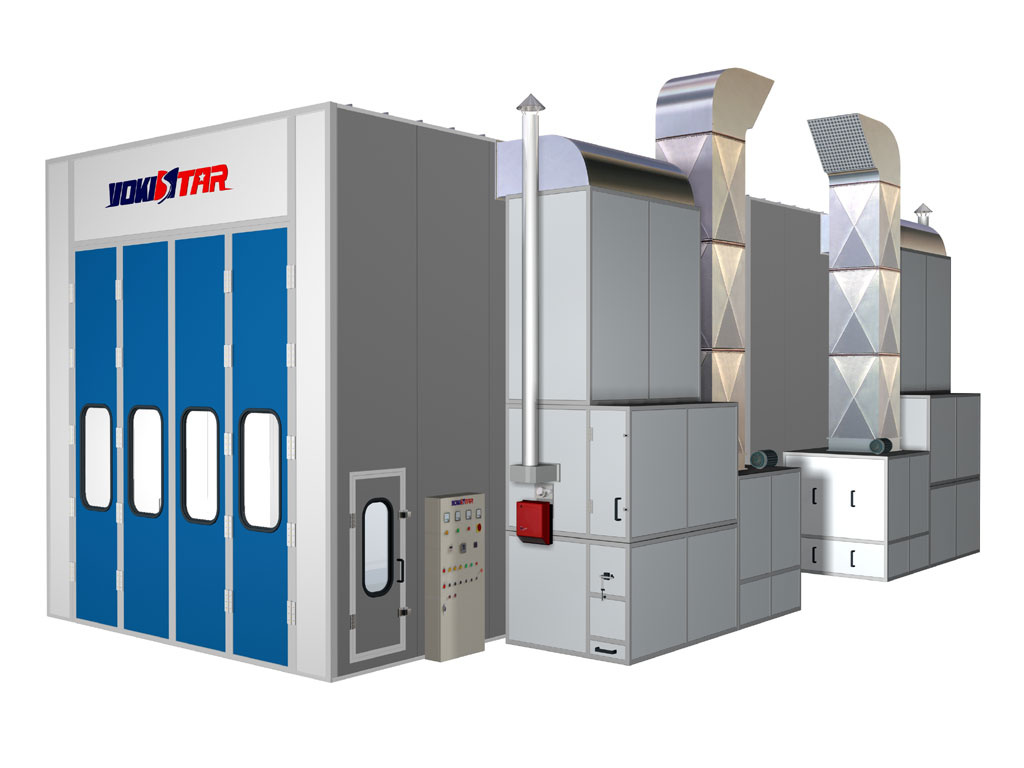

Truck Downdraft Auto Maintenance Equipment Spray Paint Booth
Price: |
US $ 27800-29000/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T |
Prodcut details**Model:YS-15-50
**Inside dimention:15000*5000*5000mm L*W*H
**Any Size Requirements Can Be Met.Custom Design is key advantage.
**Applied for bus painting and baking

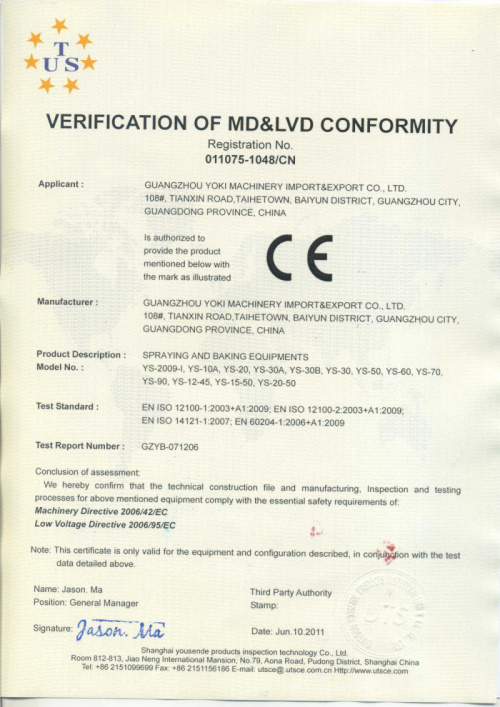

**CE certificate approval
Painting and baking function.A. During painting, spray booth can offer a sealed environment with cleanness, safety and excellent lighting for the painting operation of all kind of components and different products.
B. During baking, drying time, temperature and humidity in spray booth can be set according to different paint materials to achieve a perfect high-quality spraying and baking for your cars.
C. Spray booth makes spraying and baking operation with no limits of all kinds of whether, thus ensuring physical fitness of operators and absolute safety of equipments.IntroductionSpray booth comes out as it is seasoned with spraying for whole surface of modern automobiles, part repair and baking which can provide operation room of cleanness, sanitation for above tasks. The whole set equipment has the function of ventilation, air purge, drying, disposing exhaust gas and so on which meets basic requests of auto surface disposal. The equipment is made up of room body, lighting unit, intake and exhaust air system, heating system, air purge system, exhaust gas disposal system and control system.Spray Booth Conveying and StorageAs spray booths are in big size, they're conveyed in bulk while loading and unloading. The parts in frame should be loaded and unloaded by fork vehicles while the small parts are conveyed by manpower. Be noticed to make sure that the parts are not damaged and dilapidated in the loading and unloading process.The finished parts of spray booth are usually stored in the finished products warehouse, and marked on the outside packages for checking before delivery. After being sent to the destination, all the parts should not be put in the open air but in store house to prevent from rusting and oxidized by the moisture.WarrantyThe goods are guaranteed for 24 months from the date of receipt, but the filters and lamps are not guaranteed. It cannot be applied for damages caused by negligence of operations or mishandling of the machine.YOKISTAR ProductsHigh quality and advanced technology are applied in YOKISTAR product ranges, involving automotive spray booth, bus and truck spray booth, prep station, mixing room, bench spray booth, open face spray booth and infrared curing lamp.
Inside dimension | 15000 × 5000 × 5000 mm ( L × W × H ) |
Outside dimension | 15144 × 6896 × 5600 mm ( L × W × H ) |
Pit | 2 rows of pits in the ground for exhaust air, dimension of each pit is 13850 × 760mm (L × W), with galvanized grilles made by twisted steel and flat bar above. |

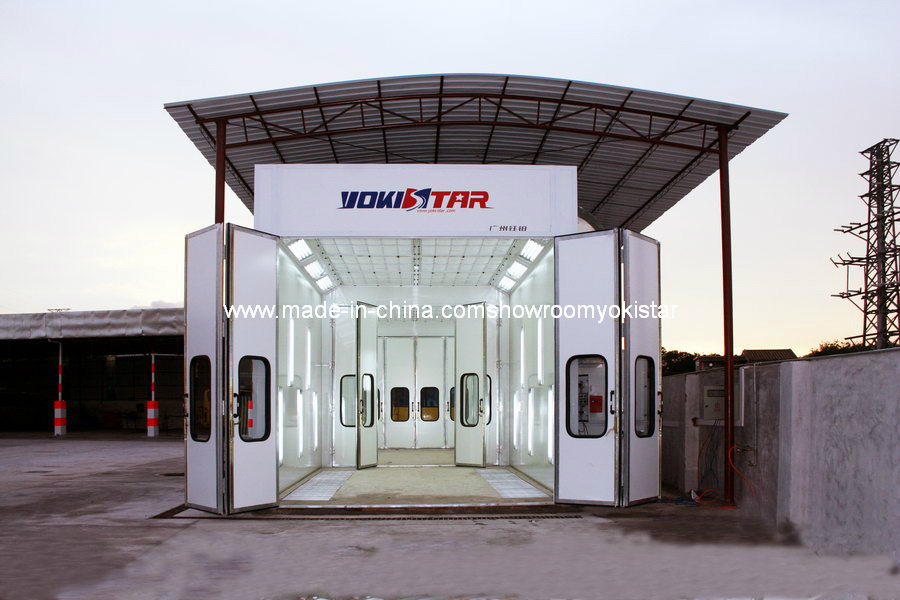

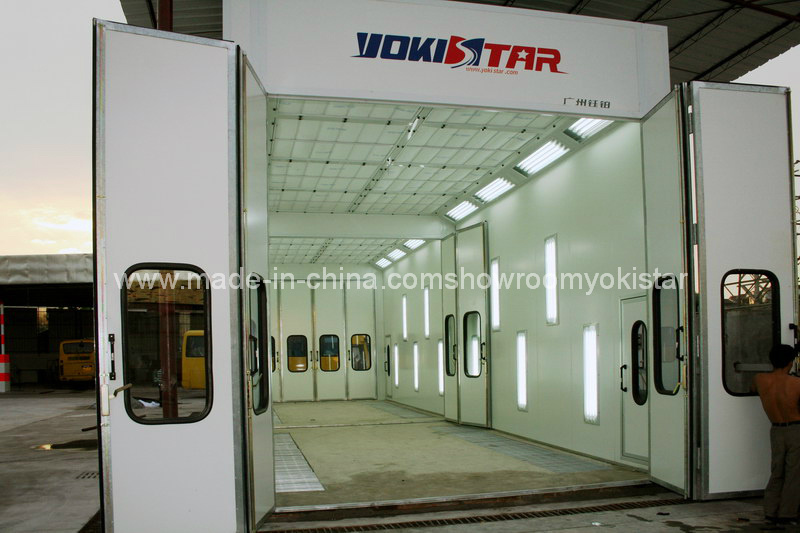

Main door | Folding door, 4-folds, 4000× 4500mm(W× H), galvanized steel frame, with polystyrene(EPS) inside, colour: blue. |
Escape door | 2 units, , 800 × 2000 mm (WXH), colour: white. |
Room body | Profiled bar beams in the roof to strengthen the room body; wall panel thickness: 70mm, width: 1150mm, tongue and groove structure, 0.476mm colour steel with polystyrene(EPS) insulation inside, colour: white. |

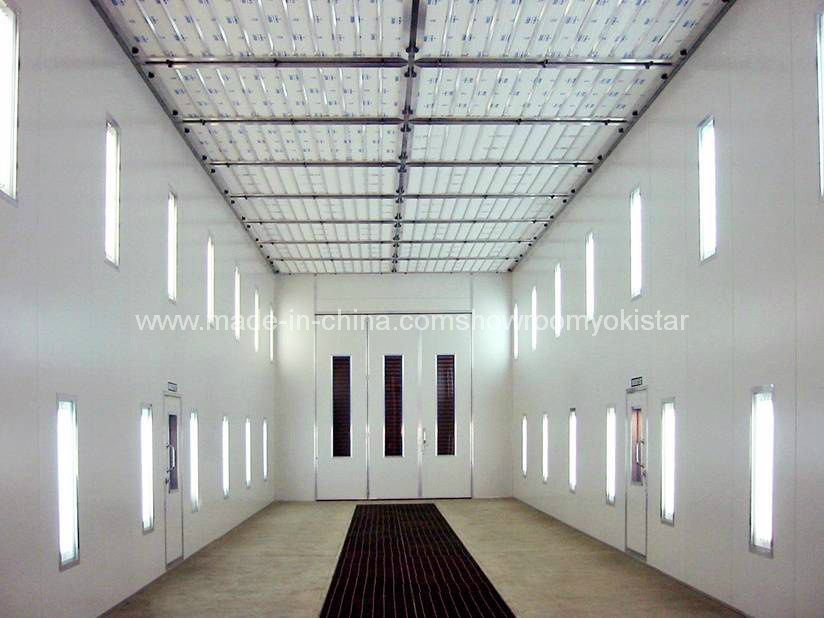

Lighting system | Ceiling Lights: 18Units× 4Pcs=72Pcs× 36W, with electronic ballasts. Side Lights: 22Units× 4Pcs=88Pcs× 36W, with electronic ballasts, vertically set, up and down interleaving installation. |
Generator setting | Intake air from side upper direction, exhaust air from back upper direction, quadrate steel frame, outside is white coated steel, inside is galvanized steel , filled with heat preservation material in the middle. |
Intake and exhaust air system(2 units) | 2 units, in total 4 × 7.5KW double-intake centrifugal fans for intake air, model YDW4.5M, air capacity is 21000m 3 /h for each fan; |
2× 11KW double-intake centrifugal fans for exhaust air, with motor outside, belt-drive, model TAE-710H, air capacity is 36000m3/h for each fan. Equip manual dampers for exhaust air. |
Heating system(2 units) | 2 units RIELLO RG5S oil burners, heating productivity: 520000 Kcal/h, stainless steel heat exchanger, 2pcs pneumatic dampers actuate from spraying to baking cycle. |
Filtering system | re-filter, high efficiency filter(ceiling filter), exhaust fiberglass fiter, activated carbon filter. |
Roof Plates | 50mm thick EPS heat preservation panels. |
Control box | Spraying, heat spraying, baking, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, ampere meter, voltmeter, hours meter, temperature limit controller, pressure gauge. Exhaust star-delta motor start. |
Prod Model: |
YS-15-50 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Ventilation: |
Downdraft Airflow Way |
Air Intake: |
4 × 7.5kw Double-Intake Centrifugal Fans |
Air Exhaust: |
2× 11kw Double-Intake Centrifugal Fans |
Heating: |
2 Units Riello Rg5s Diesel Burners |
Voltage: |
1X220V, 3X380V, Your Special Voltages Are Accepted |
Optional Colour: |
White, Blue, Orange and Red |
Port: |
Huangpu Port or by Your Order |
Main Products: |
Spray Booth, Prep Station, Infrared Curing Lamps |
Certification: |
CE |
Heating Mode: |
Diesel |
Paint Mist Treatment: |
Dry-type |
Condition: |
New |
Type: |
Spray Booth |
Substrate: |
EPS Insulation Panel |
Brand: |
Yokistar |
Airflow Direction: |
Downdraft Airflow Way |
Guangzhou YOKISTAR Co., Ltd. (YOKI STAR for short) is specialized in spray booths, infrared lamps, prep stations, equipments for industrial painting, high temperature drying which can supply design as well as manufacturing service.
Located in BaiYun district of GuangZhou city, YOKI STAR occupies 25000 square meters area, owns around 200 employees which is convenient to the new Baiyun airport (20 minutes by car) and the railway station (30 minutes).
As a professional designer and manufacturer with target in 'To be the best, but not to be the biggest', YOKI star succeeds to international advanced design standards and manufacturing technologies, follows international quality management and control system, produces first-class professional products of the world and shares with friends all over the world.
The products of YOKISTAR can be used widely for automobile maintenance, vehicles manufacturing, machinery manufacturing as well as trains, planes and furniture. Our products are popular in European Union, North America, South America, Middle East, East and South Asia, Africa, and have established completely sales system all around the world. YOKISTAR aims to be the spraying and baking equipments manufacturer with leading brand in the world, and to become modernized enterprise with international competitive advantage.
YOKISTAR is an ideal cooperator who deserves your reliance.
