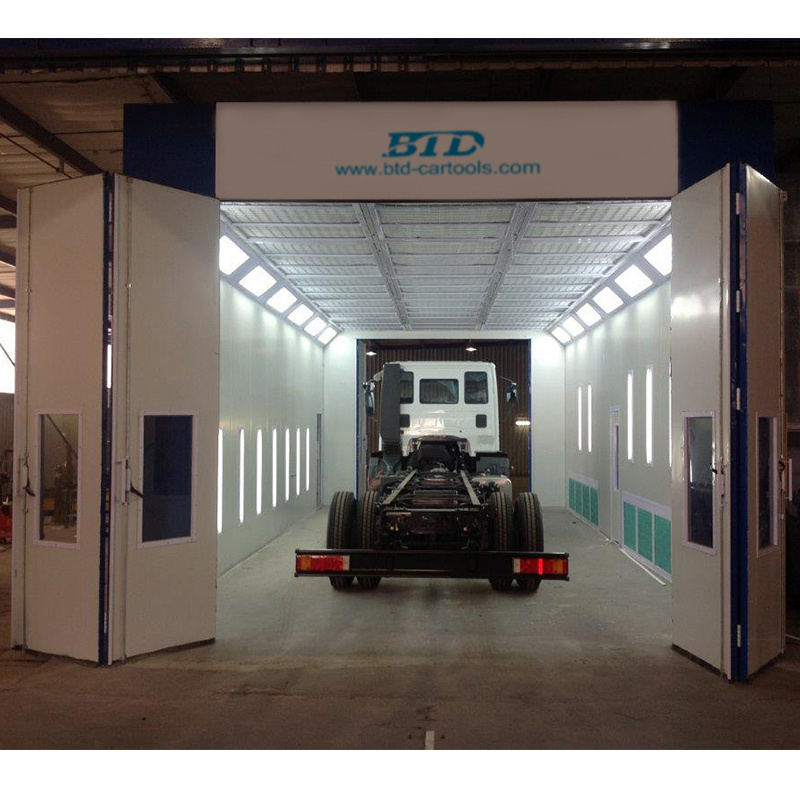

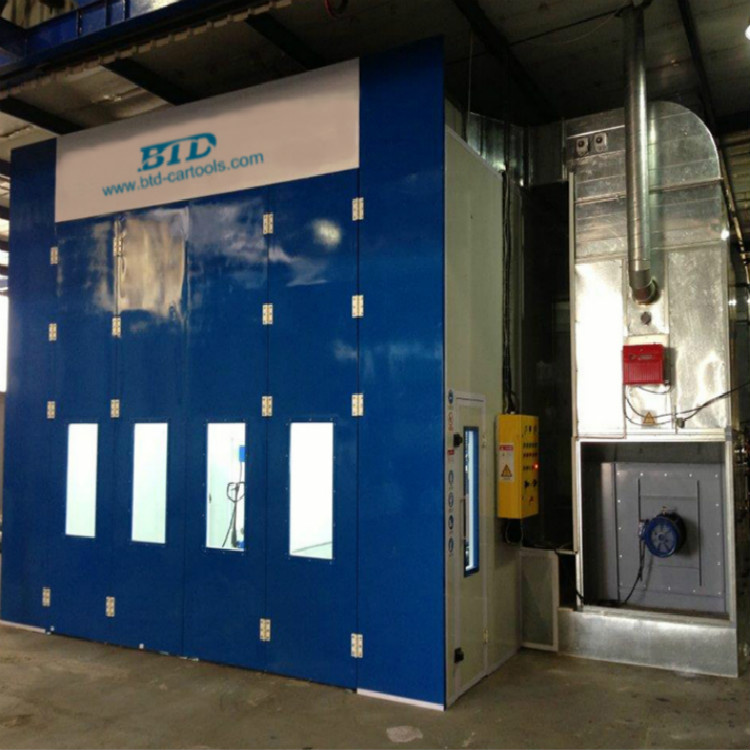

Truck Cabinet Spray Booth Large Standard Auto Paint Booth
1. CE approved
2. German Technology
3. Suitable for painting truck
4. Spray booth professional manufacturer
5. Factory price, energy saving
6. High quality, best sell service, timely delivery
7. We can meet at customer's special requirement
Model: BTD truck spray booth| Model | 17M truck spray booth |
| Booth Dimensions | |
| -Internal Size(L× B× H) | 17000× 5000× 5000 mm |
| -External Size(L× B× H) | 17120× 7200× 8150mm |
| Foundation and Floor | |
| Loading Capacity of Galvanized Grating | Without basement, plenum chamber on the two sides of booth, Size: (7000+7000)× 660× 1000(L× B× H) |
| Surface Area of Rear Exhaust Box | 25M² |
| Metal Basement | NO |
| Drive-in Ramps | NO |
| Wall and Door | |
| Steel Wall | 60mm thickness rock wool double wall construction |
| Roof Panal | 50mm thickness rock wool double wall construction |
| 4Folded Entrance Door With Safety Glass Window | 2 sets, entrance door size: 4200× 4500 mm(B× H)
(one set is filled in the middle of booth to separate the booth for two rooms) |
| Operator' s Door With Safety Glass Window | 2 units, 800× 2000 mm(B× H) |
| Lighting | 240V |
| Ceiling Lightings | 20 units each unit 4× 36 W, total 2880W, IP54(each 10units for front and back) |
| Side Lightings | 16units each unit 2× 36 W, total 864W, IP54(each 8units for front and back) |
| Brightness | > 1000 LUX |
| Filtration | |
| Prefilters | Pocket filter |
| Ceiling Filters | F5 grade filter |
| Exhaust Filters | Bottom G2 grade fiberglass, paint-stop-filter |
| Ventilation System | Fill on the top of booth |
| Direct Drive Motor (Fresh Air) | 2× 11 kW, 970rpm, 415V, 50Hz motor CE |
| Direct Drive Motor (Exhaust Air) | 2× 11 kW, 970rpm, 415V, 50Hz CE |
| Fan Capacity | 64000m³ /h |
| Air Flow Speed | +/- 0.22m/s at empty booth |
| Heating System | Fill on the top of booth |
| Heating Exchanger | Stainless Steel 1Gr18Ni9Ti (SUS304) |
| Heating Exchange Capacity | 200KW (260000 Kcal/h) |
| Max. Drying Temperature | 80 ° C |
| Heating time | 8-10mins (from 20° to 60° C) banking condition |
| Heating Type | Gas burner RS5 (260000Kcal/H) |
| Control Box | |
| Control system | Spraying, warm-up spraying, baking, lighting, emergency stop |
| PLC | yes |
| Overpressure Manometer | yes |
| over-temperature alarm | yes |
