Low Price Auto Painting Oven Car Painting Chamber
1. CE approved
2. German Technology
3. Professional European-style blower system
4. Spray booth professional manufacturer
5. Factory price, energy saving
6. High quality, best sell service, timely delivery
7. We can meet at customer's special requirement
Model: BTD 7500
| Outside Size: (mm) | 7110x5570x3810 mm (LxWxH) | Inside Size: (mm) | 7000x4000x2800 mm (LxWxH) |
| Basement | Basement | Full metal foundation, full grids, the grids are suppressive type of steel grating instead of traditional twisted steel for the cross bar steel grating. The biggest features for it are beautiful, durable and better force bearing. |
| Surface area of foundation | 27 M² (full grids) |
| Metal basement | 350mm height, the ventilation effect is better than traditional spray booth. |
| Drive-in Ramps | 3Units, each size: 2000x1030mm, diamond plate construction |
| Foundation and Floor | Wallboard and Roof Panel | Adopt high quality double construction fireproof insulation EPS panel, thickness: 50mm |

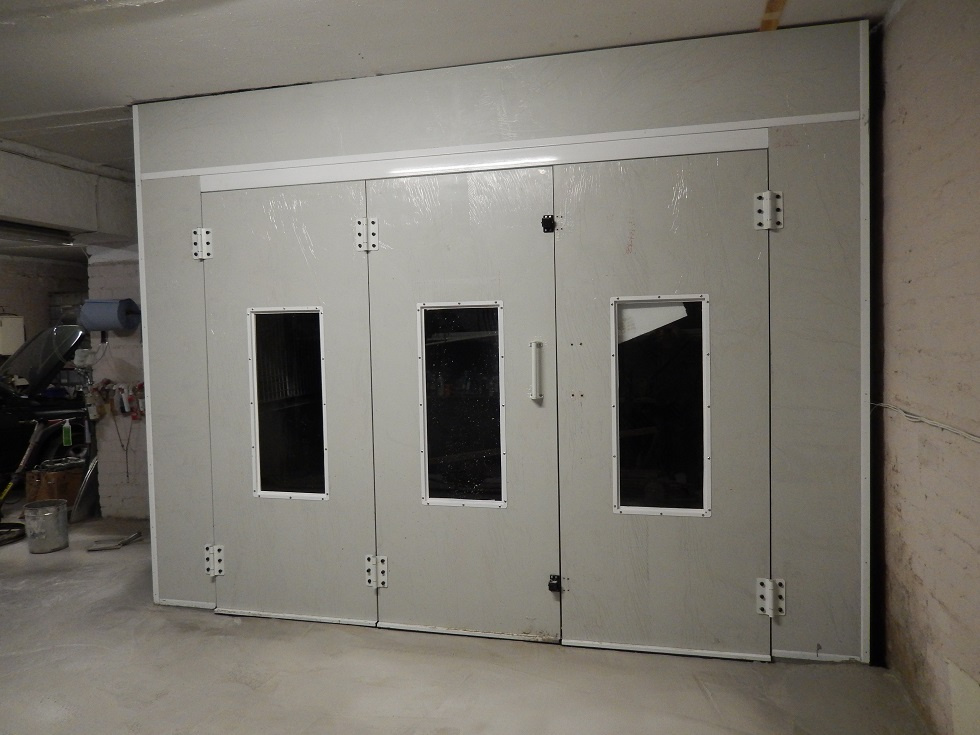

| 3-Folded Entrance Door With Safety Glass Window | 1 set, size: 3200x2700 mm(B x H), size is bigger than traditional spray booth |
| -Operator' s Door With Safety Glass Window | Big opening: 800x2000mm (B x H), hand-made, tempering glass observation window |
| Light System | Ceiling Lighting | 8Units, each4× 36w, total 1152W, the grade of lighting box' s dustproof and waterproof reach IP54 grade. |
| Side Lighting | 8Units, each2× 36W, total 576W, grade of lighting box' s dustproof and waterproof reach IP54 grade. |
| Brightness | ≥ 1000 LUX |
| Filtration System | Pre-filters | EU3 grade pocket filter system, filtration effect is much better |
| Ceiling Filters | EU5 grade high efficient filter |
| Bottom filter & exhaust filter | Fibreglass paint-stop filter |
| Ventilation System | Inlet fan (Direct Drive Motor) | Adopt big impeller turbo fan 7.5KW, 380V, 50HZ, CE |
| Outlet fan (Direct Drive Motor) | Adopt big impeller turbo fan 7.5KW, 380V, 50HZ, CE |
| Painting and baking exchange system | Solenoid valve+ pressure adjustment control cylinder driven damper exchange |
| Fan Capacity | 25000m³ /h |
| Air Flow Speed | 0.23 m/s in empty booth, 0.25_ 0.35m/s in loaded booth |
| Heating System | Heating Exchanger | Adopt high efficient heat-resistant stainless steel as cycling heat exchanger |
| Heating Exchange Capacity | 200KW(260.000Kcal/H) |
| Burner Model | Adopt Italy RIELLO diesel burner RG5S, (260.000kal/H), quicker heating and much better effect, more rest assure for quality |
| Heating time | 3-5 minutes( from 20° C to 60° C) under baking status, the max baking temperature is 80° C |
| Control board | Control system | Standard Y/Δ step-down start control system |
| PLC controller | Yes, PLC control, more reliable and lower breakdown rate |
| Pressure testing | The pressure gauge indicate the pressure inside cabin |
| Function | Painting, warm painting, baking, emergency stop switch, alarm indication, failure indication, over-temperature alarm indication, baking delay stop protection
|
BTD Car Tools Co., Ltd is a professional manufacturer for car spraying, baking, painting and largest automobile spraying/baking/painting booth in South China since Year 2002. With strong R&D experiences, advanced technology and guarantee quality, BTD brand spray paint booth is getting more and more popular all over the world.
BTD company target is to be a leading enterprising manufacturer for high-end Spray Paint Booth and painting lines, BTD enjoys good reputation in Europe and hold the most market share for high-end Spray Paint Booth. All of which are compliant to CE directives. We has passed the ISO9001: 2000 quality system certification and ensures that every department follows the articles of the system.
BTD company also produces many other products, such as preparation room, retractable room, mixing room, air compressor, car lift and car bench. A variety of high-quality products meet customers' different needs.
BTD company has many agency and establish many showroom around the world, customers can easy find our products in your countryif we have agency and showroom there. Meanwhile, we welcomes partners who are interested to be our agency.
