European design semi down draft paint booth (BTD8800)
Company Profile
BTD Car Tools Co., Ltd. Is a global player in the automotive aftermarket providing a full range of equipment and service solutions for workshops. We are specializing in the manufacture and worldwide sale of high quality car / bus / truck spray booths, preparation stations, paint mixing rooms, car collision repair equipment since Year 2002.
Advantages:
1. CE approved
2. German Technology
3. Professional European-style blower system
4. Spray booth professional manufacturer
5. Factory price
6. High quality, best sell service, timely delivery
7. We can meet at customer's special requirement
8. Touch screen control
9 Semi draf paint booth
Advantage
1. We are manufactory for 10 years
2. We have CE and ISO9001: 2000
3. German Technology
4. Warranty Time 2 years, Long-life Maintenance
If you wish to discuss any aspect of your project
...Please feel free to contact us...
Thank you so much for viewing! Have a wonderful day!
Model: BTD 8800
| Spray Booth BTD8800 |
|
|

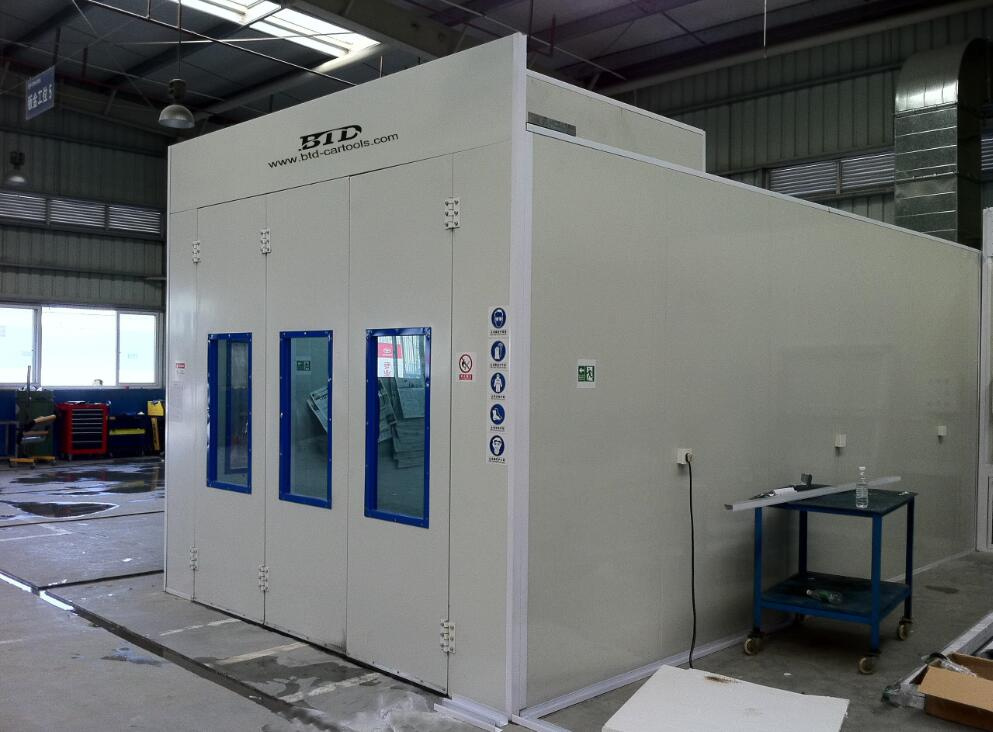

Spray Booth BTD8800 ( 6.9×4×2.8M )
Price: FOB Guangzhou USD11563
Loading condition: One 40GP container |
| Design standards | BS EN 13355 : 2004+A1:2009
BS EN 60204 : 2006+A1:2009 |
|
| Cabin size |
|
|
| Internal size | 6900×4000×2800mm (L×W×H) |
|
| External size | 9070×4110×3810mm(L×W×H) |
|
| Basement |
|
|
| Basement design type | No, with rear air collection box extraction structure |
|
| Air extraction type | Rear semi down draft extraction type |
|
| Air collection description | Frame structure,size:2000*1200*660mm |
|
| Filtration area | 4.8 |
|
| Cabin |
|
|
| Cabin structure | Wall panel vertical insert |
|
| Plenum chamber height | 600mm (half plenum chamber) |
|
| Wall panel | 50mm EPS panel |
|
| Roof panel | Galvanized steel plate bend forming |
|
| Material of wrap edge | 1.5mm galvanized steel plate bend forming |
|
| Entrance door |
|
|
| Type of entrance door | Hand made entrance door,2+1 structure |
|
| Size of entrance door | 3200×2700 mm (W×H), |
|
| Door arrangement and QTY | 1 set |
|
| Description of door | With frame inside, fill with EPS |
|
| Service door |
|
|
| Type of service door | Frame structure |
|
| Size of service door | 800×2000 mm (W×H) |
|
| Door arrangement and QTY | 1 set |
|
| Description of service door | With safe glass observation window |
|
| Side lighting |
|
|
| QTY and power | 6 units, each 2×36W, total 432W |
|
| Lighting arrangement | On two sides |
|
| Lighting description | IP55,CE certified electronic ballast, OSRAM brand lights |
|
| Ceiling lighting |
|
|
| QTY and power | 8 units, each 4×36W, total 1152W |
|
| Lighting arrangement | On two sides |
|
| Lighting description | IP55,CE certified electronic ballast, OSRAM brand lights |
|
| Total illumination | >1000Lux |
|
| Filtration system |
|
|
| Pre filter | G2 Grade plate type filter |
|
| Ceiling filter | 5 Grade filter, model is SP-600G |
|
| Bottom paint-mist collection | Fiber glass paint-stop filter |
|
| Exhaust filter | Fiber glass paint-stop filter, with features of big air ventilation volume, small resistance, fire resistance and so on |
|
| Inlet system |
|
|
| Inlet fan | Direct drive turbo fan |
|
| Inlet fan power and motor | 5.5KW,970 rpm, 380 V, 50 Hz,(domestic brand motor) |
|
| Inlet fan parameter | 500pa 18000m3/h |
|
| Exhaust system |
|
|
| Exhaust fan | Direct drive turbo fan |
|
| Exhaust fan power and motor | 5.5KW,970 rpm, 380 V, 50 Hz,(domestic brand motor) |
|
| Exhaust fan parameter | 500pa 18000m3/h |
|
| Equipment air speed when empty loaded | +/- 0.4m/ when empty loaded |
|
| Noise | <78 dB |
|
| Heating system |
|
|
| Heat exchanger materials | Stainless steel1Gr18Ni9Ti(SUS304) |
|
| Heat exchanger capacity | 158KW |
|
| T temperature increase ability | 20°C(from -10°C to 10°C under painting status) |
|
| Max working temperature | 80 |
|
| Heating time | 4-6 minutes (from 20° to 60°) under baking status |
|
| Burner model | G20 diesel burner |
|
| Ducting configuration |
|
|
| Straight duct | 4 sections |
|
| 90 degree | 1 section |
|
| 45 degree | 1 section |
|
| Reducer | 1 section |
|
| Control system |
|
|
| Performance standard | Standard Y/Δ step-down start control system |
|
| Function | Painting, warm painting, baking, lighting, emergency stop switch, failure indication, over-temperature alarm indication |
|
|
|
|
|
