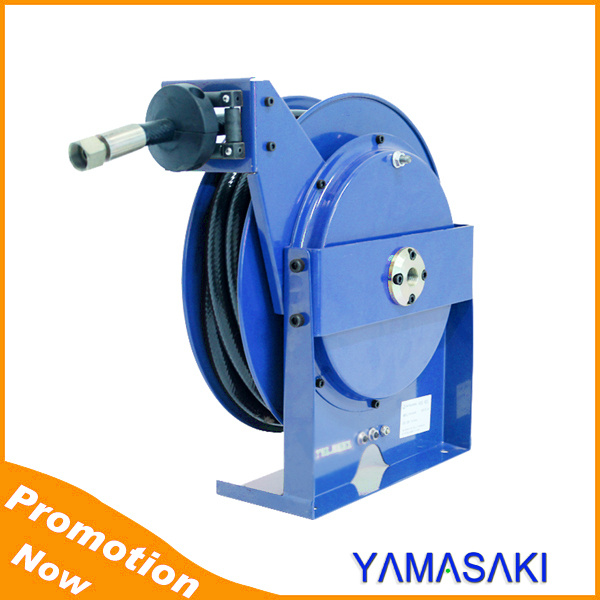

Name: Spring Tension All Steel Reels
Brand: ibuyautoparts.com
SKU: 768286495
Availability: InStock
Rating: 4.9 (128 reviews)

Price:	US $ 95/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Series 300 reels are all-steel construction and compact, beautiful light, especially suitable for a wide range of application with critical space requirements. Normally we see them at the factory workshop, automotive service shop, hanging installation.
Fluid path: 1/4", 5/16", 3/8", 1/2"

The features of Yamasaki 300 series hose / Cable reel:

1. Series 300 reels are all-steel construction and compact, beautiful light, especially suitable for
a wide range of application with critical space requirements. Normally
we see them at the factory workshop, automotive service shop, hanging installation.
The Drawing of 300 series

The Specifications:

Appilication	Pressure Mpa(psi)	Hose inner dia. mm (In)	Hose length m (ft)	Reel inlet	Reek outlet	Pin No. (with hose)	Pin No. (without hose)
Air/Water/Anti-freeze	2(300)	6 (1/4)	10(33)	1/2"	1/4"	300020110	300020100
Air/Water/Anti-freeze	2(300)	6 (1/4)	15(50)	1/2"	1/4"	300020115	300020100
Air/Water/Anti-freeze	2(300)	8 (5/16)	8(25)	1/2"	1/4"	300020208	300020200
Air/Water/Anti-freeze	2(300)	8 (5/16)	12(40)	1/2"	1/4"	300020212	300020200
Air/Water/Anti-freeze	2(300)	10(3/8)	10(33)	1/2"	3/8"	300020310	300020300
Air/Water/Anti-freeze	2(300)	12(1/2)	10(33)	1/2"	1/2"	300020410	300020400
Oil/Water	19(2780)	6 (1/4)	12(40)	M20×1.5	M14×1.5	300190112	300190100
Oil/Water	15(2280)	10(3/8)	10(33)	M20×1.5	M18×1.5	300150310	300150300
Oil/Water	14(2030)	12(1/2)	8(25)	M20×1.5	M22×1.5	300140408	300140400
Grease	35(5075)	6 (1/4)	10(33)	M20×1.5	M14×1.5	300350110	300350100
Grease	28(4060)	10(3/8)	10(33)	M20×1.5	M18×1.5	300280310	300280300

Prod Model:	Series 300
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Drive Type:	Spring
Spring Brand:	Kern-Liebers
Construction:	All Bolted Unitized
Mounting:	Floor, Wall, Bench, Truck
Inlets:	1/4", 5/16", 3/8", 1/2"
Material:	3.0mm Cold Steel
Surface Finish:	Powder Coated
Color:	Blue
