Rechargeable Electic Tile Inflator
Portable Air Pump
Build-in Lithium Battery
1. Specification| Battery: | 600mAh |
| Input Voltage: | DC12V |
| Charging time: | 1.5-2 Hours |
| Max Air Pressure: | 40 PSI |
| Accessories: | AC adapter, 12Vcar charger, air tube, air jet, inflation needle, Presta Valve |
| Packing Size: | 230mm*80mm*85mm |

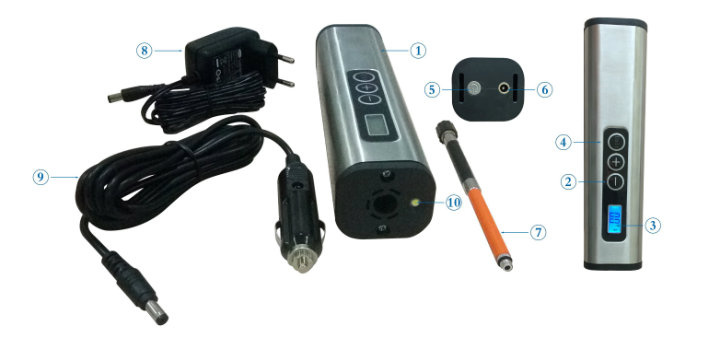

2. Product Structure
1. Inflator2. "+" "-" preset key3. LCD4. "UNIT" key5. Power switch6. Charging port7. Air tube8. Home adaptor9. Car charger10. COB light3. Operation Instruction1. The rechargeable pump's power can be supplied by connecting car charger with cigarette lighter or home adaptor. Rechargeable inflator should be well charged in advance
a) Car charger: plug cigarette lighter into car charger, the other end to be plugged in charge port of inflator.
b) Home adaptor: plug home adaptor into electric outlet, the other end to be plugged in charge port of inflator. Red light on suggests the inflator is charging, green light on suggests charging completed.
2. Connect one end of air tube to inflator, plug the other end to tire valve core. For French valve, it should be connected to the French adaptor at first.
3. Lighting function: Press power switch, COB light turns on, and light turns off after pressing power switch again
4. Press "UNIT" button to set pressure on activated screen.
5. Press "+" & "-" to adjust the target pressure.
6. Press power switch for inflating.
7. Repeatedly press "UNIT" button, the ATMOS will transform to PSI, BAR, KPA, or kg/cm². The screen will show the real data.
8. "+" & "-" are preset keys. Click it for adjusting the target pressure slowly, long press for adjusting the target pressure quickly (notes: ordinary bicycle is 30-50PSI, mountain bike is 40-60PSI, road bicycle is 80-120PSI,car is 30-40PSI ) . Setting will be completed after the screen flicker for 4 seconds, Or press the "UNIT" button to finish setting. Then press power switch for inflating.
9. When inflate to the set point, digital intelligent inflator will stop inflating automatically. And press power switch, COB light will turn off.
10. After inflation, pull out the tube from valve core and from inflator. Left it in storage of inflator and keep dry.
11. Pressure tester function: plug into the tire, and press the "unit" button, it will show the current pressure.
12. No load protection function: after 90 seconds working, if no pressure has been detected, then it will automatically stop.
