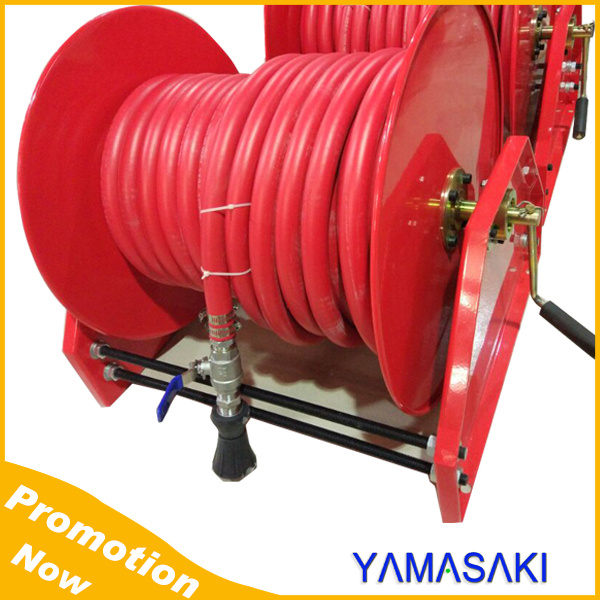

Features of reel
Series 420 reels, in terms of research and design, selection of materials,
or manufacturing everywhere focus on its characteristics and special
requirements of automotive applications, thickening of the plate, rugged
construction, making it shock resistance, stability and taste, storage space
large, can be wound larger size, longer hose length range of applications to
be fully extended.
Fluid path:1/4 ", 5/16", 3/8 ", 1/2", 3/4 ", 1"
The Specifications:
Appilication | Pressure Mpa(psi) | Hose inner dia. mm (In) | Hose length m (ft) | Reel inlet | Reek outlet | Pin No. (with hose) | Pin No. (without hose) |
Air/Water/Anti-freeze | 2(300) | 6 (1/4) | 120(393) | M14×1.5 | M14×1.5 | - | 420020100 |
Air/Water/Anti-freeze | 2(300) | 8 (5/16) | 120(393) | M18×1.5 | M18×1.5 | - | 420020200 |
Air/Water/Anti-freeze | 2(300) | 10(3/8) | 100(328) | M18×1.5 | M18×1.5 | - | 420020300 |
Air/Water/Anti-freeze | 2(300) | 12(1/2) | 80(262) | M22×1.5 | M22×1.5 | - | 420020400 |
Air/Water/Anti-freeze | 2(300) | 19(3/4) | 50(164) | M30×1.5 | M30×1.5 | - | 420020600 |
Air/Water/Anti-freeze | 2(300) | 25(1) | 30(100) | M36×2 | M36×2 | | 420020700 |
Oil/Water | 19(2780) | 6 (1/4) | 120(393) | M14×1.5 | M14×1.5 | - | 420190100 |
Oil/Water | 15(2280) | 10(3/8) | 100(328) | M18×1.5 | M18×1.5 | - | 420150300 |
Oil/Water | 14(2030) | 12(1/2) | 80(262) | M22×1.5 | M22×1.5 | - | 420140400 |
Oil/Water | 8(1160) | 19(3/4) | 50(164) | M30×1.5 | M30×1.5 | - | 420080600 |
Air/Water/Anti-freeze | 2(300) | 6 (1/4) | 120(393) | M14×1.5 | M14×1.5 | - | EM420020100 |
Air/Water/Anti-freeze | 2(300) | 8 (5/16) | 120(393) | M18×1.5 | M18×1.5 | - | EM420020200 |
Air/Water/Anti-freeze | 2(300) | 10(3/8) | 100(328) | M18×1.5 | M18×1.5 | - | EM420020300 |
Air/Water/Anti-freeze | 2(300) | 12(1/2) | 80(262) | M22×1.5 | M22×1.5 | - | EM420020400 |
Air/Water/Anti-freeze | 2(300) | 19(3/4) | 50(164) | M30×1.5 | M30×1.5 | - | EM420020600 |
Air/Water/Anti-freeze | 2(300) | 25(1) | 30(100) | M36×2 | M36×2 | | EM420020700 |
Oil/Water | 19(2780) | 6 (1/4) | 120(393) | M14×1.5 | M14×1.5 | - | EM420190100 |
Oil/Water | 15(2280) | 10(3/8) | 100(328) | M18×1.5 | M18×1.5 | - | EM420150300 |
Oil/Water | 14(2030) | 12(1/2) | 80(262) | M22×1.5 | M22×1.5 | - | EM420140400 |
Oil/Water | 8(1160) | 19(3/4) | 50(164) | M30×1.5 | M30×1.5 | - | EM420080600 |
3.1 | Features and Specifications: | | Attribute | 3/4" Model | Comments |
| Reel Specifications | Reel Material | Steel | |
Reel Color | Red | color as your request |
Drum Outside Diameter | 450mm | |
Drum Width | 205mm | |
Drum Steel Thickness | 1.5mm | |
Locking Reel Pawl Positions | 10 position | |
Base Thickness | 1.5mm | |
Base Configuration | 2 keyhole slots, 2 holes | |
Upright Thickness | 1.5mm | |
Mounting Hardware Included | None | |
Paint/Powder Coat Requirements | 3020 | |
Inlet Fittings | Rc3/4 | |
Supply Hose Whip | Not Included | |
