Side Downdraft Tank Spray Paint Booth
| Price: |
Negotiable/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |

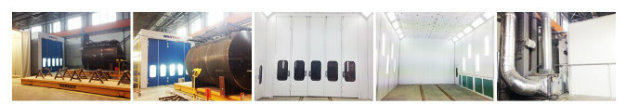

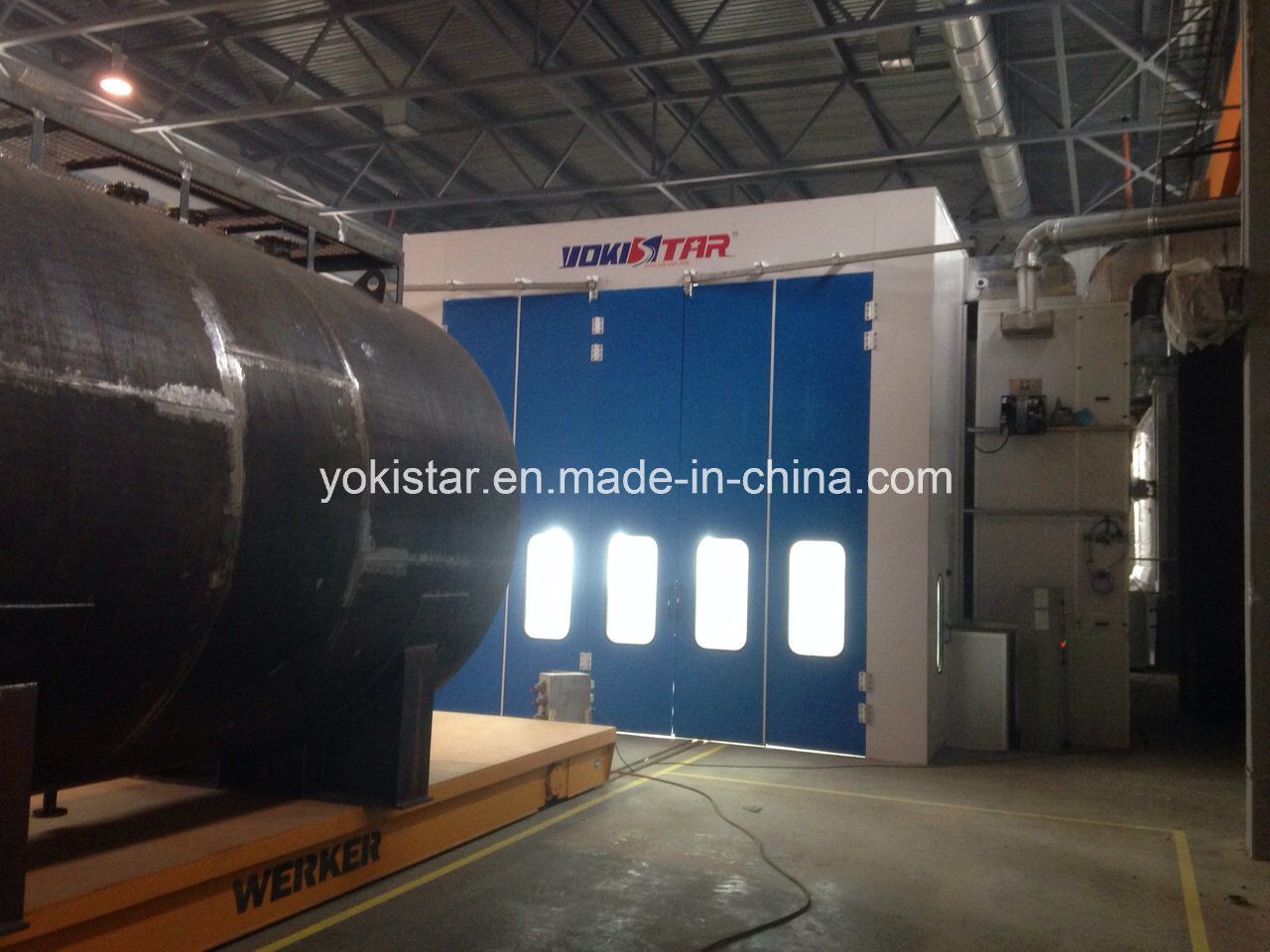

A bracing spray baking booth has finally been completed in Russian in October, 2014. Experiencing about 6-month preparation works, it is reflective of collaborative efforts of all YOKISTAR members of engineers, production, loading and shipping, as well as the installation and vitally important service of YOKISTAR cooperators.
This is a side downdraft spray booth with the application of tanker painting and baking. Comfortable working condition for operators and superb painting environment for tankers have been created under the features of ventilation, ample lighting, efficient filtering, energy-saving heating and fault alarming."Available size of the paint spray booth is 14000×6000×5000mm(L×W×H), and the overall size is 14140×8090×5600 mm(L×W×H);
70mm thick ROCKWOOL insulation wall panels and 0.6mm thick color steel cover offer the cabin with firm structure;
18units ×4pcs ×36W ceiling lights and 18units ×4pcs ×36W side lights create the illumination of more than 800LUX;
40000m³/h air capacity is reached by belt-drive centrifugal fans in air intaking and exhausting units, which is known for its large air volume and small noise;
RIELLO RLS28 diesel and gas burner together with 300KW/H heat exchanger are equipped in heating system to attain more than 90% heat energy utilization;
The primary pocket filter and ceiling filter can catch dust of large than 4μm, ensuring intaking air clean;
The fiberglass filter and M-shaped active carbon filter make the exhausted waste air complying with green standards; all anti-explosion motors, anti-spark fans and control safety system guarantee a safe operation for painting workers."Customized Your Spray Booth1) Dimension of this spray booth can be adjusted according to the size of your products;
2) Waterborne paint system can be equipped if this special paint is applied in our workshop;
3) 3-Axis platform lift is also available if the working height is difficult to attain;
4) Heat recuperator can also be installed to increase heat energy efficiency..All YOKISTAR members are awaiting to offer the most suitable spray booth to you.If you have one in mind, please fill out below form.
| Prod Model: |
YS-TB15 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Available Size: |
14000*6000*5000mm(L*W*H) |
| Overall Size: |
14140*8090*5600 mm(L*W*H) |
| Rockwool Insulation Wall Panels Thick: |
70mm |
| Color Steel Thick: |
0.6mm |
| Ceiling Lights: |
18units*4PCS*36W |
| Side Lights: |
18units*4PCS*36W |
| Air Capacity: |
40000m3/H |
| Fans Type: |
Belt-Drive Centrifugal Fans |
| Heating System: |
Riello Rls28 Diesel and Gas Burner |
| Main Products: |
Spray Booth Prep Station, Infrared Curing Lamp |
| Certification: |
CE |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Type: |
Spray Booth |
| Substrate: |
Rockwool Insulation Panel |
| Brand: |
Yokistar |
| Coating: |
0.6mm Color Steel |
| Airflow Direction: |
Side Downdraft Airflow Way |
