Shot Blast Clean-up Machine

This machine is in keeping with many species, big medium the batch quantity produces the surface of the work piece in addition to becoming rusty or throwing the pill to enhance. Tidy up the work piece and the hot processing pieces that must be the not afraid collision. That machine since can single machine usage, can go together with the line usage again.

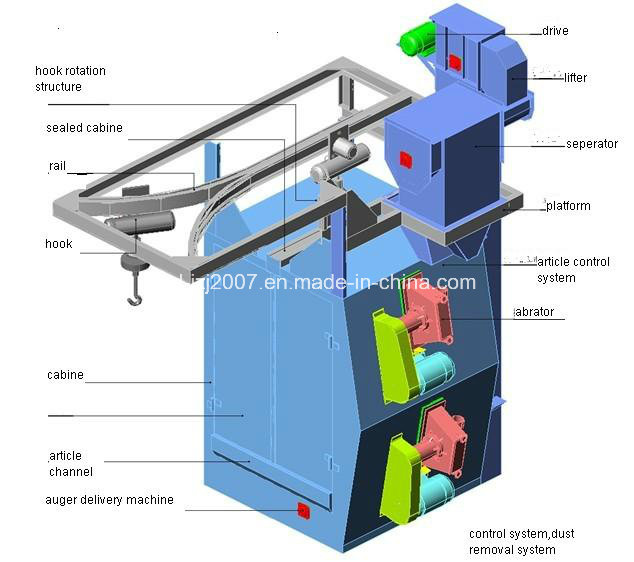

Q378E hook airless blast cleaning machine

Main features:
Outside size of the main cabine: 1800L× 1800W× 2800Hmm
Workpieces: ≤ SwirlingΦ1000× H1200mm
First cycle volume: 1000kg
Abrator power: 11kw× 2sets
Rolling speed: 2940 rolls/min
Shot blasting capacity: 200kg/min
Lifter speed reducing motor: 3.0kw
Hook rotation speed reducing motor: 0.55kw
Auger delivery speed reducing motor: 2.2kw
Dust-removal speed reducing motor: 1.5kw
Dust remove blower: 7.5kw
Filter cylinder quantity: 12pieces(Φ325× 600mm)
Processed air volume: 8000m³ /h
Separation wind speed: 4-5m/s
Applicable shot article: Φ0.3-1.5mm
First cycle volume: 800kg
Total power: 40.15kw
Outside size of machine: 2500L× 4050W× 4900Hmm
