Good Quality Shot Blasting Machine CE

This machine is in keeping with many species, big medium the batch quantity produces the surface of the work piece in addition to becoming rusty or throwing the pill to enhance. Tidy up the work piece and the hot processing pieces that must be the not afraid collision. That machine since can single machine usage, can go together with the line usage again.

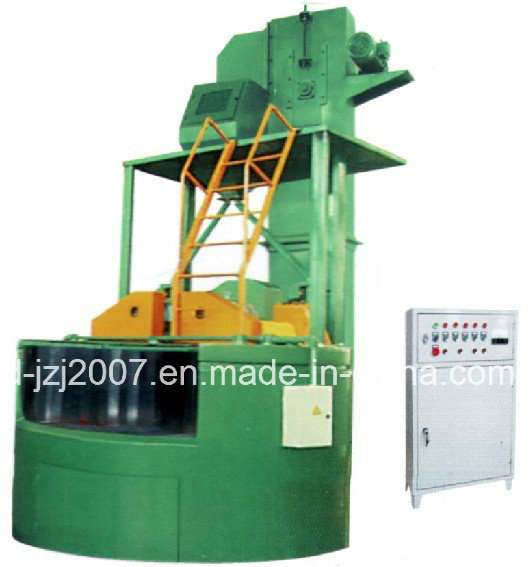

Q3512 turntable shot blasting machine

Main features:

Outside size of the main cabine: Φ1350× 560mm
Workpieces: ≤ 600L× 250W× 250Hmm
First cycle volume: 400kg
Turntable diameter: Φ1200mm
Turntable rotate speed: 0.36r/min
Abrator power: 7.5kw× 1set
Rolling speed: 2940 rolls/min
Shot blasting capacity: 180kg/min
Lifter speed reducing motor: 2.2kw
Table rotation speed reducing motor: 3.0kw
Dust remove blower: 3.0kw
Filter cylinder quantity: 8pieces(Φ325× 600mm)
Processed air volume: 2800m³ /h
Separation wind speed: 4-5m/s
Applicable shot article: Φ0.3-1.5mm
First cycle volume: 400kg
Total power: 15.7kw
Outside size of machine: 1500L× 3450W× 3780Hmm
