Hook Type Shot Blast Machine Q37 Series

This machine is in keeping with many species, big medium the batch quantity produces the surface of the work piece in addition to becoming rusty or throwing the pill to enhance. Tidy up the work piece and the hot processing pieces that must be the not afraid collision. That machine since can single machine usage, can go together with the line usage again.

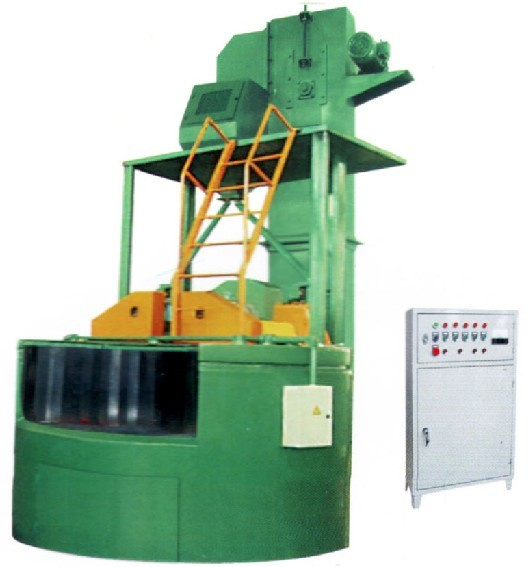

Q3525 turntable shot blasting machine

Main features:

Outside size of the main cabine: Φ2655× 560mm
Workpieces: ≤ 1000L× 500W× 250Hmm
Unit cycle capacity: 1000kg
Turntable diameter: Φ2500mm
Turntable rotate speed: 0.36r/min
Abrator power: 11kw× 2sets
Rolling speed: 2940 rolls/min
Shot blasting capacity: 200kg/min
Lifter speed reducing motor: 3.0kw
Table rotation speed reducing motor: 5.5kw
Dust remove blower: 7.5kw
Filter cylinder quantity: 12pieces(Φ325× 600mm)
Processed air volume: 3500m³ /h
Separation wind speed: 4-5m/s
Applicable shot article: Φ0.3-1.5mm
First cycle volume: 1500kg
Total power: 38kw
Outside size of machine: 3200L× 2850W× 4500Hmm
