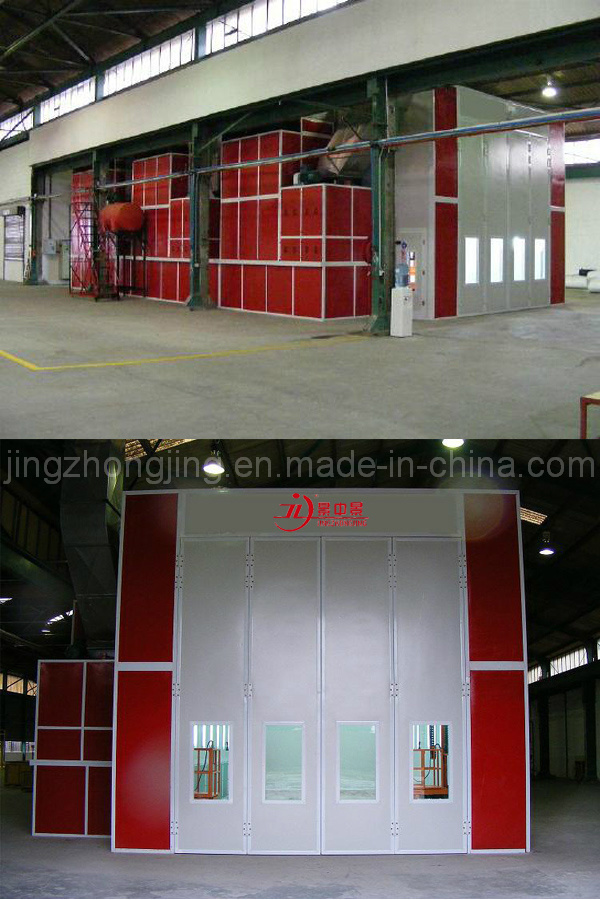

Passanger Spray Booth for 18000*5000*5000 (Model: JZJ-FB-18)

Passanger Spray Booth for 18000*5000*5000 (Model: JZJ-FB-18)
Price: Negotiable/Set
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: L/C,T/T
Prod Model: JZJ-FB-18
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color: Sea Blue, Red, Orange, White
Certification: ISO9001
Airflow Direction: Fully Undershot-type
Heating Mode: Diesel
Paint Mist Treatment: Dry-type
Condition: New

Product Description

1. External lighting.
2. Proof-explosion motors.

3. CE and ISO certification.


Outside Dimension (mm)18156*6906*5800(L*W*H) Inside Dimension(mm)18000*5000*5000(L*W*H)
Front Door(mm)4000*4500(W*H)Service door (mm)1800*650(W*H)
Total Power98KW
Cabin systemWall panel  75mm EPS sandwich panel, steel sheet thickness: 0.6mm
Ceiling panel 50mm rock-wool panel.
Windows4mm safety tempered glass
Air Make-up SystemAir Inlet fan system6*7.5kw centrifugal belt-drive fan, proof-explosion motor.
Exhausted fan system3*15kw centrifugal belt-drive fan, proof-explosion motor.
Ai capacity for fresh air22000m3/h *6
Air capacity for exhausted air19500m3/h *3
Air Flowing speed0.25m/s in empty booth
Air Control methodOne manual damper for exhausted system
Exhausted ducting6meters straight ducting, one 90°elbow for each unit fan system.
Purification SystemPre-filterG3 grade
Ceiling filterEU5 / F5
Floor filtergreen fiber glass filter / G3 grade
Exhausted fan FiltersM green fiber glass filter.
Heating SystemHeat ExchangerSUS304 material, argon arc welding.
Heating burner:        3 sets Riello RG5S diesel oil burner(gas burner for option)
Heating productivity                             260000Kcal/h/ burner
Spray to baking switch20N BELIMO brand electrical damper
Chimney ducting6 meters stainless ducting for each heating system
Max heating temperature80degrees
fuel consumption10-15L /vehicle
Lighting SystemCeiling lights22 Units, each 4 x 36W Philips lamps, Total 3312 W
Side lights26 Units, each 2 x 36W Philips lamps, Total 1872 W
Illumination 900LUX
Controlling systemMicro-computerized programming system Spraying & baking switch, lighting switch, emergency stop,
breakdown alarm, failure alarm, pressure gauge
Jiangsu Jingzhongjing Industrial Paint Equipment Co., Ltd, is located in the Yangtze River Delta Economic Zone, China Industrial Painting Base, Yancheng city, Jiangsu Province. We have the plant area of 99000m2, garden-style industrial zone. We have the staff of 260, including 20 engineers with 15years designing experience. Our annual production capacity can achieve 2, 500 sets paint booth.

We adhere to the "heritage of big business style, classic gaming counterparts, - creating the world brand" core values. Pursuit high goals, has won wide recognition and praise from the government and the market.

Our products are JZJ Brand spray booth, sandblasting booth, shot blasting machines etc. Our products have passed the ISO9001, EU CE, the products have been shipped in the domestic 34 provinces and more than 50 countries like Germany, Japan, Russia etc.

Our products are well-known in the industrial of the automobile, aviation, military, wind power, nuclear power, engineering machinery, machine tool manufacturing, and other industries.

Welcome the customers from China and all over the world to join us!
