Model: JZJ-FB-15 Bus Spray Booth for 15000*5000*5000mm

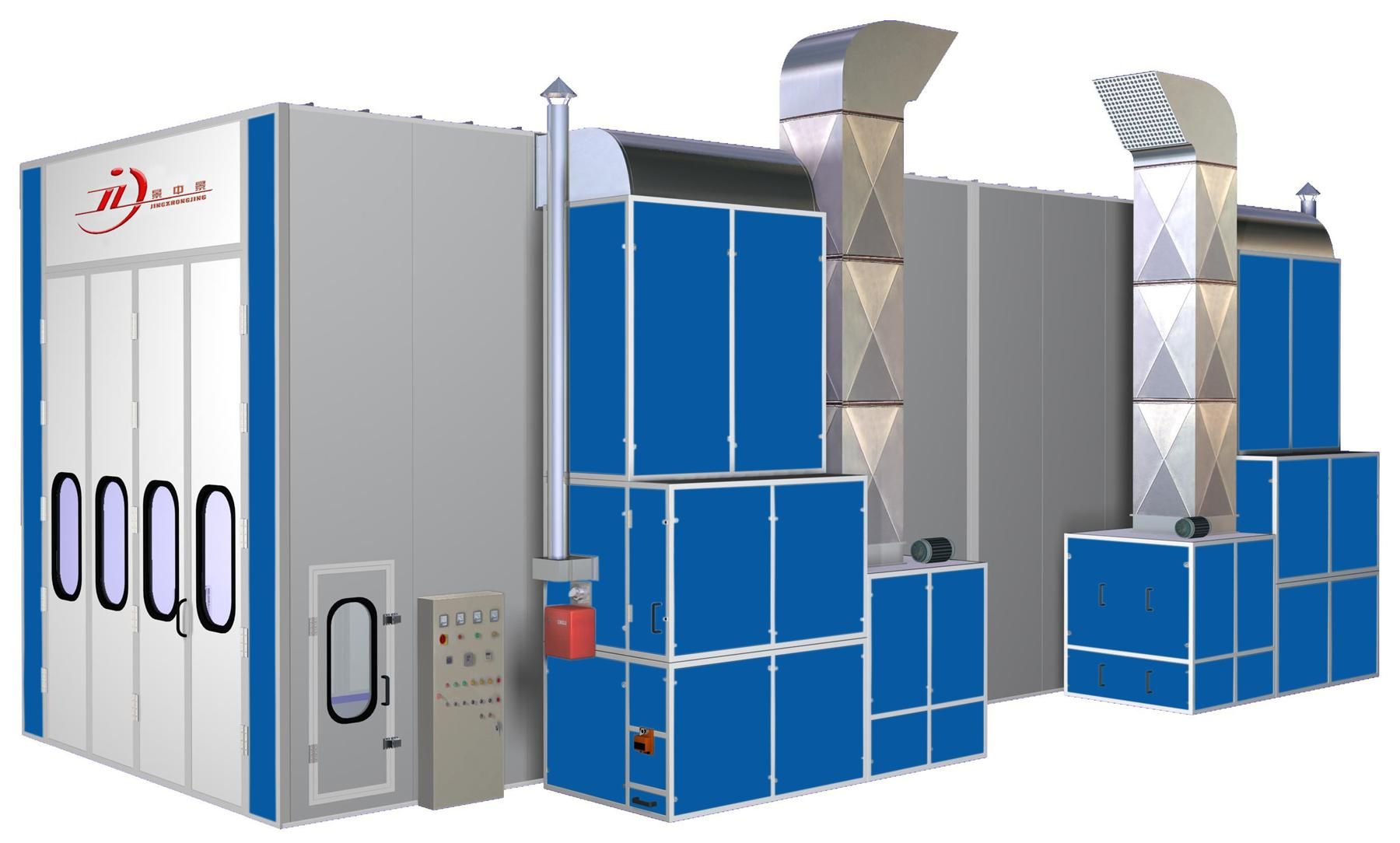

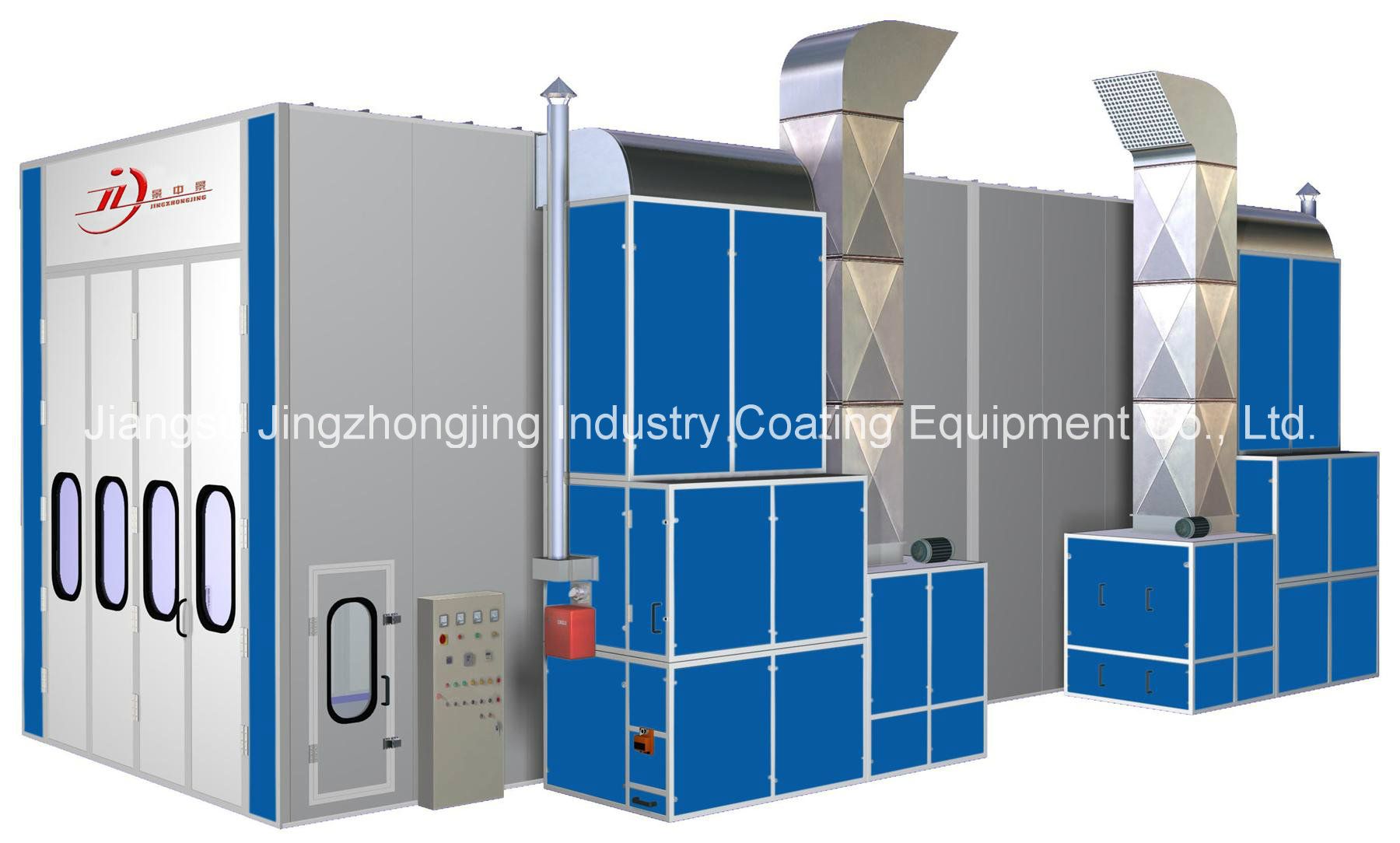

Product picture
Product description:1. 12m, 15m, 18m, 20m, 22m...any sizes can be customized;
2. three-D work lift in the big spray booth is optional.
3. Air exhaust from two sides of spray room or pit is optional;
4. Drive through type door, rolling door and folding door are optional.
5. Air generation system on the top of spray room is optional
A. During painting, spray booth can offer a sealed environment with cleanness, safety and excellent lighting for the painting operation of all kind of components and different products.
B. During baking, drying time, temperature and humidity in spray booth can be set according to different paint materials to achieve a perfect high-quality spraying and baking for your cars.
C. Spray booth makes spraying and baking operation with no limits of all kinds of whether, thus ensuring physical fitness of operators and absolute safety of equipments.
WarrantyThe goods are guaranteed for 24 months from the date of receipt, but the filters and lamps are not guaranteed. It cannot be applied for damages caused by negligence of operations or mishandling of the machine.
Product specifications| Outside Dimension (mm) | 15156*6906*5800(L*W*H) | Inside Dimension(mm) | 15000*5000*5000(L*W*H) |
| Front Door(mm) | 4000*4500(W*H) | Service door (mm) | 1800*650(W*H) |
| Total Power | 65KW |
| Cabin system | Wall panel | 75mm EPS sandwich panel, steel sheet thickness: 0.5mm |
| Ceiling panel | 50mm rock-wool panel. |
| Windows | 4mm safety tempered glass |
| Air Make-up System | Air Inlet fan system | 4*7.5kw centrifugal belt-drive fan, proof-explosion motor. |
| Exhausted fan system | 2 *15kw centrifugal belt-drive fan, proof-explosion motor. |
| Ai capacity for fresh air | 22000m3/h *4 |
| Air capacity for exhausted air | 19500m3/h *2 |
| Air Flowing speed | 0.25m/s in empty booth |
| Air Control method | One manual damper for exhausted system |
| Exhausted ducting | 6meters straight ducting, one 90°elbow for each unit fan system. |
| Purification System | Pre-filter | G3 grade |
| Ceiling filter | EU5 / F5 |
| Floor filter | green fiber glass filter / G3 grade |
| Exhausted fan Filters | Pocket filter or M green fiber glass filter. |
| Heating System | Heat Exchanger | SUS304 material, argon arc welding. |
| Heating burner: | 2 sets Riello RG5S diesel oil burner(gas burner for option) |
| Heating productivity | 260000Kcal/h/ burner |
| Spray to baking switch | 20N BELIMO brand electrical damper |
| Chimney ducting | 6 meters stainless ducting for each heating system |
| Max heating temperature | 80ºC |
| fuel consumption | 10-15L /vehicle |
| Lighting System | Ceiling lights | 18 Units, each 4 x 36W Philips lamps, Total 2592 W |
| Side lights | 22 Units, each 4 x 36W Philips lamps, Total 1584 W |
| Illumination | 900LUX |
| Controlling system | Micro-computerized programming system | Spraying & baking switch, lighting switch, emergency stop, breakdown alarm, failure alarm, pressure gauge |
