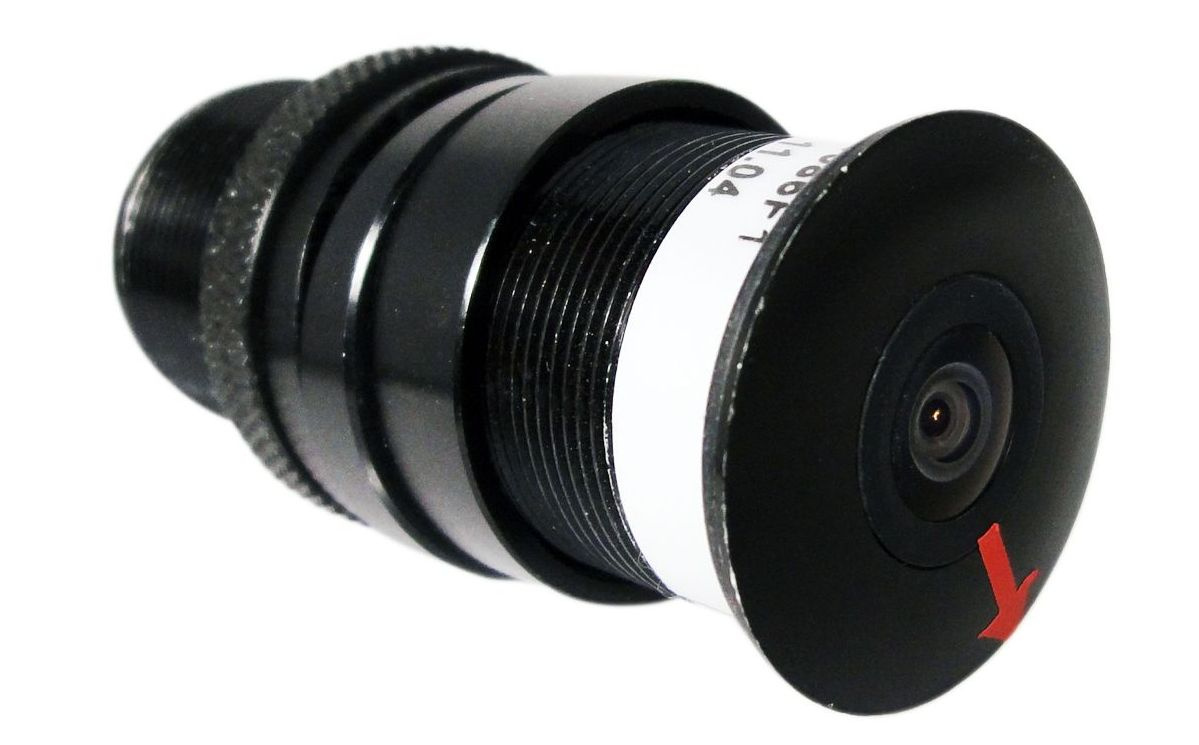

Miniature Reverse Camera 180 Degree View Angle

Name: Miniature Reverse Camera 180 Degree View Angle
Brand: ibuyautoparts.com
SKU: 608715175
Availability: InStock
Rating: 4.4 (82 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	2/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Model No. CA-336 (170 degree)
Number of Pixels 510(H) x 492(V)
Image Pick-up Device 1/3" COLOR CCD Image Sensor
TV System NTSC/PAL
Scanning System 2: 1 Interlaced
SYNC. System Internal
Scanning Frequency NTSC 15. 734Khz/H x 59. 94Hz/V
PAL 15. 625Khz/H x 50Hz/V
Horizontal Resolution 380 TV Lines
S/N Ratio (AGC off) More than 50dB
MIN. Sensitivity 0. 5 Lux - at F: 2. 0/30IRE
GAMMA Correction 0. 45 Approx
Gain Control Auto. 4dB - 30dB
Video Output 1. 0Vp-p 75 ohm
Lens Standard f=2. 2 (170 degree)
Power Source DC 12V 300mA Regulated Power Supply
Power Consumption 115mA - at 12VDC
Operating Temperature -20~+60 degree
Dimension L 65mm * Dia. 25mm
Weight 100g
Color Black.
Cable S-input (5 pin)
Extension cable from 5m-30m available

other chip optional as following

Key Technical Parameter
Technical Title	Technical Parameters	Technical Parameters	Technical Parameters
Image Sensors	CMOS 6070	CMOS 1089	Sony CCD high resolution
Resolution(TV Line)	420TVL	480TVL	600TVL
Effective Pixels	648*488	728*488	728582/728512
TV System	PAL/NTSC	PAL/NTSC	PAL/NTSC
Lens Angle (Deg.)	170°	170°	170°
Minimum illumination	0.1 Lux	0.5 Lux	0.1 Lux
Electronic Shutter	1/60(NTSC)/1/50(PAL)-1/10,000S	1/60(NTSC)/1/50(PAL)-1/10,000S	1/60(NTSC)/1/50(PAL)-1/10,000S
S/N Ratio	≥48dB	≥48dB	≥48dB
Horizontal Sync.Frequency (KHZ)	15.625KHz/15.734KHz	15.625KHz/15.734KHz	15.625KHz/15.734KHz
Vertical Sync.Frequency (HZ)	60Hz/50Hz	60Hz/50Hz	60Hz/50Hz
Video output	1.0vp-p,750hm	1.0vp-p,750hm	1.0vp-p,750hm
White Balance	Auto	Auto	Auto
AGC	Auto	Auto	Auto
BLC	Auto	Auto	Auto
Power Supply	DC12V±1V	DC12V±1V	DC12V±1V
Power	0.5w-1.5w	0.5w-1.5w	<1W
Current Consumption (mA)	40-120mA	40-120mA	70~80mA
Operating Temperature (Deg.C)	-40~+85(RH95%MAX.)	-20~+70(RH95%MAX.)	-30~+70(RH95%MAX.)
Storage Temperature (Deg.C)	-40~+85(RH95%MAX.)	-30~+80(RH95%MAX.)	-40~+80(RH95%MAX.)

Prod Model:	CA-336
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Installation Position:	Drill a Hole in Bumper of Car
Warranty Time:	2 Year
Interface:	Air Plug
Probe Number:	1
Definition:	600tvl Max
Chip:	CCD or CMOS
Waterproof Grade:	IP69
Alarming Distance:	5m

Guangzhou Candid Co., Ltd. is a leading professional auto camera and LCD monitor system manufacturer in China.

Founded on 2003, we specialized in car reversing system developing, all our camera products are used in vehicles. Now our brand "CANDID" is No. 1 famous brand in China, we also exported to worldwide.

From 2008, we have got ISO9001, TS16949 certification, Also established a long-term and stable partnership with most of the domestic automotive manufactures, Such as China Toyota, Nissan, MAN, JAC, Brilliance. At present, among the top 20 domestic auto-manufacturers, of which 8 are our customers. Meantime, we have been approved to be the qualified supplier by the famous international automobile manufacturers.

We provide high quality customized services such as development, testing, consulting for the domestic and foreign customers.

We would like to provide OEM & ODM for customers, we have strong technology ability to do both hardware and software development.

Welcome to contact us.
