Car Rear View Backup Heavy Duty IP69k Camera

Name: Car Rear View Backup Heavy Duty IP69k Camera
Brand: ibuyautoparts.com
SKU: 807482695
Availability: InStock
Rating: 4.9 (91 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	T-9990
Installation Position:	in The Rear of Vehicle
Warranty:	24 Months
Chip:	CCD
Interface:	S-Video or Others
Definition:	420-600tvl
Waterproof Grade:	IP69k

Product Description

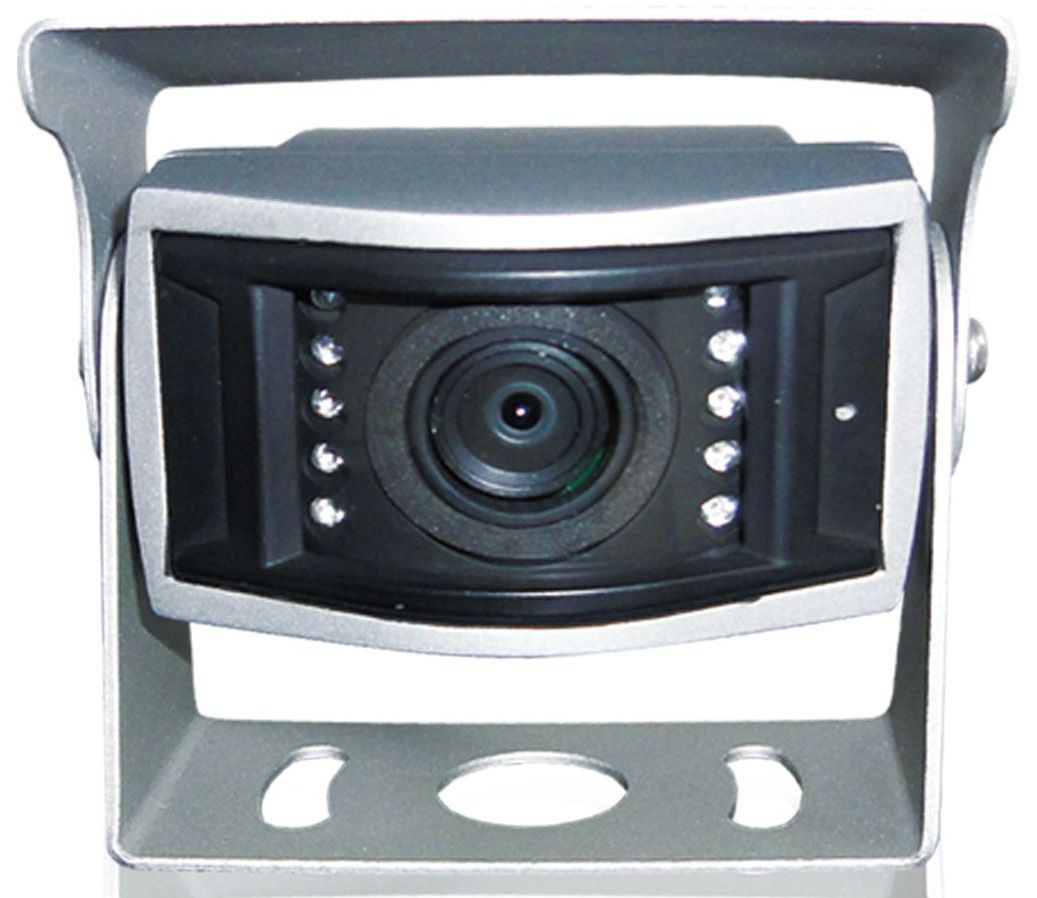

T-9990 is a heavy duty IP69K waterproof camera , fit for most of vehicles

Image Sensor: 1/4" or 1/3"Color CCD (CMOS is available)
TV System: NTSC/PAL
Horizontal resolution: 420/600tvl TV Lines
Sync system: Internal synchronization
Usable illumination: Olux At night (Led on)
S/N Ratio: >=48dB(AGC Off)
Y Characteristic: 0.45
Video output: 1 vp-p75ohm
Electronic shutter time: Auto, NTSC: 1/60~1/100, 000Sec
PAL: 1/50~1/100, 000Sec
Scanning system: NTSC: 525Lines, 60 Field/Sec
PAL: 625Lines, 50 Field/Sec
Operation temp: -20~+60 degree RH 95% Max
Lens: F: 2.8mm( option)
Power supply: DC 12V/120mA
Dimension: 60mm x 64mm x 69mm
Weight: 340g
IR Woring Distance: 10 meter
Power Consumption: 2.0 Watts
Power on: CDS Auto Control
Infrared LED
IR Status: Under 10 lux by CDS
Construction: Alunimum

Other optional chip :

Key Technical Parameter
Technical Title	Technical Parameters	Technical Parameters	Technical Parameters
Image Sensors	CMOS 6070	CMOS 1089	Sony CCD high resolution
Resolution(TV Line)	420TVL	480TVL	600TVL
Effective Pixels	648*488	728*488	728582/728512
TV System	PAL/NTSC	PAL/NTSC	PAL/NTSC
Lens Angle (Deg.)	170°	170°	170°
Minimum illumination	0.1 Lux	0.5 Lux	0.1 Lux
Electronic Shutter	1/60(NTSC)/1/50(PAL)-1/10,000S	1/60(NTSC)/1/50(PAL)-1/10,000S	1/60(NTSC)/1/50(PAL)-1/10,000S
S/N Ratio	≥48dB	≥48dB	≥48dB
Horizontal Sync.Frequency (KHZ)	15.625KHz/15.734KHz	15.625KHz/15.734KHz	15.625KHz/15.734KHz
Vertical Sync.Frequency (HZ)	60Hz/50Hz	60Hz/50Hz	60Hz/50Hz
Video output	1.0vp-p,750hm	1.0vp-p,750hm	1.0vp-p,750hm
White Balance	Auto	Auto	Auto
AGC	Auto	Auto	Auto
BLC	Auto	Auto	Auto
Power Supply	DC12V±1V	DC12V±1V	DC12V±1V
Power	0.5w-1.5w	0.5w-1.5w	<1W
Current Consumption (mA)	40-120mA	40-120mA	70~80mA
Operating Temperature (Deg.C)	-40~+85(RH95%MAX.)	-20~+70(RH95%MAX.)	-30~+70(RH95%MAX.)
Storage Temperature (Deg.C)	-40~+85(RH95%MAX.)	-30~+80(RH95%MAX.)	-40~+80(RH95%MAX.)
