7inch HD Waterproof Rear View Backup Monitor

Name: 7inch HD Waterproof Rear View Backup Monitor
Brand: ibuyautoparts.com
SKU: 834747315
Availability: InStock
Rating: 4.6 (71 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

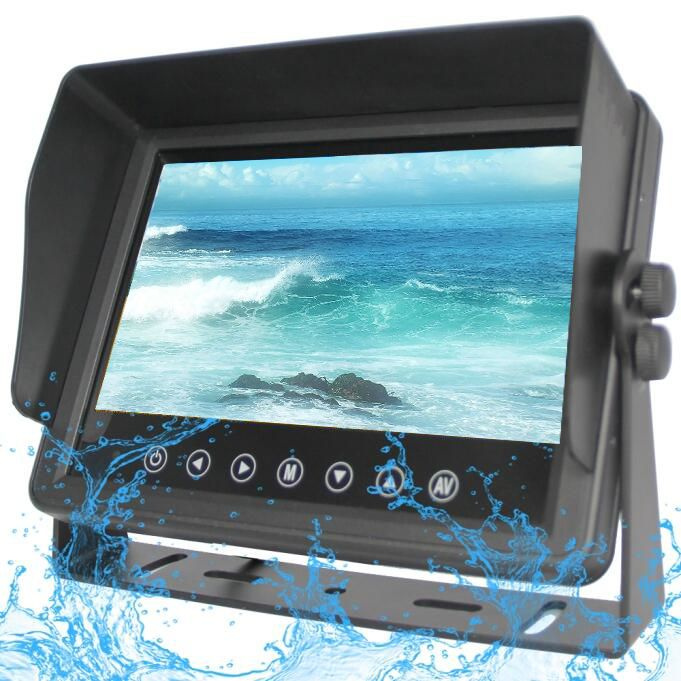

AHD-739WP is a revolutionary 720P HD waterproof monitor .
Compared with normal analog rearivew system , the AHD 7" rearview system has following advantage :
--High resolution 1024x600 7inch high brightness panel.
--waterproof monitor ,IP67
--Camera use best chip-- SONY IMX225LQR REFLECT CMOS 1/3" ,1280X720 or 1980x1024 resolution.
--Camera output 16:9 ration image to monitor , so image without any compression on horizontal direction like 4:3 ratio camera .
--Image quality (720P) is much clearly than best analog SONY CCD 700tvl rearview system.

monitor spec
Screen Size: 7inch 16:9
Resolution:1024X 600
Brightness :450cd/M2
Contrast: 500:1
Power input:DC12-36V
Touch button on front case
Standby bracket or U shape bracket for installation
AV input:2-4 channel ,could connect AHD 720P camera and analog camera mixure
Weight :about 400g
Operation temperature :-20~+70 ºC

camera spec
Image sensor : SONY IMX225LQR reflect CMOS 1/3"
resoution:1280x720 (720P) or 1980x1024(1080P)
illuminance :0.1lux with infrared for night vision
View angle :110 /170 degree horizontal view
image ratio:16:9
waterproof level: IP68
voltage input :DC12V
working temperature :-20~+70 ºC

Prod Model:	AHD-739WP
Warranty:	24 Months
Waterproof:	IP67
Placement:	Dashboard
Certification:	FCC
Voltage:	12/24V
Audio Output:	L/R Channel
Video Output:	S-Video Output
Resolution:	1024*600
Support Format:	Ahd 720p Input

Guangzhou Candid Co., Ltd. is a leading professional auto camera and LCD monitor system manufacturer in China.

Founded on 2003, we specialized in car reversing system developing, all our camera products are used in vehicles. Now our brand "CANDID" is No. 1 famous brand in China, we also exported to worldwide.

From 2008, we have got ISO9001, TS16949 certification, Also established a long-term and stable partnership with most of the domestic automotive manufactures, Such as China Toyota, Nissan, MAN, JAC, Brilliance. At present, among the top 20 domestic auto-manufacturers, of which 8 are our customers. Meantime, we have been approved to be the qualified supplier by the famous international automobile manufacturers.

We provide high quality customized services such as development, testing, consulting for the domestic and foreign customers.

We would like to provide OEM & ODM for customers, we have strong technology ability to do both hardware and software development.

Welcome to contact us.
