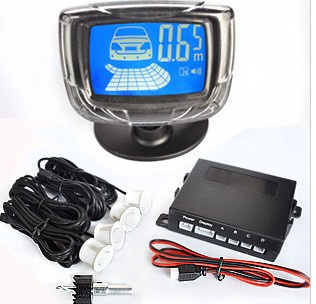

LCD Visible Parking Sensor (to be connected with camera)

Name: LCD Visible Parking Sensor (to be connected with camera)
Brand: ibuyautoparts.com
SKU: 696145145
Availability: InStock
Rating: 4.4 (28 reviews)

Price:	US $ 10-18set
Trade Terms:	FOB
Min Order:	100set
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Key Specifications/Special Features:

LCD display
Three back ground alarm colors Sensors itself can detect the fautly sensors if abnormal situation appeared
Direction indicator
Voice indicator Insert-in sensors optional
DangDang alarm sound
2 front sensors, 4 rear sensors, 6 sensors

Testing:
1. Connect the power wire of the control box correctly.
2. Connect the monitor with the control box. Put the shift lever to reverse gear to start the system up, and the monitor will send a sound
    of warning.For LED or LCD series, the displays show "--" or "." at the same time. It indicates the system is under detecting status.
3. After the installation of sensors, adjust the direction to the correct, then arrange the wires in good order. Connect one sensor with
    corresponding outlet in the control box. It can operate normally if person stands in 1.0M. Check each of the sensors separately
    according to this way. Then connect all of them with the control box.
4. Enter into the back gear to make the system working. Lay an obstacle behind the car, change the distance and orientation to test
    the system. If the system with 6~8 sensors is installed, switch off the power after finishing the test of reverse detection, move the
    obstacle to the front of the car, then apply the brake to test the front detection.
5. Notes:
    a. While the reverse gear is engaged, although to put on the brake, the system with 6~8 sensors only checks the place behind the
    car.
    b. Switch off the brake power, the system with 6~8 sensors will still keep working for 10 seconds.

Packing Box(Universal):

Prod Model:	P-003
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Auto Safety Parts:	Parking Sensor
Kind:	Obstacle Detection Radar
Test Distance:	2.5-0.2m
Certification:	RoHS
Working Principle:	Frequency Modulated Continuous Wave
Operating Temperature Range:	-20??C~+70??C

Guangzhou Wemaer Electronic Technology Co., Ltd. is a professional factory with R & D, production and sale of car camera, parking sensor, monitor, 360 full view control system...etc. The spirit of "People-Oriented, Quality Win, Integrity and Mutual Benefit, and Sustainable Management" is our business philosophy.

Our company was founded in 2010. Our customers are from all over the world. Our department of Research and Development has been growing very rapidly. Our staffs and workers are also more and more with the scale of our company is enlarged. We have our own brand and many patent certificates. Last year, we created our new product - 360 birdview control system with star night vision, which has become the leading model in the same industry.

With 2 new inventures joining in our company in 2016, Wemaer has been stronger and stronger. Our goal of sale in 2017 is RMB80, 000, 000.00. Everybody in our company has been working hard and trying our best to achieve this goal. We sincerely hope to get the suppots from our new and old clients, and will continue serve you all best!
