Waterproof Rearview Parking Car Camera (18.5mm butterfly)

Name: Waterproof Rearview Parking Car Camera (18.5mm butterfly)
Brand: ibuyautoparts.com
SKU: 815738165
Availability: InStock
Rating: 4.8 (143 reviews)

Price:	US $ 2.79-3.79/Piece
Min Order:	100/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

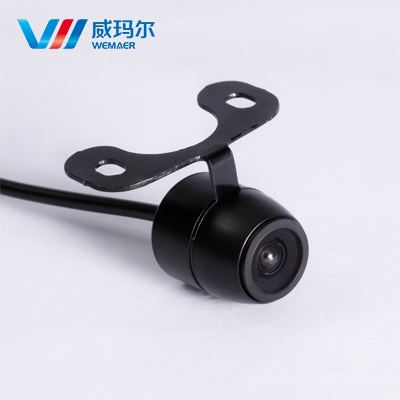

Waterproof Rearview HD vehicle general camera-Mini Butterfly

1.Product Features:
1) Original fitting by replacing the shelf of license light or Universal installation
2) Smart size for hidden installation.
3) 1/3"CCD
4) Lens: 170 degrees
5) Waterproof and dust-proof (IP68) CCD camera
6) With car reversing reference line(optional)CCD camera.
7) License light available on partial models.
8) Night vision available and high definition CCD camera.
9) Day /Night sensor for automatic adjustment, minimum illumination auto fill light.
2.Technical Parameters

Image Sensor	1/3color digital sensor
Image Format	NTSC 50HZ/PAL 50HZ
Effective Pixel	656*492
Waterproof Index	IP67
Viewing Angle	170degrees
Mimimum Illumination	0.1Lux
Storage temperature	-40ºC-85ºC RH95% MAX
Working Temperature	-30ºC-80ºCRH95% MAX
Working Humidity	0%-90%
Resolution	420 TV Lines
Power supply	DC12V+10%
Current consumption	No more 150mA
S/N radio	More than 48dB
Sync system	Internal
Warranty	12 months
Scanning system	2:1 interlace
Horizontal sync frequency	15625KHZ
AGC	AUTO
BLC	AUTO
Video output	1.0Vp-p, 75Ω

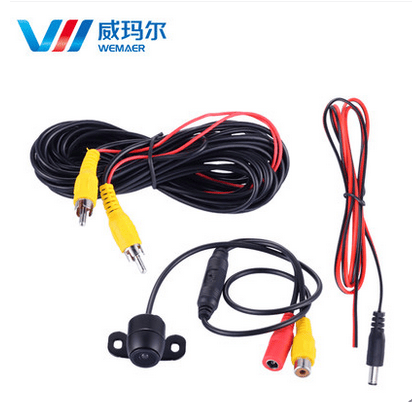

3.complete set of equipment
Accessories:
1) Two Screws and a shell
2) 6m video wire and 1.2m power wire or 6m BMW wire
3) A User Manual
4) Package box

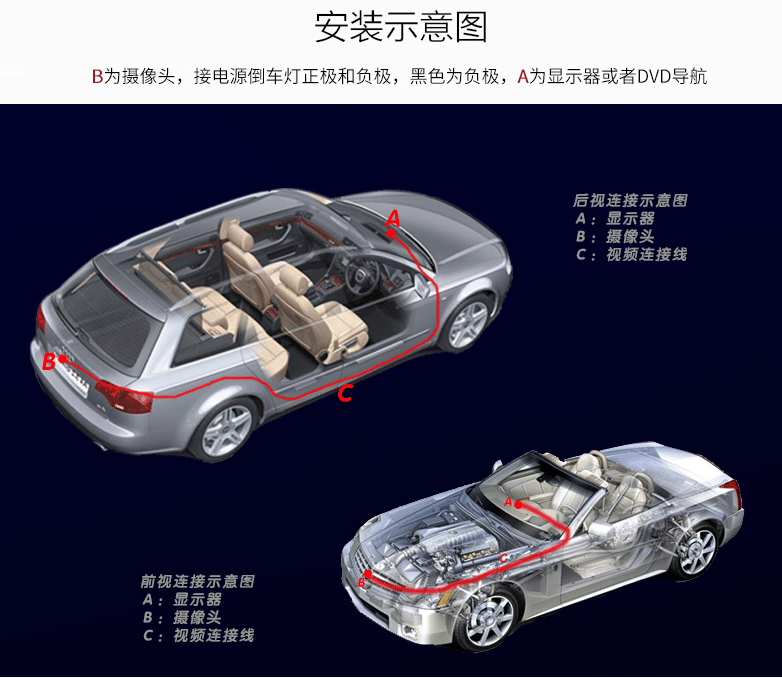

4.Installation guide:
A: Display screen or DVD navigation
B: Camera

Prod Model:	WMR-250
Mimimum Illumination:	0.1lux
Working Temperature:	-30ºC-80ºCrh95% Max
Storage Temperature:	-40ºC-85ºC Rh95% Max
Working Humidity:	0%-90%
Power Supply:	DC12V
Current Consumption:	150mA
Warranty:	12 Months
Sizes:	14.5mm 16.5mm 18.5mm
Wire Selection:	Universal Wire ; BMW Wire
Accessories:	Extention Wire; Screws; Shell;Package Box
Interface:	RCA
Definition:	420TVL
Chip:	CMOS
Waterproof Grade:	IP68
