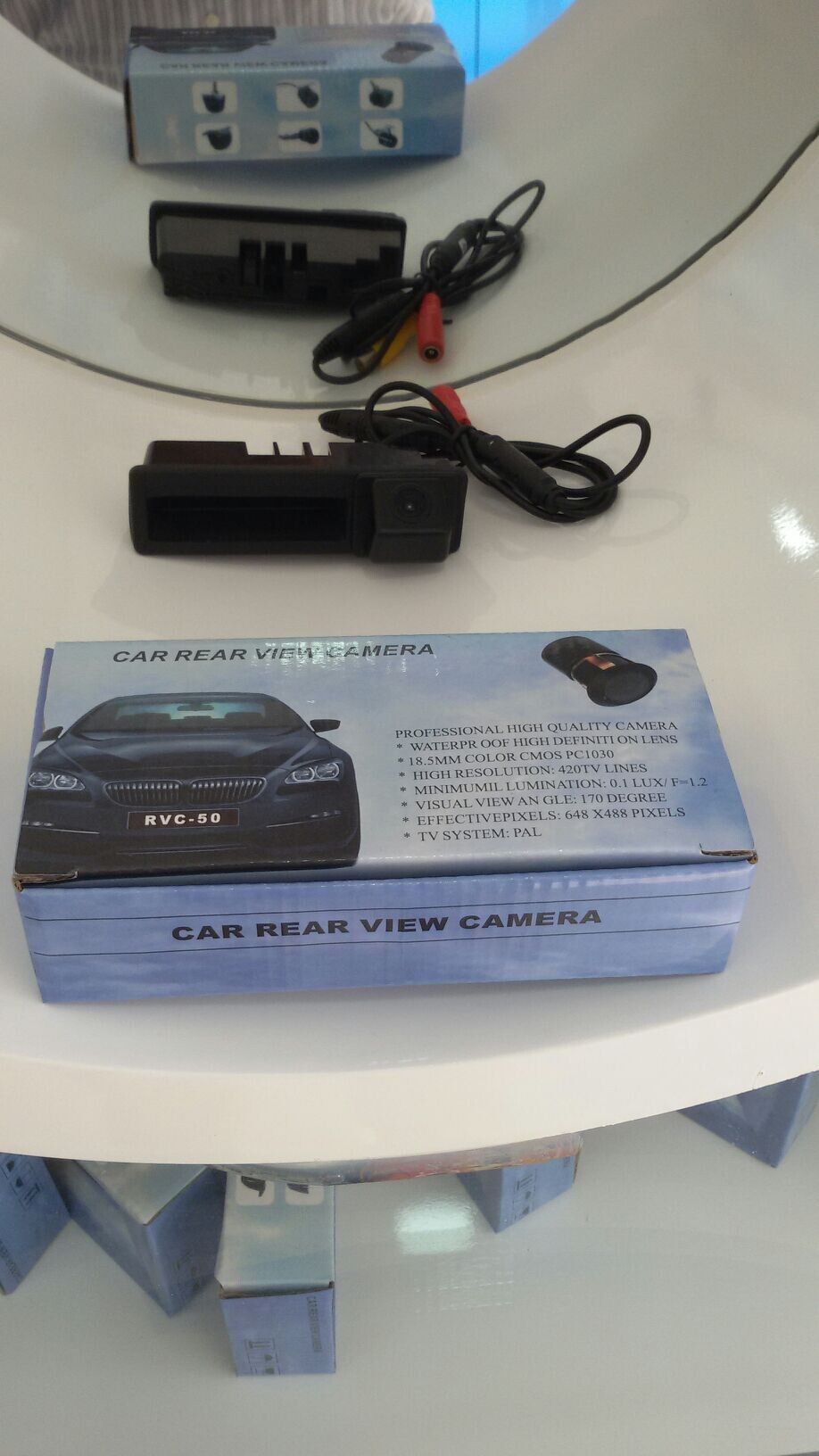

19.2mm Car Rearview Camera with 360 Degree Rotatable Head

Reversing Car Camera
1. CMOS
2. Color image day &night
3. Effective pixels: 480line
4. CE
5. 360 degree rotatable head
6. 18.5mm

Product Features:
1. Original fitting by replacing the shelf of license light or Universal installation
2. Smart size for hidden installation.
3.1/3"CCD
4. Lens: 170 degrees
5. Waterproof and dust-proof (IP68) camera
6. With car reversing reference line(optional) camera.
7. License light available on partial models.
8. Night vision available and high definition camera.
9. Day /Night sensor for automatic adjustment, minimum illumination auto fill light.

Installation Guides:
1. Get out the license light;
2. Get the rear view lens lines across the license light original position;
3. Fasten the camera with the buckle which place in the two sides of the camera;
4. Connect the lens built-in license light power lines to the original license light power lines;
5. Connect the reverse lens switching lines;
6. Connect the camera's signal line to the signal extension line;
7. Connect the car's reverse light line to camera's video cable;
8. Check if all lines are correct connected and arranged;
9. Debug the working effects of the camera and the license light;
10. Cover the car trunk. Finished.

Accessories:
1. General wire and power wire
2. User Manual

Technical Parameters:

Image Sensor 1/3" CCD

NSTC/TV System NTSC/PAL

Sync System internal

Minimum illumination < 1 lux

White balance Auto

IR LEDs No

Video color Colorful

Waterproof class IP67

Effective pixels 580(H)*540(V)

Resolution 420 TV lines

Sensing area 3.5964*2.7084mm

Video output 1.0Vp-p, 75Ω

Electronic shutter 1/60S-1/5000S

S/N ratio Better than 48dB

Lens angle 170 degree

Operation temperature -20° ~+70°

Storage temperature -30° ~+80°

Warranty 12 months

Packing Box(Universal):
