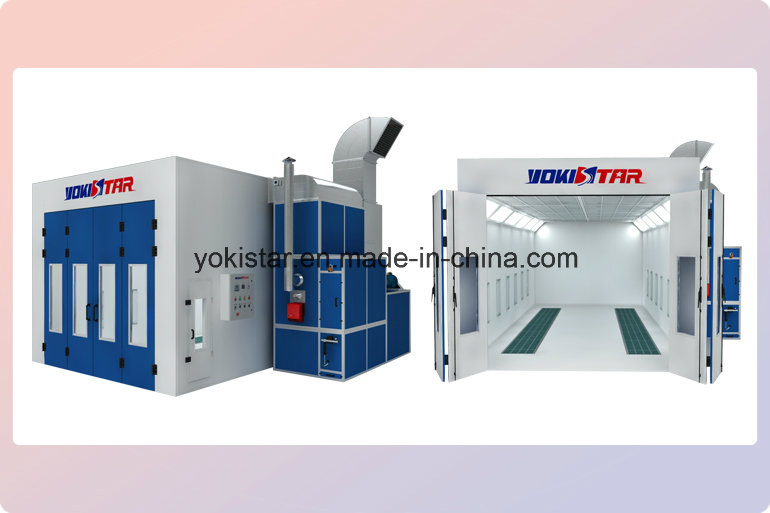

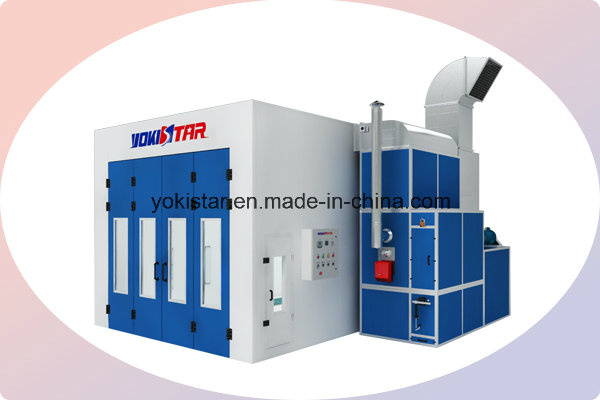

Large Bus Spray Paint Drying Oven
| Price: |
US $ 14400-18720/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |
Model: YS-TB9
Inside dimention:9200*4500*3500mm L*W*H
Any Size Requirements Can Be Met.
applied for large cars sprayingA. During painting, spray booth can offer a sealed environment with cleanness, safety and excellent lighting for the painting operation of all kind of components and different products.
B. During baking, drying time, temperature and humidity in spray booth can be set according to different paint materials to achieve a perfect high-quality spraying and baking for your cars.
C. Spray booth makes spraying and baking operation with no limits of all kinds of whether, thus ensuring physical fitness of operators and absolute safety of equipments.WarrantyThe goods are guaranteed for 24 months from the date of receipt, but the filters and lamps are not guaranteed. It cannot be applied for damages caused by negligence of operations or mishandling of the machine.YOKISTAR ProductsHigh quality and advanced technology are applied in YOKISTAR product ranges, involving automotive spray booth, bus and truck spray booth, prep station, mixing room, bench spray booth, open face spray booth and infrared curing lamp.
| Inside dimension | 9200 × 4500 × 3500 mm ( L × W × H ) |
| Outside dimension | 9344 × 6396 × 4100 mm ( L × W × H ) |
| Pit | 2 rows of pits in the ground for exhaust air. dimension of each pit is 6900 × 760mm (L × W), with galvanized grilles made by twisted steel and flat bar above. |
| Main door | Folding door, 3-folds, 3500 × 3400mm (W × H), galvanized steel frame, with polystyrene(EPS) inside, colour: blue |
| Escape door | 1 fold, 800 × 2000 mm (WXH), colour: white |
| Room body | Profiled bar beams in the roof to strengthen the room body; wall panel thickness: 70mm, width: 1150mm, tongue and groove structure, 0.426mm colour steel with polystyrene(EPS) insulation inside, colour: white |
| Lighting system | Ceiling Lights: 12Units× 4Pcs=48Pcs× 36W, with electronic ballasts. Side Lights: 12Units× 4Pcs=48Pcs× 36W, with electronic ballasts, vertically set |
| Generator setting | Intake air from side upper direction, exhaust air from back upper direction, quadrate steel frame, outside is white coated steel, inside is galvanized steel, filled with heat preservation material in the middle |
| Intake and exhaust air system(1 unit) | 2 × 7.5KW double-intake centrifugal fans for intake air, model YDW4.5M, air capacity is 21000m 3 /h for each fan; |
| 1× 11KW double-intake centrifugal fan for exhaust air, with motor outside, belt-drive, model TAE-710H, air capacity is 36000m3/h. Equip manual damper for exhaust air. |
| Heating system(1 unit) | RIELLO RG5S diesel burner, heating productivity: 260000 Kcal/h, stainless steel heat exchanger, pneumatic damper actuates from spraying to baking cycle. |
| Filtering system | Pre-filter, high efficiency filter(ceiling filter), exhaust fiberglass fiter, activated carbon filter. |
| Roof Plates | 50mm thick EPS heat preservation panels |
| Control bo x | Spraying, heat spraying, baking, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, ampere meter, voltmeter, hours meter, temperature limit controller, pressure gauge. Exhaust star-delta motor start. |
| Prod Model: |
YS-TB9 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Ventilation: |
Downdraft Airflow Way |
| Air Intake: |
2X7.5kw Double-Intake Centrifugal Fans |
| Air Exhaust: |
1X11kw Double-Intake Centrifugal Fan |
| Heating: |
Riello Rg5s Diesel Burner |
| Voltage: |
1X220V, 3X380V, Your Special Voltages Are Accepted |
| Optional Colour: |
White, Blue, Orange and Red |
| Port: |
Huangpu Port or by Your Order |
| Main Products: |
Spray Booth, Prep Station, Infrared Curing Lamps |
| Certification: |
CE |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Type: |
Spray Booth |
| Substrate: |
Steel & Aluminum |
| Brand: |
Yokistar |
| Coating: |
Painting & Powder Coating |
| Airflow Direction: |
Downdraft Airflow Way |
