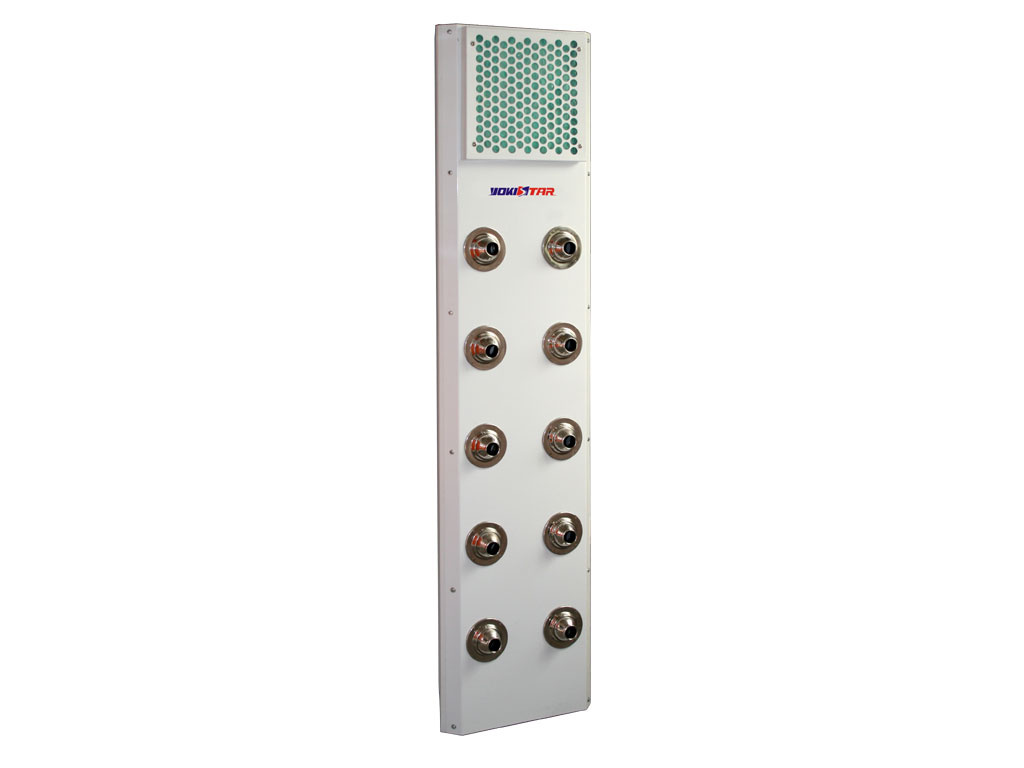

Model: YS-WB
Dimention: 400*400*1600-400*400*1800mm L*W*H
Designed specially for water painting, environmental friendly
A. Waterborne paint rapidly drying system is made up of special mute fan, air-proof air filter pipe, with multi-direction adjusting stainless nozzles.
B. Waterborne paint system has greatly sped up the leveling of waterborne paint and baking time. It also save energy, promote production, and clean air environment.
C. Leveling time can be reduced up to 50%, energy saving for repair can reach 30%.
Warranty
The goods are guaranteed for 24 months from the date of receipt, but the filters and lamps are not guaranteed. It cannot be applied for damages caused by negligence of operations or mishandling of the machine.
| Specification of Waterborne Paint System |
| | YS-WB-A | YS-WB-B | YS-WB-C | YS-WB-D |
| Body | Made by 1.5mm steel plate, powder coated. Colour: white | Made by quadrate steel, powder coated. Colour: white |
| Nozzles | 10pcs nozzles for each box, diameter of nozzles is 30mm | 18pcs nozzles for each unit, diameter of nozzles is 30mm | New style jet, each box has 2 nozzles |
| Ventilation System | Top intake, bottom blow, single-intake centrifugal fan, air capacity: 1400 m 3 /h | Intake through fan and duct, body blow, 2 boxes with one single-intake air centrifugal fan, air capacity:3300m3/h | Intake through fan and duct into airproof pipe, body blow, one single-intake air centrifugal fan, air capacity:3300m3/h | Take high pressure air produced by air compressor as power air, fresh air inside booth as blowing air, air capacity of each nozzle is 900 m 3 /h |
| Filtering System | Intake fibreglass filter. | Intake pre-filter | |
| Control System | fan operation | nozzles switch. |
| Installation Statement | Installed in the corner, usually 4 pcs as 1 unit. Its also optional, each unit can work separately(installed in the middle of side wall is also available). | Installed in ceiling side of spray booth, integrated with ceiling lights. | Working as partial waterborne paint curing system, its movable at will. |
| Working Principle Statement | Waterborne paint is solvent in pure water, which has safe, environmental protective advantage compared to normal paint. But the volatility of pure water is not good, so we develop waterborne paint system. High speed airflow from nozzles of this system can fasten air speed of painting goods surface so as to dry water from paint fleetly. |
