Infrared Spray Paint Booth with Basement Wld6000
| Price: |
US $ 8290-8780/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
T/T,Western Union,Money Gram |

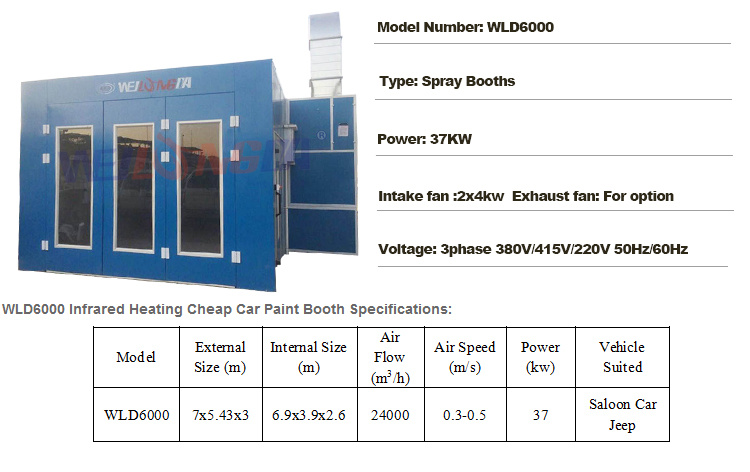

| External Size:(mm) | 7000x5430x3000 | Front Door:(mm)
Powder Coating Frame | 3000(w)x2600(h) |
| Internal Size:(mm) | 6900x3900x2600 | Total Power:(kw) | 37 |

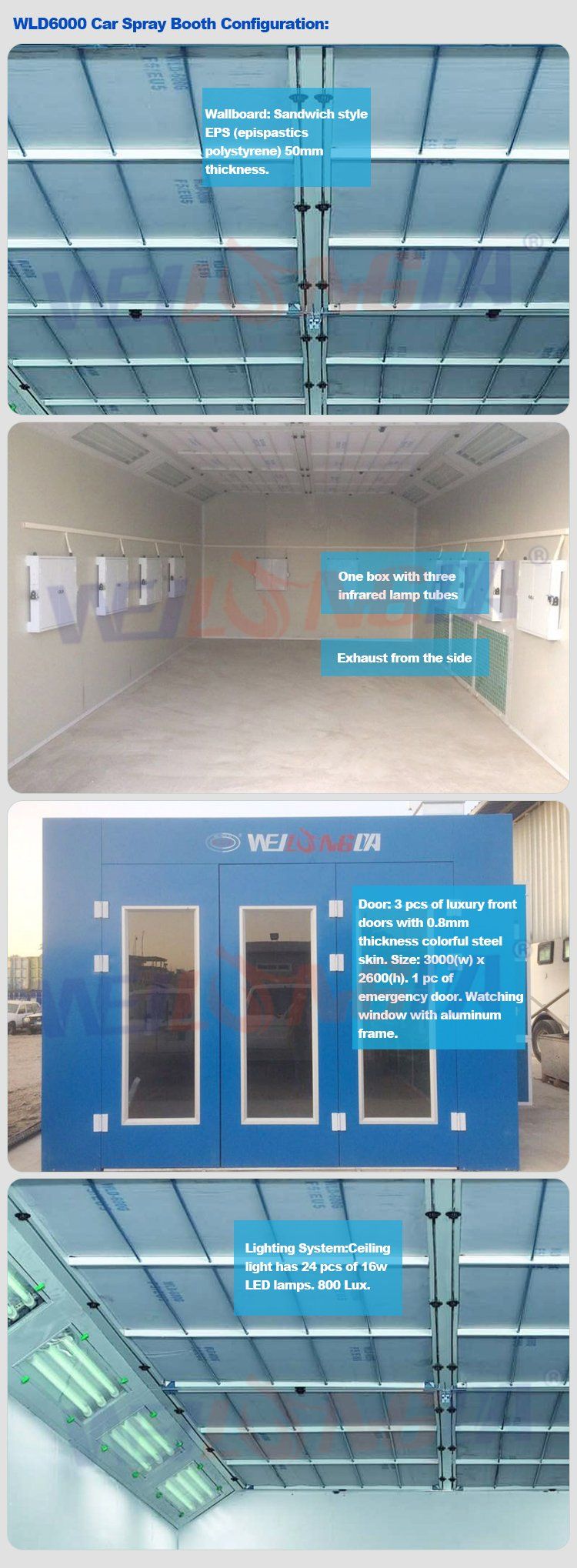

| Cabin System | Wallboard | Sandwich style EPS (epispastics polystyrene) (Rock wool and PU are optional )50mm thickness, High quality galvanized steel roof panel. |
| Basement | No. |

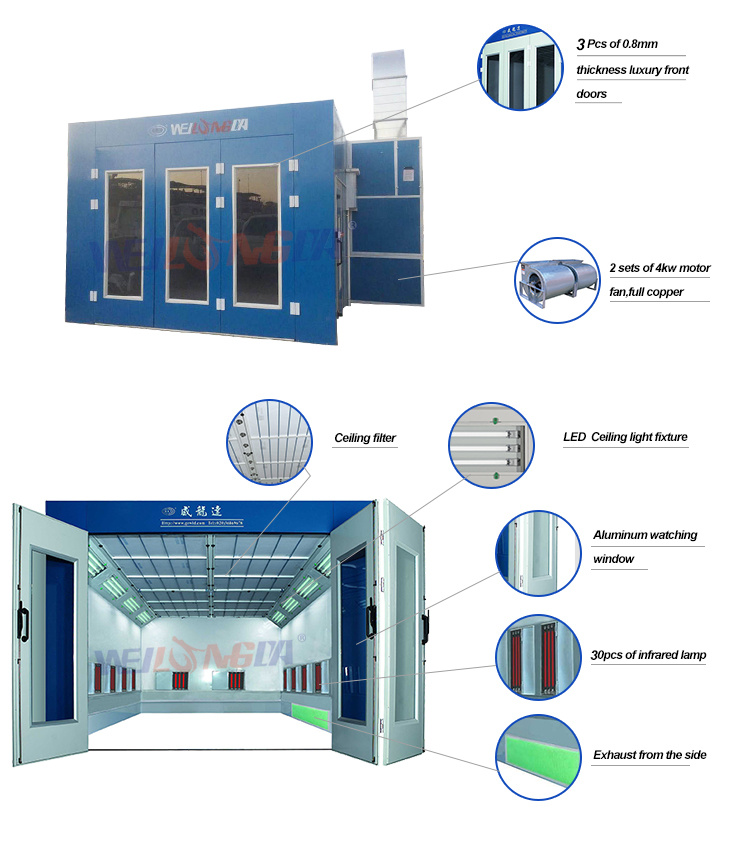

| Door | 3 pieces of powder coating front doors. Size: 3000(w)*2600(h). 1 piece of emergency door. |
| Air Circulation System | Intake Fan | 2x4kw intake fan. Manual damper. Siemens technology production, large air volume and low noise. Air flow: 24,000m3/h.No exhaust fan |
| Air Pipe | Made of Galvanized steel sheet consisted of 4 pieces of straight pipe750*750*1000, and 1piece of elbow. |
| Heating System | Infrared lamp | Consist of 10 boxes,each set have a cover, a stainless steel mirror reflector and 3 tubes, total 30 infrared tubes. Infrared Heat radiation have a feature of high penetration, efficient, no noise, pollution free etc. |
| LED Lighting System | Light tube | Ceiling light has 24 pieces of 16w LED lamps. 800 Lux. the grade of lighting box's dustproof and waterproof reach IP54 grade. |
| Filtering System | Pre-filter | Grade G2 plate type fiber glass filter; Dual filtering structure. The
Pre-filter can capture granules larger than 10μm. |
| Ceiling filter | EU5 grade high efficient filter; Ceiling filter capture granules bigger than 5μm.The air cleanliness in the working environment can reaches 98%. |
| Control system | Control panel | Microcomputer control system |
| Function | Painting, constant temperature painting , drying, lighting, painting time and drying time setting ;emergency stop switch, failure indication etc, especially with over-temperature and over-pressure alarm device. The electricity will be cut off once alarm devices alert. It makes our booth very safe. |
| Prod Model: |
WLD6000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| External Size: |
7000*5450*3300 |
| Certification: |
CE |
| Airflow Direction: |
Cross-flow Type |
| Heating Mode: |
Electric |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Substrate: |
EPS |
| Brand: |
Weilongda |
