Prod Model: |
JZJ-9200 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Color: |
Sea Blue, Red, Orange, White |
Certification: |
ISO9001 |
Airflow Direction: |
Fully Undershot-type |
Heating Mode: |
Infrared Ray |
Paint Mist Treatment: |
Dry-type |
Condition: |
New |
Product Description
Company Introduction Jiangsu Jingzhongjing Industry Coating Equipment Co.,ltd, established in 2007,locates in the Yangtze River Delta Economic Zone, China Industrial Painting Base - Yancheng city, Jiangsu Province. We have the plant area of 99000m2, garden-style industrial zone. We specialize in design, produce of the equipments of automobile spray booth, automobile Metal collision painting line, prep-station, shower test booth, sand blasting booth, shot blasting machine. Our annual production capacity can achieve 2,500 sets paint booth.
Our products have passed the ISO9001, CE, match the Australia standard AS/NZ 4114-2003. Our spray booths have been shipped in the domestic 34 provinces and more than 50 countries like Germany, Japan, Russia, Australia, Sweden, Finland etc. Welcome all the distributors and customers join with us! Product DescriptionModel: JZJ-9200 Infrared Heating System Automobile Spray Booth

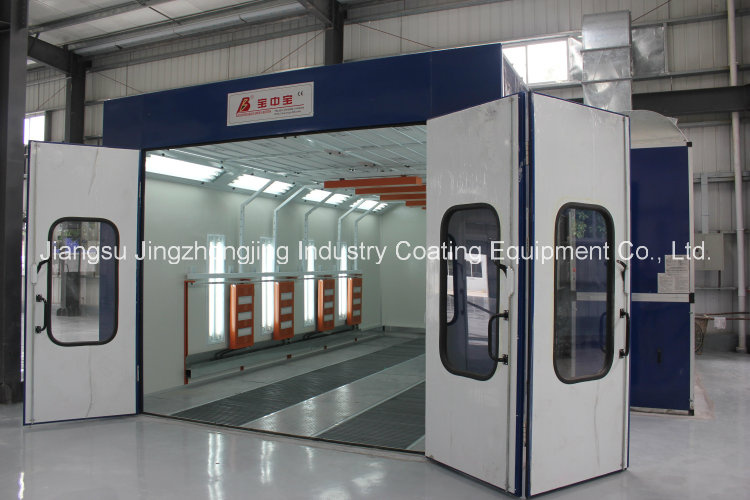

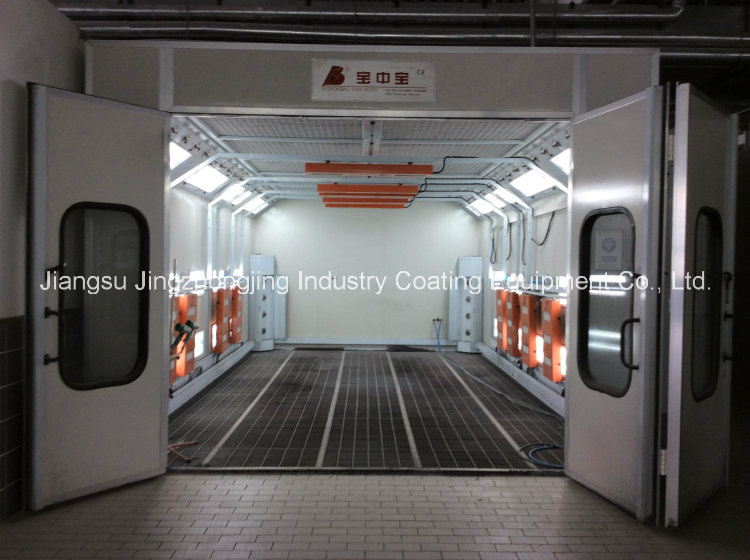

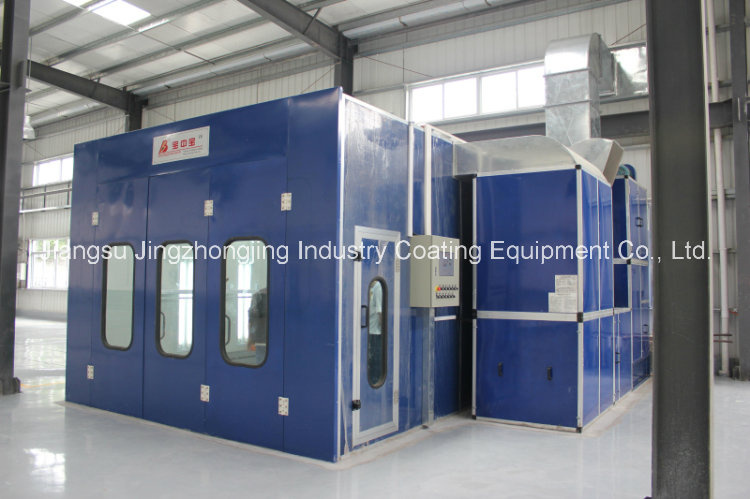

Product Pictures
Features1. Economic type.
2. External lighting.
3. Proof-explosion motors.
SpecificationsOutside Dimension (mm) | 7006*5556*3450(L*W*H) | Inside Dimension(mm) | 6900*4000*2650(L*W*H) |
Front Door(mm) | 3000*2600(W*H) | Service door (mm) | 1800*650(W*H) |
Total Power | 38KW |
Cabin system | Wall panel | 50mm EPS sandwich panel, steel sheet thickness: 0.426mm |
Basement | 300mm depth, middle with grids, side with checkered plates. |
Ceiling panel | 0.8mm Galvanized steel sheet. |
Ramps | Two pieces 2100*900mm ramps |
Glass | 4mm safety tempered glass |
Windows | Square glass windows |
Air Make-up System | Air Inlet fan system | 2*4kw centrifugal fan |
Exhausted fan system | For option |
Ai capacity | 24000m3/h |
Air Flowing speed | 0.25m/s in empty booth |
Exhausted ducting | 4meters straight ducting, one 90°elbow and one 30°elbow. |
Purification System | Pre-filter | G3 grade, Pockets |
Ceiling filter | EU5 / F5 |
Floor filter | green fiber glass filter / G3 grade |
Exhausted fan Filters | green fiber glass filter and active carbon |

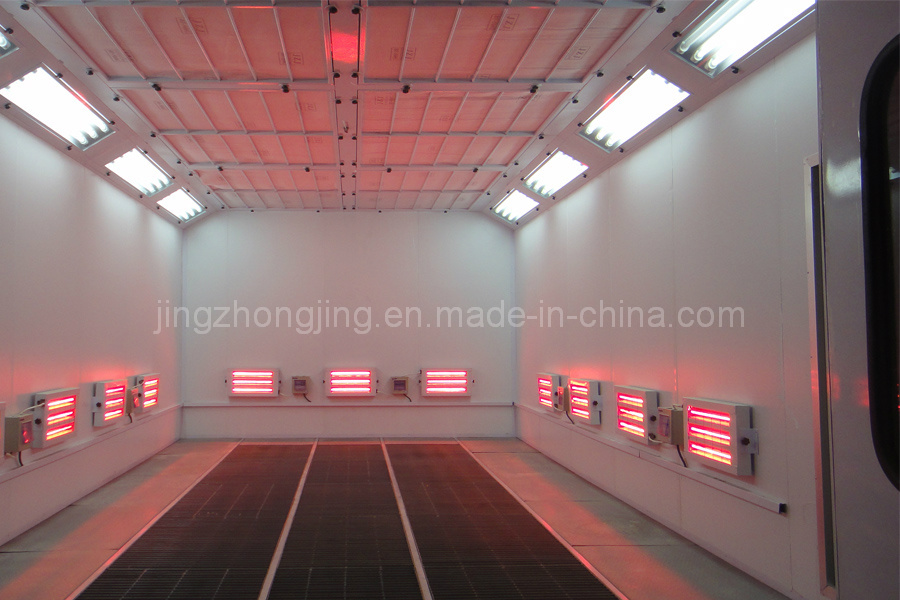

Heating System | Infrared heating system | 10 Units 3000W Infrared heating lamps, Total: 30KW |
Max Temperature | 80degrees |
Lighting System | Ceiling lights | 8 Units, each 4 x 36W Philips lamps. Total 1152 W |
Side lights | For option |
Illumination | 900LUX |
Controlling system | Switched control panel | Spraying & baking switch, lighting switch, emergency stop, breakdown alarm, failure alarm, pressure gauge |
Our Service1. 24 months warranty time
2. Customization accepted
3. OEM accepted
4. Detailed installation drawings and video will be provided. If needed, we also have special experienced installing staff can go abroad to help customers install and check spray booth.
5. Prompt after-sale service. We have established perfect after-sale service system. If needed, our staff will arrive in 72 hours to repair products.If you have interest in any of our products, please kindly contact us. If you have any questions or doubts, please also feel free to contact us.
