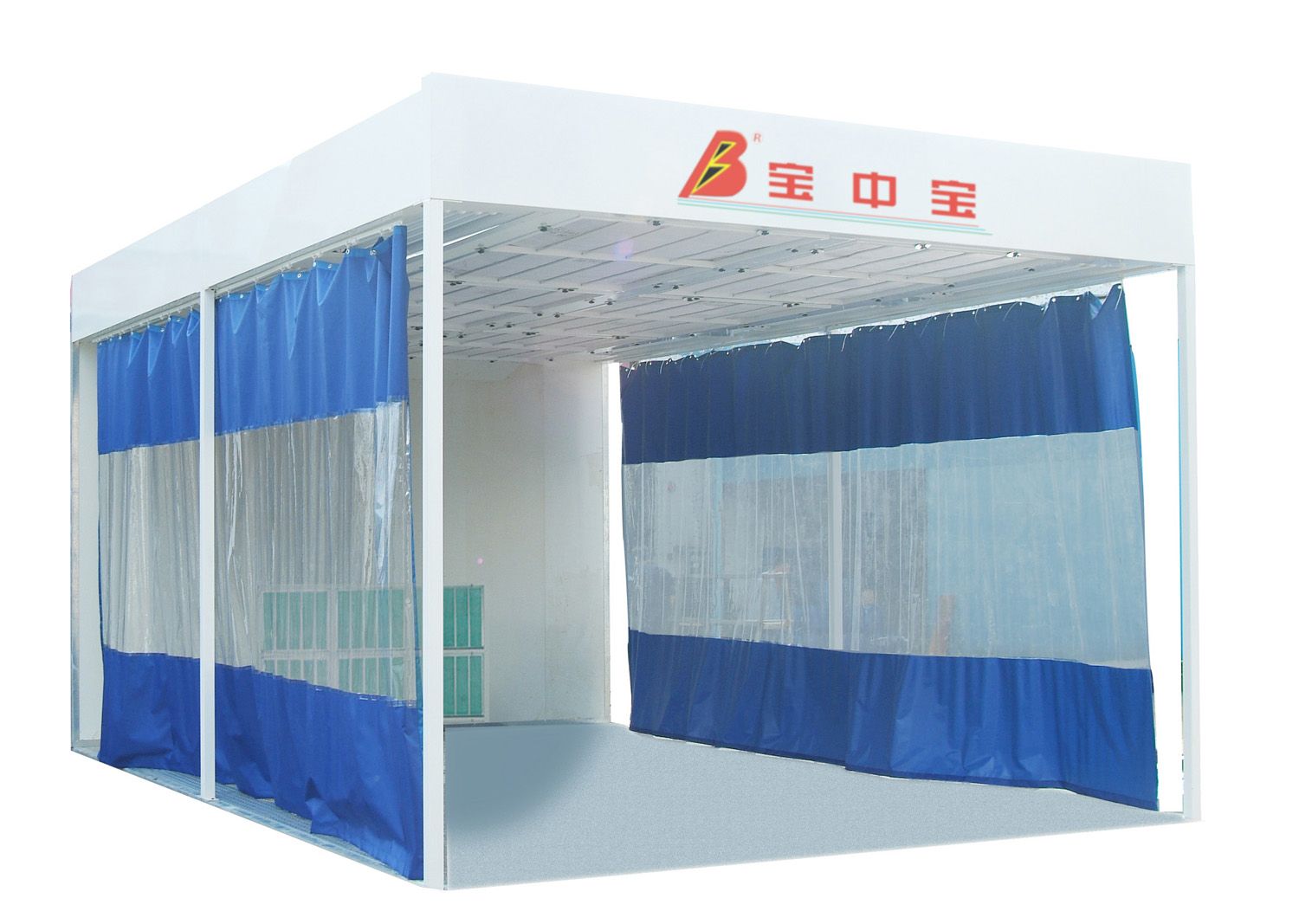

High Quality Link Prep Station in China Gold Supplier

Large-scale industrial used industry Painting production line, Shower examination line, Spray booth, Lift, Paint Mixing Room, Platnum Mainenance system, Prep Station booth, Prep Station Room, Prep Station production workshop and so on, each kind of non-sign engineering facilities product; May according to the customer demand design, the production, make each kind especially, big, heterogeneous Spray the Booth room and the industry spray coating work assembly line, measures the body to have custom-made, understood in detail this company product information and the technical parameter, please send a telegram the company information department, the technical department.

SPECIFICATON:
Outside dimension:     L7550*W3550*H3150mm
Inside dimension:      L6300*W3450*H2700mm
Plenum dimension:     L6400*W3550*H450mm
Basement:            without basement and floor
Illumination system:    ceiling light:36W*4*8units=32pcs;power:1.15KW
Glass:               tempered glass
Air ventilation system: 1. 5.5kw one set inner motor centrifugal fan with air volume 15400m3/h
                               2. generator cabin dimension:L3500*W1200*H1850mm
                               3. electric damper to control the air inlet and outlet volume

Cabin system:        1. air intake plenum is made of cold-rolled sheets
                               2. Ceiling boards are made of galvanized steel sheets
                               3. PVC manual curtains around the sides and slipping on the aluminum alloy rails
                               4. 50mm EPS panels at the back wall

Generator system:      rear exhaust;square tube frame;power coated
Heat system:          without
Filtration system:      primary filter;ceiling filter;glass fiber filter
Control system:        controls fan, electric damper, and illumination only
Installation way:       sling hoist or square tube support
Voltage frequency:     380V/3P or 220V/1P, 50Hz
Total power:          7KW
