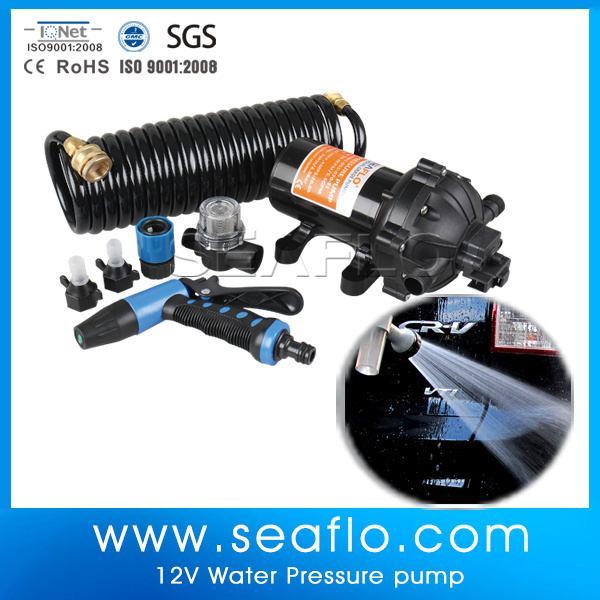

High Pressure Pump for Car Washing Machine

Car Washing Machine
5.0GPM 70PSI

Application
Agriculture/Yacht / RV/Caravan pressurized water system
Cleaning machine, Humidifier, Water purification, Medical apparatus
Any other pressurization system

Backed SEAFLO's 1-Year Warranty!
Colors: Black or required

How a Diaphragm Pump Works
The pump is driven by an AC or DC motor

In front of the motor is a valve assembly containing two to five valve pump chambers. Each valve chamber has a diaphragm behind it in the lower pump housing. As the motor shaft turns, an internal cam positioned behind the diaphragms causes the diaphragms to be pushed forward, then back in a continuous sequence creating a suction. As this suction builds, fluid is pulled through the inlet, through the various valve chamber check valves to the outlet

The volume of flow is determined by several factors including: The number and size of the pump chambers, cam offset, operating pressure, fluid viscosity

Motor Voltage	12/24V DC
Type	3 chamber diaphragm pump, self priming, capable of being run dry
Mode	Demand or bypass
Certifications Option	CE Approval
Liquid Temperature	140°F (60°C) Max.
Priming Capabilities	6 feet (1.8 m)
Max Pressure	45psi (3.1bar)
Max Flow rate	11.6lpm (3.0gpm)
Thermal Overload Protected	Start working when temperature reach 90°C(+-10%)
Inlet/Outlet Ports	10/13mm pyramid hose barb, 13mm angle hose barb, 1/2 NPT thread filter for your choice.
Duty Cycle	Intermittent (under different pressure the continuous working time will also be different)
Motor options	2 pin connector
	On/off switch



Model	Switch	GPM/LPM	PSI/BAR	Max Draw (A)	Valves	Diaphragm	Ports	Voltage	Wire Connections
SFWP1-050-070-51	Demand	5.0/18.9	70/4.8	18	EPDM	Santoprene	1/2"-14 MNPT	12V	2-Pin/Leads
SFWP2-050-070-51	Demand	5.0/18.9	70/4.8	9	EPDM	Santoprene	1/2"-14 MNPT	24V	2-Pin/Leads
SFWP1-030-070-33	Demand	3.0/11.6	70/4.8	10	EPDM	Santoprene	1/2"-14 MNPT	12V	2-Pin/Leads
SFWP2-030-070-33	Demand	3.0/11.6	70/4.8	5	EPDM	Santoprene	1/2"-14 MNPT	24V	2-Pin/Leads

1. What is your MOQ?
100 pieces in general, but we also sale about 10--50 pieces for new costumers for their sample testing.

2. What about the delivery time?
It depends on your order quantity; it usually takes 15-25days upon receipt of your 30% deposit by T/T.
Sample can be delivered within 7days.

3. Can I buy different types in one container?
Yes, you can mix different types in one container.

4. Do you have oversea agents?
1. Of course. We have many agents overseas, such as Dacon Europe A/S in Denmark, A P Lifting Gear Company LTD in United Kingdom, SEAFLO MARINE & RV NORTH AMERICA, LLC in United States, Bin Alshaikh Abobaker for Treading in Yemen, Williams Industrial Products Pty Ltd/Marine Systems Australia and SEAFLO AUS pty in Australia, Azzi Sport Marine S.A.R.L in Lebanon, SARAY DENIZ MALZEMELERI YATCILIK SAN.TIC.LTD.STI in Turkey, RECAMBIOS MARINOS S.L in Spain, DINO CO.,LTD in South Korea.
2. Welcome oversea agents!

5.Do you accept OEM/ODM
Yes. We are also the OEM supplier of many famous companies, such as WALMAT.

6. What is your terms of payment.
T/T, 30% in advance, balance against B/L copy.

7. What is your warranty?
5 years, and within 24 hours reply will be provided to solve customers' problems.

8. What is your port of loading?
Fuzhou Port.
