Automatic Car Wash Machine Price Kit with Pump

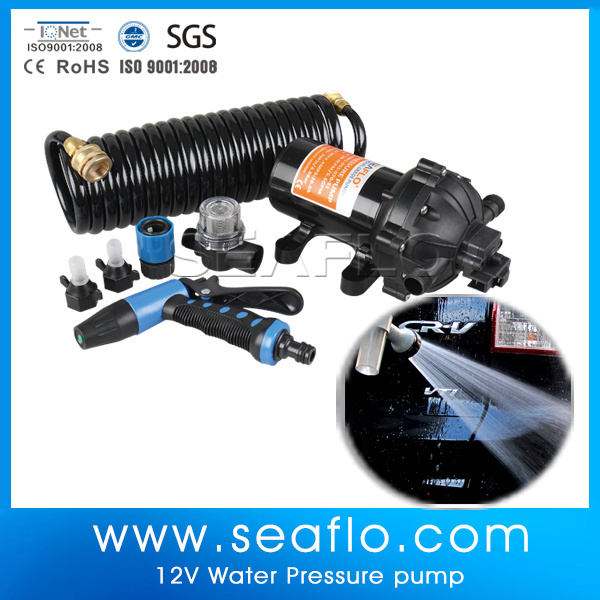

Name: Automatic Car Wash Machine Price Kit with Pump
Brand: ibuyautoparts.com
SKU: 739319285
Availability: InStock
Rating: 5 (96 reviews)

Price:	US $ 49/Set
Trade Terms:	FOB,CFR,CIF
Min Order:	24/Set
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Automatic Car Wash Machine Price
5.0GPM 70PSI

Application
Agriculture/Yacht / RV/Caravan pressurized water system
Cleaning machine, Humidifier, Water purification, Medical apparatus
Any other pressurization system

Backed SEAFLO's 1-Year Warranty!
Colors: Black or required

How a Diaphragm Pump Works
The pump is driven by an AC or DC motor

In front of the motor is a valve assembly containing two to five valve pump chambers. Each valve chamber has a diaphragm behind it in the lower pump housing. As the motor shaft turns, an internal cam positioned behind the diaphragms causes the diaphragms to be pushed forward, then back in a continuous sequence creating a suction. As this suction builds, fluid is pulled through the inlet, through the various valve chamber check valves to the outlet

The volume of flow is determined by several factors including: The number and size of the pump chambers, cam offset, operating pressure, fluid viscosity

Motor Voltage	12/24V DC
Type	3 chamber diaphragm pump, self priming, capable of being run dry
Mode	Demand or bypass
Certifications Option	CE Approval
Liquid Temperature	140°F (60°C) Max.
Priming Capabilities	6 feet (1.8 m)
Max Pressure	45psi (3.1bar)
Max Flow rate	11.6lpm (3.0gpm)
Thermal Overload Protected	Start working when temperature reach 90°C(+-10%)
Inlet/Outlet Ports	10/13mm pyramid hose barb, 13mm angle hose barb, 1/2 NPT thread filter for your choice.
Duty Cycle	Intermittent (under different pressure the continuous working time will also be different)
Motor options	2 pin connector
Motor options	On/off switch

Model	Switch	GPM/LPM	PSI/BAR	Max Draw (A)	Valves	Diaphragm	Ports	Voltage	Wire Connections
SFWP1-050-070-51	Demand	5.0/18.9	70/4.8	18	EPDM	Santoprene	1/2"-14 MNPT	12V	2-Pin/Leads
SFWP2-050-070-51	Demand	5.0/18.9	70/4.8	9	EPDM	Santoprene	1/2"-14 MNPT	24V	2-Pin/Leads
SFWP1-030-070-33	Demand	3.0/11.6	70/4.8	10	EPDM	Santoprene	1/2"-14 MNPT	12V	2-Pin/Leads
SFWP2-030-070-33	Demand	3.0/11.6	70/4.8	5	EPDM	Santoprene	1/2"-14 MNPT	24V	2-Pin/Leads

Prod Model:	SFWP2-050-070-51
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product:	Automatic Car Wash Machine Price
Voltage:	24V
Flow Rate:	18.9lpm/5.0gpm
AMPS:	9.0A Max
Duty Cycle:	Intermittent
Diaphragm:	Santoprene
Pressure:	70psi/4.8bar
Connection:	1/2" Hose ( 13 mm)
Structure:	Diaphragm Pump
Performance:	No Leakage Pump
Fuel:	Electric
Condition:	New
Application:	Clarified Water Pump
Certification:	Ce, ISO9001:2008, RoHS
Material:	Stainless Steel

Who we are

. Mini Pump Specialist

. Injection Molding Designer

. Electric sprayer provider

. Original Equipment Manufacturer

Fuan Aidi Electric Co. Ltd, established in 2004, located in Qinxiyang Industrial pack, Fuan city, which is well known as "city of electric machinery and appliances" in China. We are a modern enterprise dealing with developing, manufacturing and selling of Motor, water pump, outdoor electric appliance, drainage system of yachts and complete set of equipment.

We established excellent and high efficient working team based on People-oriented, Quality-oriented management...We follow "Quality is the root, customer is the tenet" and supply the quality product and circumspect service wholeheartedly.

"SEAFLO" brand DC diaphragm pump, DC bilge pump, livewell pump, paddle are exported to more than 30 countries including USA, UK, Germany, France, NETHERLAND, Greece, Italy, Spain Turkey, Brazil. Our products deserve high reputation among our clients due to the top quality and competitive price.

We focus on the product quality, promote work efficiency and improve the service quality. The whole staff will make unremitting endeavor to develop high quality product which meets the client and market's requirement, bring back a report to every client from domestic and abroad who always support and pay close attention to the development of the company.

Fuan Aidi Electric Co. Ltd sincerely welcome friends both domestic and abroad to work and create splendent future together!
