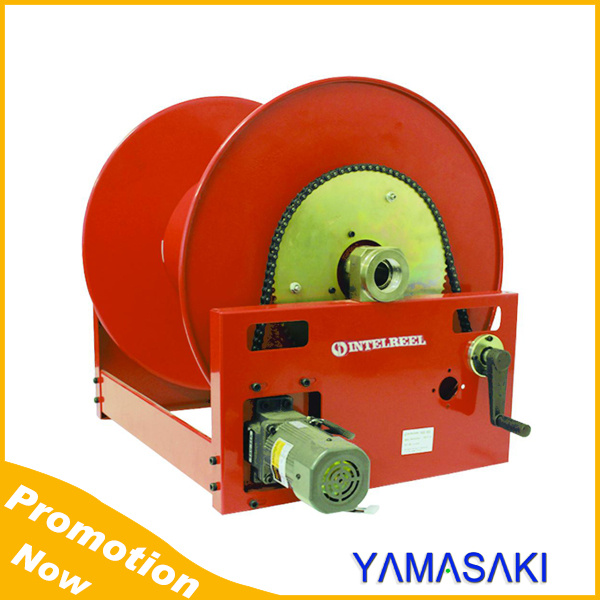

Heavy Duty Carbon Steel Large Frame Hose Reel

Name: Heavy Duty Carbon Steel Large Frame Hose Reel
Brand: ibuyautoparts.com
SKU: 765653095
Availability: InStock
Rating: 4.7 (55 reviews)

Price:	US $ 255-300/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Features of reel
Series 500 is large frame hose reel and is heavy duty carbon steel reel with powder coat finish.
The reel is powered via pitch chain and sprockets. Usually butt 1 inch diameter hose length
ranging from ten meters or tens of meters up to hundreds of meters away. In the production line
filling material aspects, the large flow of gas operating equipment, the bulk cost of oil collection
and replacement of vehicles, sewer clean-up equipment, municipal sanitation vehicles, fire-fighting equipment offshore oil drilling platform
Rewind: Pitch chain or gear and sprocket drive powered by A.C or D.C electric motor, compressed
air motor or hydraulic motor.
Fluid path: 1", 11/4", 11/2"
The Specifications:

Appilication	Pressure Mpa(psi)	Hose inner dia. mm (In)	Hose length m (ft)	Reel inlet	Reek outlet	Pin No. (with hose)	Pin No. (without hose)
Air/Water/Anti-freez Air/Water/Oil	2(300)	25(1)	50(165)	1"	1"	-	500020700
Air/Water/Oil	2(300)	32(1 1/4)	35(115)	1 1/4"	1 1/4"	-	500020800
Air/Water/Oil	2(300)	38(1 1/2)	30(100)	1 1/2"	1 1/2"	-	500020900
Air/Water/Oil	8(1160)	25(1)	50(165)	1"	1"	-	500080700
Air/Water/Oil	6(870)	32(1 1/4)	35(115)	1 1/4"	1 1/4"	-	500060800
Air/Water/Oil	5(730)	38(1 1/2)	30(100)	1 1/2"	1 1/2"	-	500050900
Air/Water/Oil	2(300)	25(1)	50(165)	1"	1"	-	EM500020700
Air/Water/Oil	2(300)	32(1 1/4)	35(115)	1 1/4"	1 1/4"	-	EM500020800
Air/Water/Oil	2(300)	38(1 1/2)	30(100)	1 1/2"	1 1/2"	-	EM500020900
Air/Water/Oil	8(1160)	25(1)	50(165)	1"	1"	-	EM500080700
Air/Water/Oil	6(870)	32(1 1/4)	35(115)	1 1/4"	1 1/4"	-	EM500060800
Air/Water/Oil	5(730)	38(1 1/2)	30(100)	1 1/2"	1 1/2"	-	EM500050900

Prod Model:	Series 500
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Drive Type:	Spring
Spring Brand:	Kern-Liebers
Construction:	All Bolted Unitized
Mounting:	Floor, Wall, Bench, Truck
Inlets:	1/4", 5/16", 3/8", 1/2",3/4",1"
Material:	3.0mm Cold Steel
Surface Finish:	Powder Coated
Color:	Red
