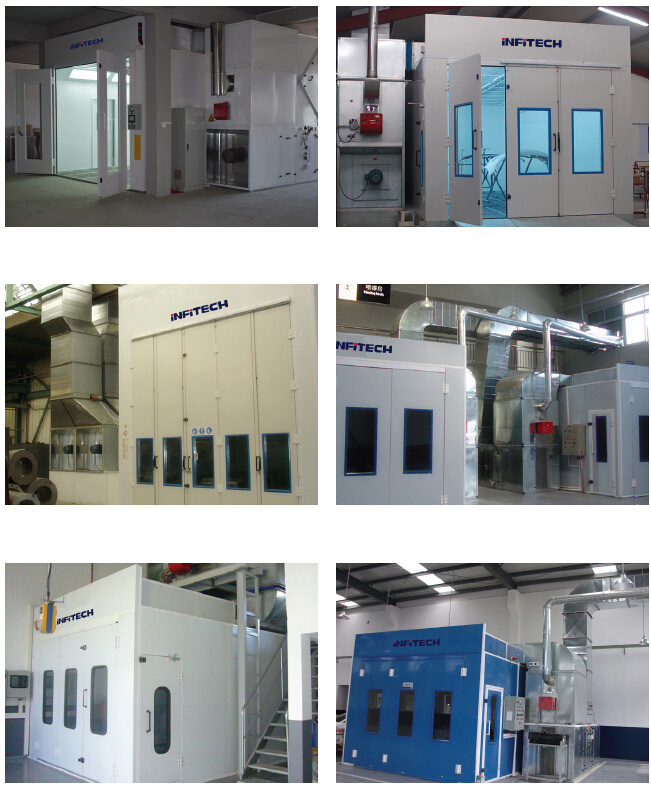

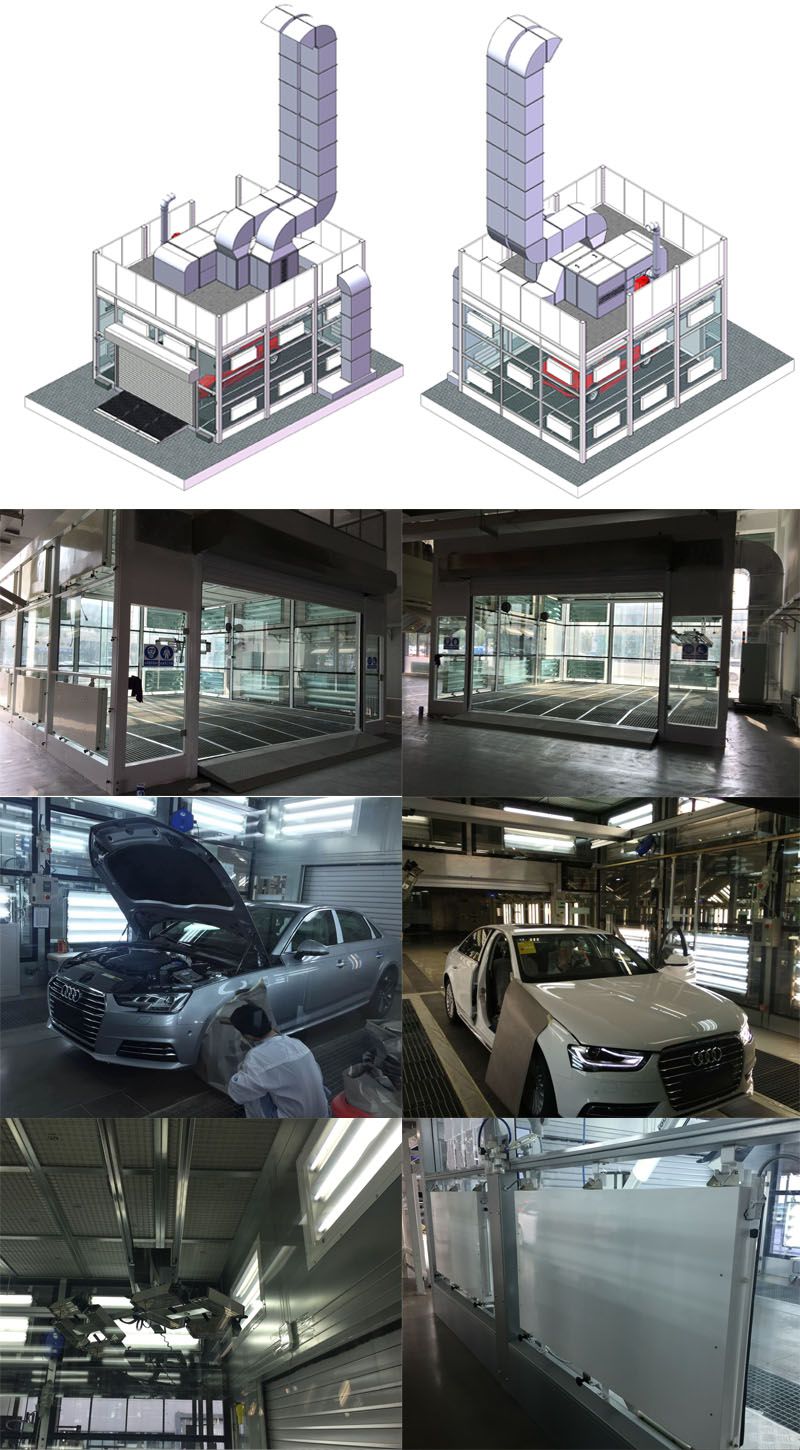

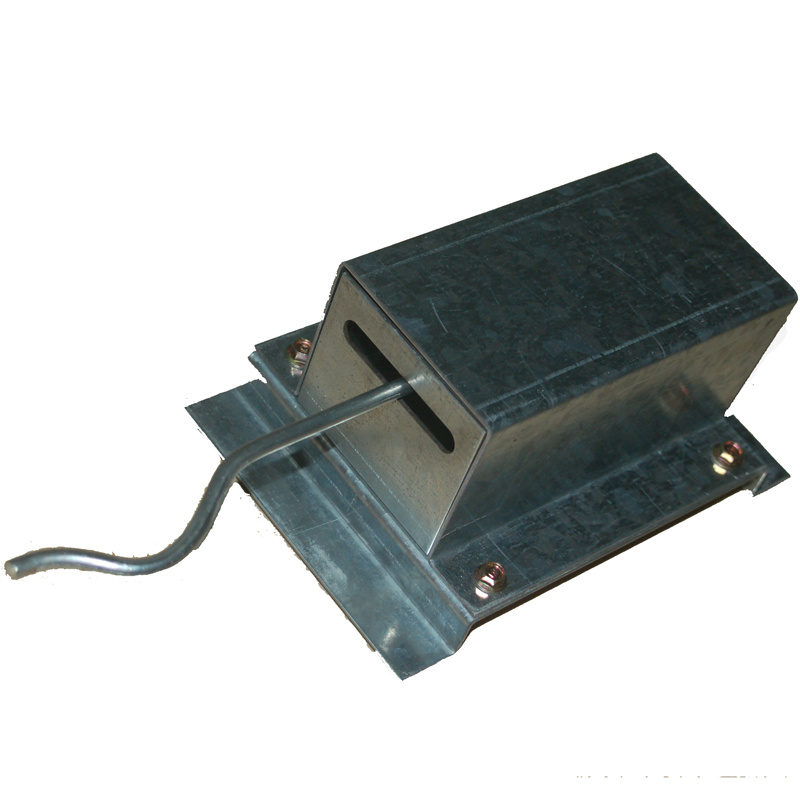

| Specification(European design) |
| BOOTH DEMENSION | |
| Inside size | 7000×6000×3500mm(L×W×H) |
| Outside size | 7350×7400×5760mm(L×W×H) |
| BASE | |
| Base design | Galvanized sheet bending form, full grid ,floor height 350mm and adjustable. |
| Capacity of grids | 700 kg/single round |
| Filter area | 42m2 |
| Drive-in- ramps | X3 pcs ,Adopt galvanized bending forming ,grids struture, used in most sports cars. |
| Grid description | Adopt galvanized bending forming,more durable and strong .Full grid ,the grids are suppressive type of steel grating instead of traditional twisted steel for the cross bar steel grating .The biggest features for it are beautiful ,durable and better force bearing. |
| CABIN | |
| Cabin struture | Sheet metal column structure, double layer vacuum thermal insulation glass. |
| Plenum height | 400mm. |
| DOOR | |
| Door form | Electrical roller shutter. |
| Door size | 3980×2700 mm (W×H). |
| Power | 550W, maximum lifting weight 800kg, lifting speed 0.2m/s. |
| Door arrangement and number | Parts of door: 1 set. |
| Door description | Galvanized sheet, filled with aluminum silicate cotton inside and outside, inside and outside controlled, configuration safety protection device. |
| WORKING DOOR | |
| Door size | 2000×800 mm (W×H) |
| Door arrangement and number | Parts of door: 2 set. |
| Door description | Temper glass door, door closer |
| LIGHTING | |
| Quantity and power | 16 sets of boxes, each 4X 36W, 2304W total |
| Lighting arrange way | on both sides |
| Lighting description | protection class IP55, CE certified electronic ballasts, OSRAM lamp |
| FILTRATION SYSTEM | |
| Pre-filters | EU3 grade pocket filter, filter effect is much better |
| Ceiling filter | EU5 grade high efficient filter |
| Bottom filter and exhaust filter | Fibreglass paint-stop filters, G2 grade |
| INLET VENTILATION SYSTEM | |
| Inlet fan | Direct-type turbine fan |
| Inlet fan power and motor description | 11KW,970 rpm, 380 V, 50 Hz |
| Parameter inlet ventilator | 35000 m3 / h, 650pa |
| EXHAUST VENTILATOR | |
| Exhaust fan | Direct-type turbine fan |
| Exhaust fan power and motor description | 11KW,970 rpm, 380 V, 50 Hz |
| Exhaust fan parameter | 35000 m3 / h, 650pa |
| EQUIPMENT EMPTY LOAD | +/- 0.23m/s |
| NOISE | <78dB |
| HEATING SYSTEM | |
| Heat exchanger | Stainless steel 1Gr18Ni9Ti (SUS304) |
| Heat power | 232KW |
| △T temperature capability | 20° C (from 0°C to 20°C under painting state) |
| The maximun operating temperature | 80°C |
| Heating time | 5-8 minutes (from 20°to 60°C under baking state) |
| Model diesel burner | RG5S diesel burner |
| CONTROL SYSTEM | |
| Control system | Inverter control system |
| PLC controller | Yes, PLC control, more reliable, lower breakdown rate |
| Human-computer interface touching screen control system | Yes, touching screen control, easier to operate |
| Ceiling and floor filter change reminder function | Ceiling filter and floor filter install differentiate pressure transmitter, when the ceiling and floor filter suck dust and paints to certain level, the control system will remind user to change filter humanely. |
| Inverter control | Inverter control , more energy-saving, more economic |
| Function | Painting, warm painting, baking, leveling, emergency stop switch, inverter, pressure adjust balance, failure indication, over-temperature alarm indication, baking delay stop protection |
| SPECILA ITEM | Rated power: 28KW |
| OPOTIONAL | |
| Three dimensional infrared baking lamp | By using German technology and high quality IRA infrared shortwave heating international special light source laboratory identification tube (total power: 8X1KW), the longitudinal and transverse guide rail on top of the barn, can make the lamp move at all directions, two variable angle swing arm can make the lamp body in the barn any position, the lamp body lifting the gas spring full power. |
