Economy Mode Open-Face Industrial Spray Booth

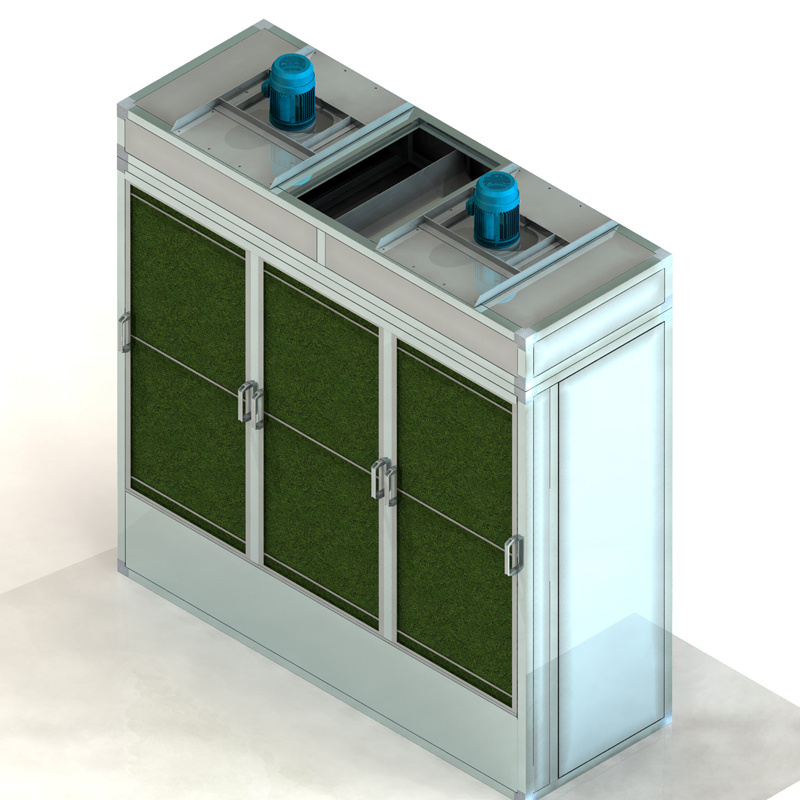

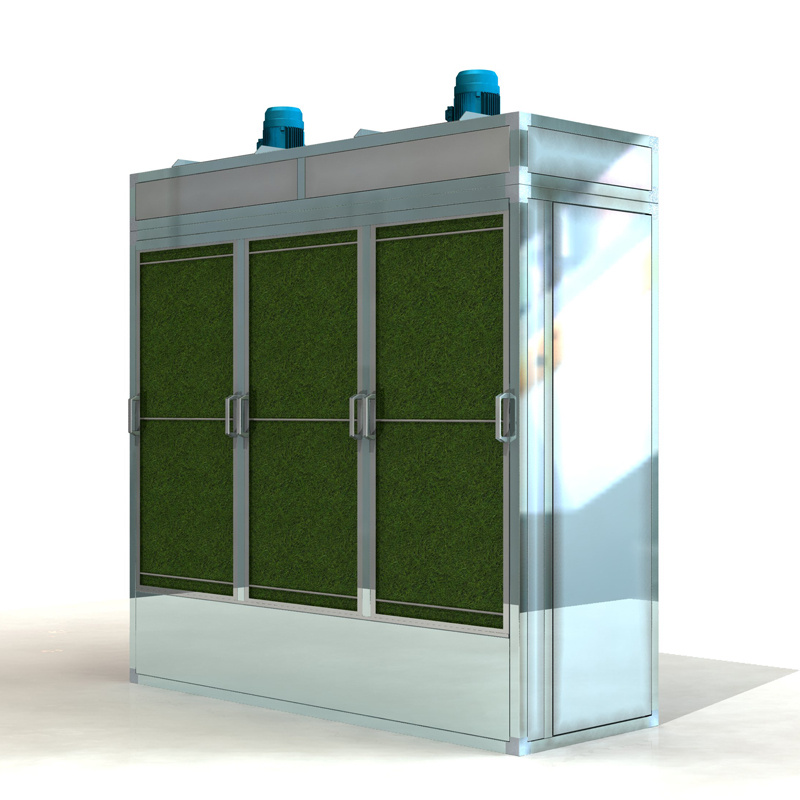

Name: Economy Mode Open-Face Industrial Spray Booth
Brand: ibuyautoparts.com
SKU: 715789222
Availability: InStock
Rating: 4.5 (43 reviews)

Price:	US $ 2000-2500/Piece
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Bench booths

The base elements in the YFT-C Series,can be combined to form spray tables of any desired working width. The frame swings downward for especially quick filter changing. It also ensures that the mat is held firmly in place.

MODE	YFT-C-20	YFT-C-25	YFT-C-30	YFT-C-40
length B(mm)	2100	2600	3100	4100
Exhaust pipe diameter ФD(mm)	500	500	630	630
Air volume (m³/h)	6000	8400	10600	13600
Power (kW)	1.5	2×1.5	2×1.5	2×1.5
Weigh (kg)	350	465	510	625

Optional:
**Turnstile work holders
**Motor protection switch or switchgear cabinet
**Energy saving device
**Lamp (in explosion-proof version,if required)
**Spray guns, material feed system
**Consumables: strippable coating,overspray arrestor mats

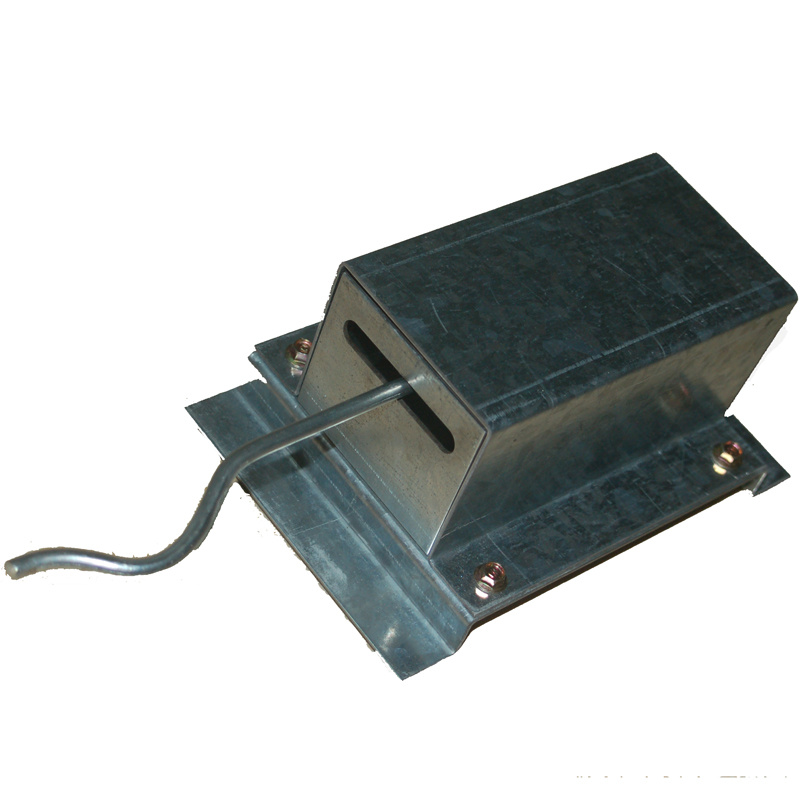

Energy-saving device
When the spray gun is hung on the hook,a pneumatic cylinder throttles down the adjustment damper to reduce the amount of air exhausted. Consequently the air flow rate is significantly reduced. This saves electric and thermal energy.

Prod Model:	Customized
HS Code:	8419899090
Voltage:	380V50Hz3pH for Motors
Technology:	German Technology
Warranty Time:	2 Years
Usage:	Spraying/Pretreatment
Certification:	CE
Airflow Direction:	Cross-flow Type
Paint Mist Treatment:	Dry-type
Condition:	New
Brand:	Infitech

Guangzhou Infitech Mechanical and Electrical Equipment Co., Ltd. is a focus on industrial coating equipment research and development, design, manufacturing, technical consulting, sales, installation of high and new technology enterprise. We have a professional and experienced technical team, perennial exchanges and cooperation with design institutes, universities, undertake pretreatment, sandblasting, electrophoresis equipment; Grinding, drying equipment, dust removal, paint on the surface andDust-free spray and automatic spraying production line.

Products used in cars, buses, trucks, special automobile and auto parts production, elevator manufacturing, locomotives, construction machinery, military industry, machine tool, plastic spraying, and many other industries. Guangzhou Infitech Mechanical and Electrical Equipment Co., Ltd. Adhering to the "continuous learning, continuous innovation, the pursuit of excellence, Shared success" business philosophy, to comply with the needs of modern industry of coating equipment products, carefully committed to the new technology, new material, the use of new technology, research and development and innovation, to ensure that provide customers with competitive solutions and high quality service.
