Model: YS-50
Inside dimention: 6900*3900*2650mm L*W*H
Any Size Requirements Can Be Met
With better ventilation and strong power

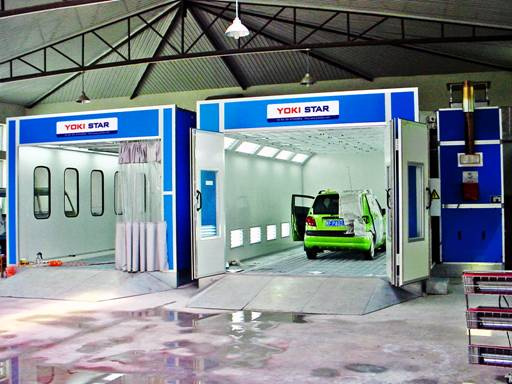

A. During painting, spray booth can offer a sealed environment with cleanness, safety and excellent lighting for the painting operation of all kind of components and different products.
B. During baking, drying time, temperature and humidity in spray booth can be set according to different paint materials to achieve a perfect high-quality spraying and baking for your cars.
C. Spray booth makes spraying and baking operation with no limits of all kinds of whether, thus ensuring physical fitness of operators and absolute safety of equipments.
Warranty
The goods are guaranteed for 24 months from the date of receipt, but the filters and lamps are not guaranteed. It cannot be applied for damages caused by negligence of operations or mishandling of the machine.
YOKISTAR Products
High quality and advanced technology are applied in YOKISTAR product ranges, involving automotive spray booth, bus and truck spray booth, prep station, mixing room, bench spray booth, open face spray booth and infrared curing lamp.
| | YS-50 |
| | Luxurious spray booth |
| Room body | Standard room body |
| Wall panel | 50mm, EPS wall panel |
| Main door | Main door: Folding door, 3 folds, 3000×2600mm(W×H), with aluminum alloy frame, color: blue |
| Basement | Galvanized steel assemble, 300mm high, quadrate steel structure. Full grilles made by flat bar and twisted steel, then galvanized. 3 ramps, made by indented plates, external setting,900×2000mm(W×L). |
| Intake air system | 1x7.5KW double-intake centrifugal fan for intake air, model: YDW 4.5M, air capacity for each fan: 21000m3/h |
| Exhaust air system |
1x7.5KW double-intake centrifugal fan for exhaust air, model: YDW 4.5M, air capacity for each fan: 21000m3/h |
| Damper actuates | electric damper actuates from spraying to baking cycle,electric damper for exhaust air |
| Heating system | 1 unit RIELLO RG5S diesel burner, stainless steel heat exchanger. Max. heating productivity: 260000Kcal/h. |
| Filter system | Pre-filter,ceiling filter,exhaust fibreglass filter,activated carbon filter |
| Filter area | 21.5 |
| Lighting system | Ceiling lights: 8Units×4Pcs=32Pcs×36W, with electronic holders. |
| Side lights: 8Units×4Pcs=32Pcs×36W, with electronic holders. |
| Control system | spraying,heat spraying,baking,time setting,lighting switch,failure indicator,thermostat,power supply switch,emergency stop,hour meter,temperature limit controller.All motors are full voltage start. |
| Total power | 18KW |
Guangzhou YOKISTAR Co., Ltd. (YOKI STAR for short) is specialized in spray booths, infrared lamps, prep stations, equipments for industrial painting, high temperature drying which can supply design as well as manufacturing service.
Located in BaiYun district of GuangZhou city, YOKI STAR occupies 25000 square meters area, owns around 200 employees which is convenient to the new Baiyun airport (20 minutes by car) and the railway station (30 minutes).
As a professional designer and manufacturer with target in 'To be the best, but not to be the biggest', YOKI star succeeds to international advanced design standards and manufacturing technologies, follows international quality management and control system, produces first-class professional products of the world and shares with friends all over the world.
The products of YOKISTAR can be used widely for automobile maintenance, vehicles manufacturing, machinery manufacturing as well as trains, planes and furniture. Our products are popular in European Union, North America, South America, Middle East, East and South Asia, Africa, and have established completely sales system all around the world. YOKISTAR aims to be the spraying and baking equipments manufacturer with leading brand in the world, and to become modernized enterprise with international competitive advantage.
YOKISTAR is an ideal cooperator who deserves your reliance.
