Name: Double Support Spring Driven All Steel Structure Hose Reel
Brand: ibuyautoparts.com
SKU: 829267465
Availability: InStock
Rating: 4.5 (111 reviews)

Price:	US $ 160-170/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

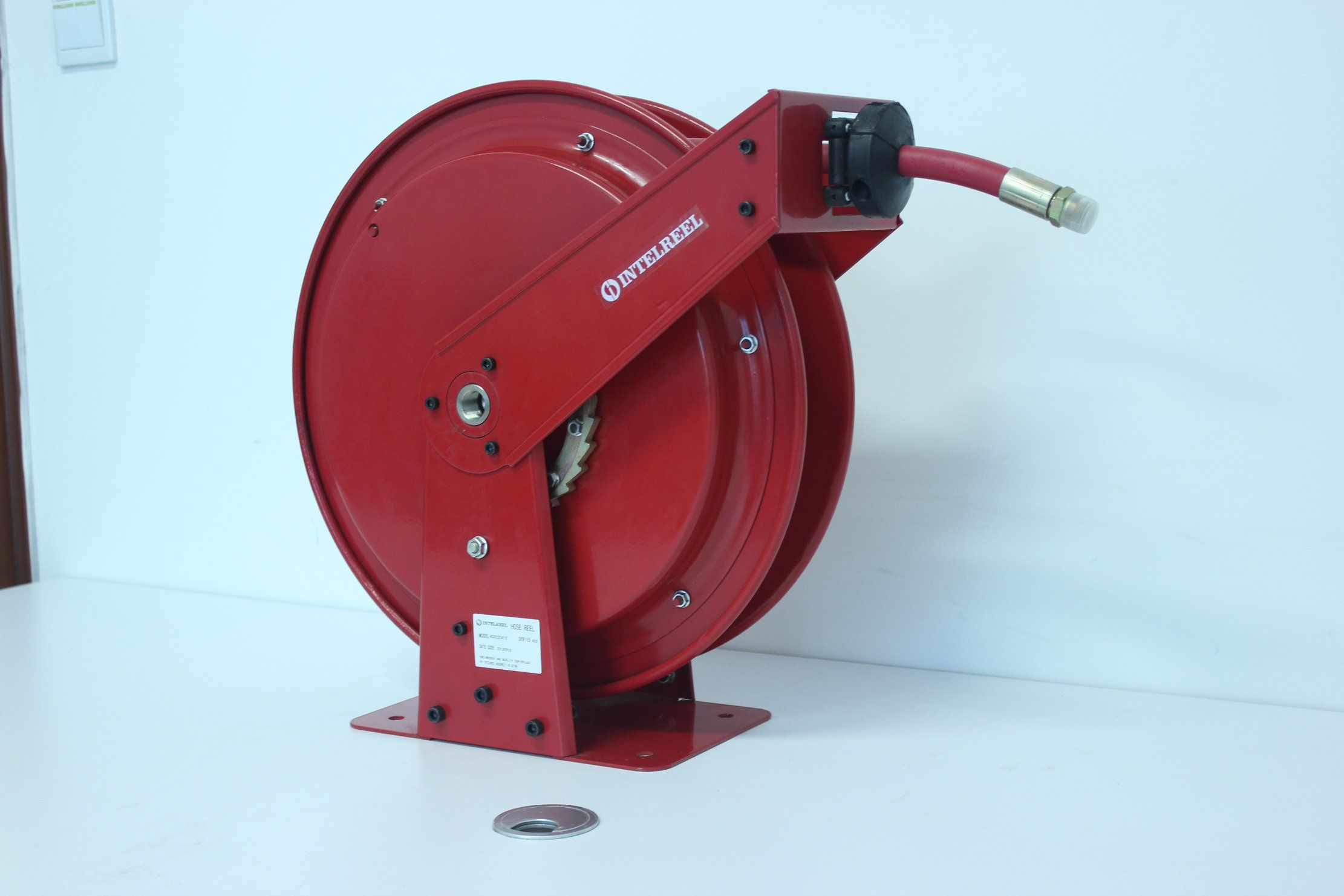

Series 400 spring retractable reels are dual pedestal, with high quality ball bearing, precise and reliable rotationg transfer device, and optional inlet on both sides of the unique innovation design results. These reels are all-steel construction and a baked-on powder coat finish combine to produce a rugged corrosion-resistant, which have dual pedestal base and reinforced guide arm. The product is stable and suitable for a wide variety of heavy duty applications, for instance, pneumatic tools, vehicle maintenance, industrial,, agriculture, refueling, service truck and wash down, etc.

The features of Yamasaki 400 series hose reel:

1. Germany Kern-Liebers Spirng
2. NSK Bearing
3. Dual Pedestal
4. Dual inlets on both sides optional
5. 3.0mm thickness cold steel spring case

The Specifications:

App.	Pressure rating	Hose inner dia.	Hose length	Reel inlet	Reel outlet	Pin No. (with hose)
Air / Water / anti-freeze	2(300)	8 (5/16)	15(50)	1/2"	5/16"	400020215
	2(300)	8 (5/16)	20(65)	1/2"	5/16"	400020220
	2(300)	10(3/8)	15(50)	1/2"	3/8"	400020315
	2(300)	10(3/8)	20(65)	1/2"	3/8"	400020320
	2(300)	12(1/2)	15(50)	1/2"	1/2"	400020415
	2(300)	19(3/4)	8(25)	3/4"	3/4"	400020608
Oil / Water	19(2780)	6 (1/4)	15(50)	M22×1.5	M14×1.5	400190115
	15(2280)	10(3/8)	15(50)	M22×1.5	M18×1.5	400150315
	14(2030)	12(1/2)	15(50)	M22×1.5	M22×1.5	400140415
Grease	35(5075)	6 (1/4)	15(50)	M22×1.5	M14×1.5	400350115
Grease	28(4060)	10(3/8)	15(50)	M22×1.5	M18×1.5	400280315

Prod Model:	Series 400
Drive Type:	Spring
Spring Brand:	Kern-Liebers
Construction:	All Bolted Unitized
Mounting:	Floor, Wall, Bench, Truck
Inlets:	1/2"
Material:	3.0mm Cold Steel
Surface Finish:	Powder Coated
Color:	Red
