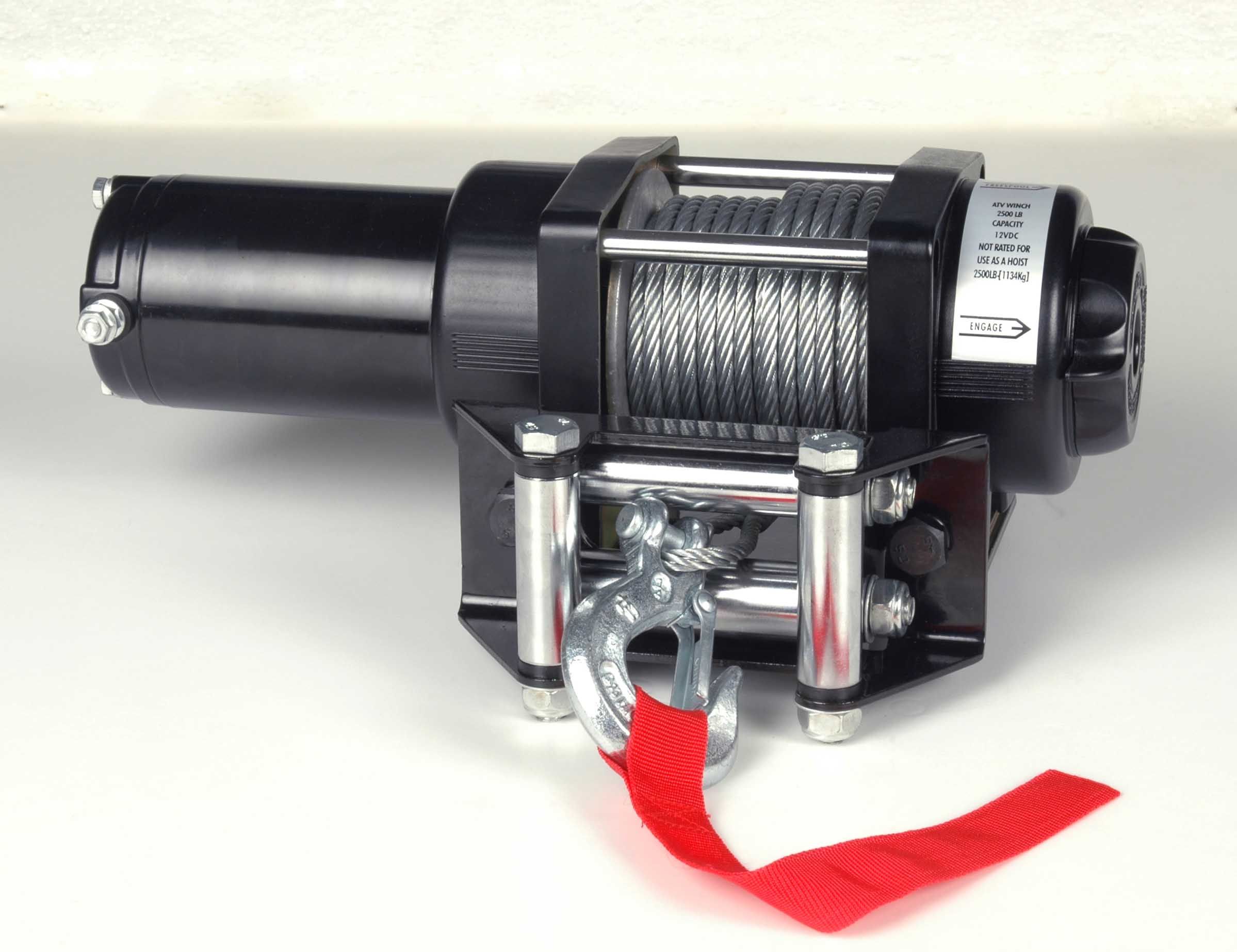

DC 12V Waterproof ATV Electric Winch with 2000lb Pulling Capacity

Name: DC 12V Waterproof ATV Electric Winch with 2000lb Pulling Capacity
Brand: ibuyautoparts.com
SKU: 609367192
Availability: InStock
Rating: 4.5 (148 reviews)

Price:	US $ 46-55/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Specifications:
1)Rated line pull: 2,000lbs (907kg) single-line
2)Waterproof motor: 12V DC, 0.85hp (0.64kW) permanent magnet
3)Control: handlebar mounted mini-rocker switch
4)Gear train: 3-stage planetary
5)Gear ratio: 136:1
6)Clutch (free spooling): cam activated
7)Brake: dynamic, mechanical brake is available
8)Drum diameter/length: 2.0"/2.9" (51mm/75mm)
9)Wire rope: 40', 5.5mm diameter (12.25m, 5.5mm dia)
10)Fairlead: roller 4 ways
11)Recommended battery: 12 Amp/hour minimum for winching
12)Contractor: heavy-duty waterproof contactor
13)Battery leads: color coded wiring
14)Mounting bolt pattern: 76 x 124 mm
15)Finish: black or grey

Performance Data:
Line Pull        Line Speed        Motor Current
Lbs.(Kgs.)    Ft./min(M/min.)       Amps
0                           25(7.6)               18
500(227)         20(6.1)               51
1000(455)        16(4.9)               88
1500(680)        12(3.6)               125
2000(907)    8(2.4)               185
Above performance specs are based on first layer of drum

Pulling power     Wire rope layer
Lbs.(Kgs.)       1st is closest to drum
2000(907)            1st
1760(800)                    2nd
1545(700)                    3rd
1360(616)                    4th

Product features:
1)All metal, high precision, high strength of the 3 planetary gear groups
2)Waterproof motor
3)Long-life sealed control switch
4)Full sealed large current contactor
5)Install four power wire convenient
6)Hot-dip galvanized steel for air level
7)Included components: mounting plate, roller fairlead, G70 hook, contactor, handle switch, wire sets, hardware, hand saver strap,
8)Sheath of rubber, ribbon, instruction, EPS packaging, colored box and more
9)Small volume, light weight, strong tension and more
10)Suitable for small SUV, beach all-terrain vehicle of JIMNY and light vehicle outdoor operation

Prod Model:	PRT2.0Wi
Markets:	North America,Oceania,Eastern Asia,Western Europe
Type:	Electric Winch
Power Type:	Permanent-magnet DC
Pull Direction:	Forward
Electric Winch Model:	ATV
Working Voltage Of Electric Winch:	Low Voltage
Applicable Environment:	Mountain Road
Certification:	Ts16949
Brand:	Great

Company Profile:

The company designs, manufactures and markets a full line of ATV winch and accessories that enhance the performance of Winches. The company's mainly markets electric winches and hoists to commercial, inudustrial and severe duty customers. We also has A Line of utility winches and hoists that are designed for professional trade workers and do-it-yourself consumers who need powerful tools to assist them in pulling, hauling, dragging or lifting. We focuses on three specific markets - Consumer Aftermarket, Industrial/Commercial, and Original Equipment. With more customers in oversea, We are the one of the china's most recognized brands in winch market.

Manufacturing, Research & Development:

We operates over 3000sq. Manufacturing facilities in 2006 China. We holds quality certifications for ISO/TS 16949: 2009, and continues a new product innovation.

Products:

We manufactures 50+ products for Automotive, Industrial users. From self ATV winches and industrial hoists systems to customers thatdu have chosen our products for their durability, reliability and dependability.

Sales & Service:

Our products are distributed primarily through distributors and OEM's. Our products export for to U. S. A., Canada, Germany, British, France, Australia, and other countries. It comprising of elite retail outlets that provide consumers with the highest level of product and service
