Cylinder Boring &Honing Machine

Name: Cylinder Boring &Honing Machine
Brand: ibuyautoparts.com
SKU: 737875475
Availability: InStock
Rating: 4.4 (139 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Features

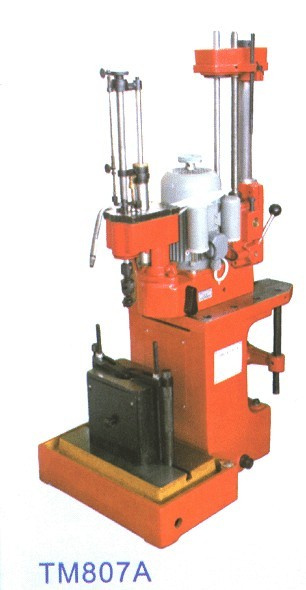

Model TM807A/B Cylinder Boring & Honing Machine is mainly used for maintaining the cylinderof motorcycle, etc. Place the
Cylinder to be borecd under the base plate or on the plane of the base of the machine after the center of the cylinder hole is
Determined, and the cylinderis fixed, maintenanance of boring and honing can be carried out. The cylinder of the motorcycles
With diameters 39-72mm and depths within 160mm can all be bored and honed. If the suitable fixtures are fitted, other
Cylinder bodies with corresponding requirements can also be bored and honed.

Specifications TM807A TM807B
Diameter of boring & honing hole 39-72mm 39-72mm
Max. Boring & honing depth 160mm 160mm
Rotational speed of boring spindle 480r/min 480r/min

Steps of variable speed of boring
Spindle
1step 1step
Feed of boring spindle 0.09mm/r 0.09mm/r
Return and rise mode of boring spindle manual operated manual operated
Rotational speed of hoing spindle 300r/min 300r/min
Honing speed of honing spindle 6.5m/min 6.5m/min
Power 0.75kw 0.75kw
Rotational speed 1440r/min 1440r/min
Voltage 220v or 380v 220v or 380v
Electric motor
Frequency 50Hz 50Hz
39-46mm 46-54mm
Centering range of centering device
54-65mm 65-72mm
39-46mm 46-54mm
54-65mm 65-72mm
Overall dimenisons(L x W x H) 680 x 480 x 1160mm 680 x 480 x 1160mm
Weight of main machine (approx) 170kg 170kg

Prod Model:	TM807A TM807B
