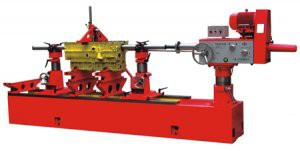

Line Boring Machine for Main and Camshaft Bearings

Name: Line Boring Machine for Main and Camshaft Bearings
Brand: ibuyautoparts.com
SKU: 737876965
Availability: InStock
Rating: 4.7 (138 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Features

This kind of line boring machine is repairing machine tools with high efficiency and high precission, They can be used for boring
Master bushing and bushing of engine & generator's cylinder bodier in automobiles, tractors and ships etc. If necessary, the
Flywheel hub bore and bushing seat hole can be also finely bored, to be supplied with following accessories: Accessories for
Centering, sectifying tool, measuring inner diameter, boring rod bracket, tool holder to increase diameter, boring tool
Micro-adjuster and for distance tool sectifying device can be provided with the main machine.

Model T8115VF T8120VF T8125VF

Range of hole diameter to be bored 36-150 mm 36-200 mm 28-225 mm
Max. Length of cylinder body to be bored 1600 mm 2000 mm 2250 mm
Main shaft max elongation 300 mm 300 mm 300 mm
Main shaft rotating speed(stepless) 30-500 rpm 30-500 rpm I: 30-150rpm; II: 93-467 rpm
Boring shaft feed 0.044, 0.167 mm/r 0.044, 0.167 mm/r 0.43; 0.085; 0.125 mm/r
Motor power 0.75/1.1 Kw 0.75/1.1 Kw 1.5 Kw
Overall dimension (L× W× H) 3500× 800× 1500 mm 3900× 800× 1500 mm 4382× 650× 1420 mm
Packing dimensions (L× W× H) 3650× 1000× 1600 mm 4040× 1020× 1600 mm 4040× 1020× 1700 mm
N. W. /G. W. 1900/2200 kg 2200/2500kg 2200/2500kg

Prod Model:	T8115VF

Shanghai AA4C AUTO Maintenance Equipment Co., Ltd is professional auto maintenance equip ment manufacture since 1995. AA4C means Always and All for(4) Customer. Our factory covers an area of more than 20, 000 squares meters and with our up-today manufacturing facilities, high-tech industrial, product developing manufacturing sales and perfect after-service with a total capital of more than ten millions. For many years our company has been awarded as "Enterprise with High Reputation" "Enterprise with High Credit in Quality " and "China National Grade AAA Enterprise, etc. Besides, Wehave passed ISO9001, authenticated by 2000 International Quality Control System.

Tire changers, Wheel balancers, car lifts are the goods produced by ourself, other goods are supplied by our cooperated factories in order to decrease customers' trouble to buy many goods from many factories. We are mainly dealing AA4C products development, product design as well as OEM/ODM manufa-cturing...Our Product has been shipped to worldwide (Europe, East Europe, North & South America, Africa, Australia, Middle East, Asia as well as different province in China).

Facing the future opportunites and challenges, AA4C will be still adhering to "Seeking higher & being practical" trying to enlarge the intercourses and cooperation with other producers in the fieid both at home and aboad; And exert ourselves to pay back our clients with high-quality products and perfectafter-service. Our goal is: Always and All for(4) Customer.
