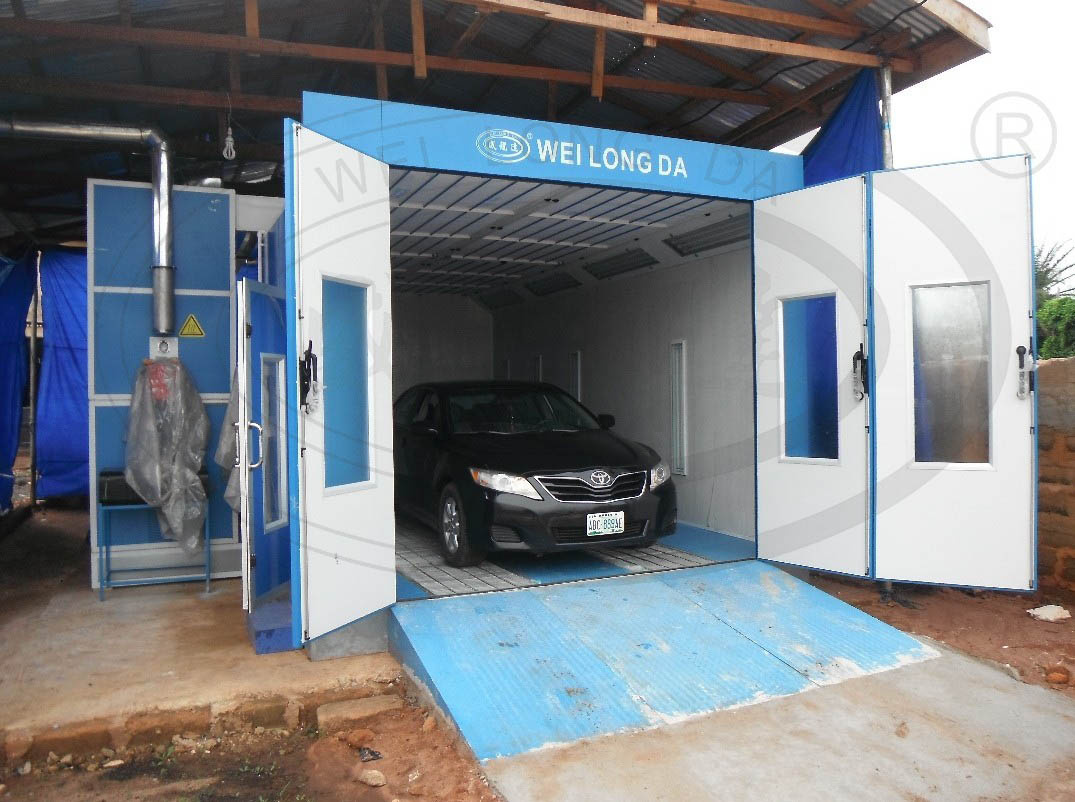

Customize / Standard Car Spray Booth, Car Spray Booth Price

Customize / Standard Car Spray Booth, Car Spray Booth Price
Price: US $ 5000-14000/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Set
Pay Type: T/T
Prod Model: WLD9000
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Internal Size: 6.9X3.9X2.8m
Whole Recycle System: Yes
Certification: CE
Airflow Direction: Fully Undershot-type
Heating Mode: Diesel
Paint Mist Treatment: Dry-type
Condition: New
Substrate: EPS or Rock Wool
Brand: Weilongda

Product Description

1. CE Spray Booth
2. Spray Booth equipped M pattern Active Carbon pocket Filter System
3. Over 16 years in Spray Booth
5. Really spray booth factory in China

Configuration:
External Size:(mm)     7000x5450x3480                                   Front Door:(mm)                   3000(w)x2750(h)
Internal Size:(mm)6900x3900x2800                                  Total Power:(kw)                           15
   Cabin       SystemWallboardFire-retardant composite molding Sandwich style EPS (epispastics polystyrene) (Rock wool and PU are optional )50mm thickness, EPS foam Density is 14kg/m³ ; The Colorful steel skin boards have been HDG(hot dip galvanizing),service life can reach 20 years without rusting. It keeps high insulation performance. Four colors for your choice, including blue, red, orange and white. High quality galvanized steel roof panel.
Basement300mm high powder coated galvanized steel sheet and square steel pipe construction. 3 rows of checked plate and 2 row of grids, antirust and strong. The bearing capacity of driving grids up to 1000 kg per wheel; Basement frame is assembly formed by antirust steel square tube, the overall performance is good and strong. Powder coated full ramps.
  Door3 pieces of luxury front doors, made of 0.8mm galvanized powder coated sheet, beautiful and strong. Size: 3000(w)*2750(h). 1 piece of emergency door.
      Air Circulation   System           Intake Fan1x7.5kw direct drive turbo fan, Air Flow is 25000m3/h.BELIMO 20N electric damper. Air flow: 24,000m3/h. The wire core of our fans is full cooper so our fans are very durable.
     Exhaust Fan1x5.5kw direct drive turbo fan,  Air Flow is 18000 m3/h.
        Air PipeMade of Galvanized steel sheet consisted of 4 pieces of straight pipe750*750*1000, and 1piece of elbow.
Air circulation typeFull inner air circulation type, particularly rapid heating, insulation ability, especially energy,reflect its superior performance in a cold environment.
        FilteringMultilayer filtering structure. The primary pocket filter can capture granules larger than10μm. Ceiling filter capture granules bigger than 5μm. The floor filter and active carbon filter beside exhaust fan can capture paint and dust emission when painting. The air cleanliness in the working environment can reach 98%.
  Heating     System             BurnerOriginal Italy RIELLO RG5S diesel burner, 260000Kcal/h. The heating time 4-5min(20-60°C) Max temperature at 80°C. Fuel consumption is 4-5kg/ vehicle.
  Heat ExchangerTwo layers. Made of stainless steel. The heat exchange rate can reach 85%.Two layers to make our heating system safer and get higher heat exchange rate. What is more, we make two wings to make the temperature rise more quickly and save energy.
     Air make up             cabinetThe surface plate is powder coated galvanized plate, antirust, strong and beautiful; The frame is treated by hot-dip, antirust and strong, more durable than ordinary surface treatment, more beautiful, nodes with no damage spot, rigidity.
  Oil tank supportTank carefully made of high quality steel, the powder coated treatment, beautiful and durable.
      Fume pipeFume pipe made of galvanized pipe, diameter of 190mm, 4 pieces of 1000mm long straight pipe, two 90 ° elbows.
    LED  Lighting    System        Light tubeCeiling light has 32 pieces of 16w LED lamps. Side light has 16 pieces of 16kw LED lamps. 900 Lux. LED lamps are more bright and durable. The grade of lighting box's dustproof and waterproof reach IP54 grade.
      Light boxWelded galvanized plate, powder coated treatment, surface brightness, color uniformity.
  Filtering     System         Pre-filter filterGrade G2 plate type fiber glass filter; Dual filtering structure. The Pre-filter can capture granules larger than 10μm.
     Ceiling filterEU5 grade high efficient filter; Ceiling filter capture granules bigger than 5μm.The air cleanliness in the working environment can reach 98%.
      Floor filterMultilayer glass Fiber. The air cleanliness in the working environment can reach 98%.
     Ceiling filter           support Made of tube steel frame, thickness of 1.2mm, epoxy powder coating, antirust and strong, rigid, beautiful and durable, can be repeated disassembly, not easy to damage, easy to replace filter cotton.
Pollution Control            SystemSpecial configure with M pattern active carbon pocket filter system to filter paint and dust emission.
  Control      system     Control panel Luxury Standard Microcomputer control system
        Function Use high quality electronic component, the temperature and the drying time is accurately shown, equip with overheat, overload& short-circuit protected, safe and reliable. Use well-known brand products, reliable quality, stable performance, display accurate. Especially with over-temperature and over-pressure alarm device. The electricity will be cut off once alarm devices alert. It makes our booth very safe.
