China Schunk E49R72 Graphite Carbon Brush for Motors 1. Specifications:1). Item name: China Schunk E49R72 Graphite Carbon Brush for Motors
2). Model No.: E49 R72/E49 R75
3). Size: 2(5x16x32)mm, 10X20X32mm, also can according to customed sizes.
4). Material: Graphite material/metal graphite(silver/copper)/eletric graphite/ resin-boned graphite
5). Grade: We have Morgan, Schunk, E-Carbon, Mersen, Megaa for you chooses.
6). Sample Lead Time: 5-7 working days after receipt of make sample charges
7). MOQ: 10PCS
Technical parameter:| carbon brush E49R72 : |
| Grade | Material | Resistivity
u Ω@ m | HR 10/40 | HR 5/40 | Bending Strength
N/mm2 |
| E49R72 | Electro graphite | 50 | | -90 | 18
|
2. About material:Aobo Carbon provide carbon brushes in all kinds of applications for OEM customers and end users. Our customers have proven the good quality can keep in long -term use. We are sure to offer you the suitable material.
1. Graphite material --- for slip ring of high-speed turbine.
2. Metal graphite material --- for high load and low voltage motors with less commutation task.
3. Resin bonded graphite material --- for small and middle sized DC(Direct Current) motors and generator plant.
4. Electro graphite material ---has excellent commutating performance and self-lubricated functions, has been widely used in all AC(Alternating Current ) and DC(Direct Current) motors that achieve not only.
3. Main application as following:-Carbon brush for industrial application
-Carbon brush for generator industry
-Carbon brush for household appliances
-Carbon brush for micro motor
-Carbon brush for automotive application
-Carbon brush for vacuum cleaner
-Carbon brush for power tool
Our brushes are used in the motors of a variety of end products as listed below. Remember that we custom-design our products to fit your needs, so please contact us if you have a need outside of those below and we'll work with you to find a solution.
-Automobiles
-Trucks
-Buses
-Heavy Duty Vehicles & Equipment (e.g., Earth Movers, Cranes)
-Vintage Vehicles
-Motorcycles
-Key Markets

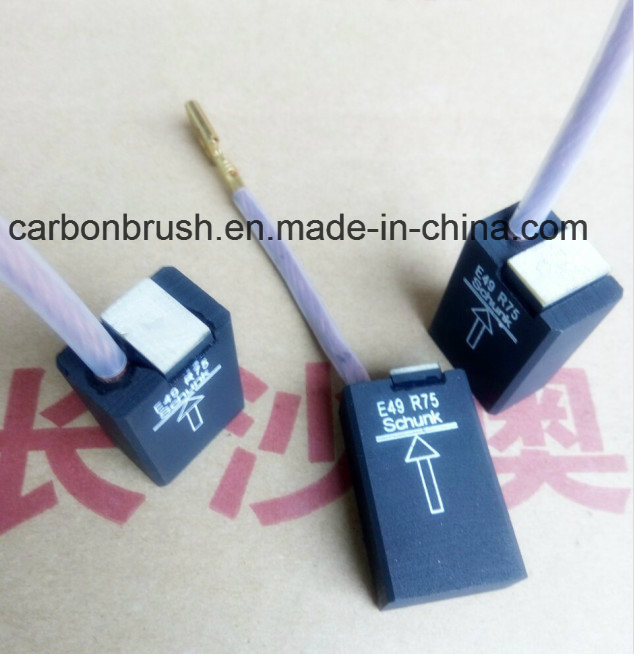

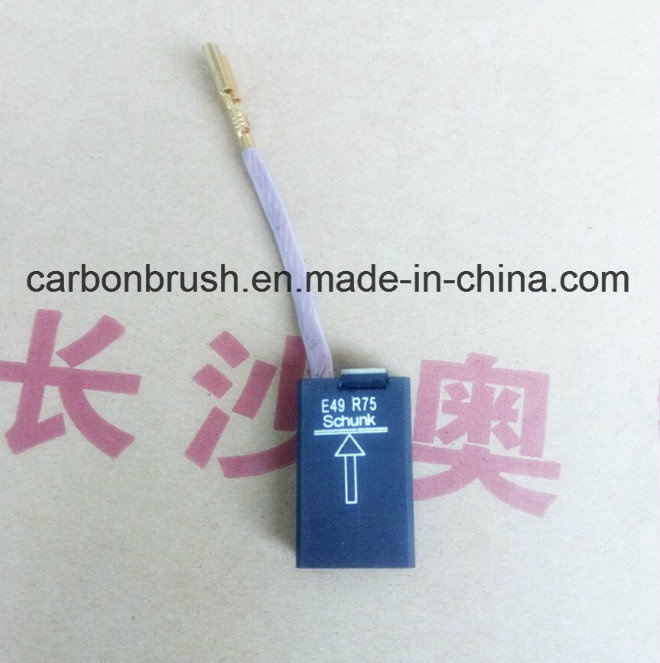

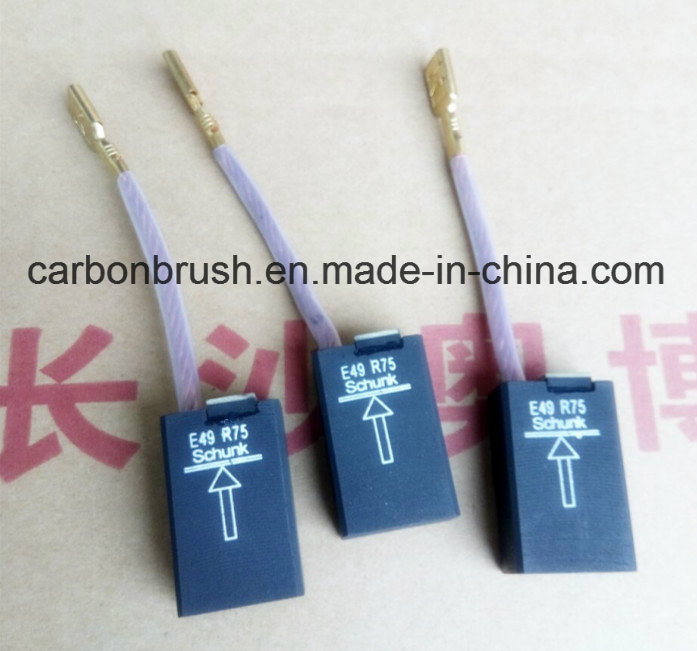

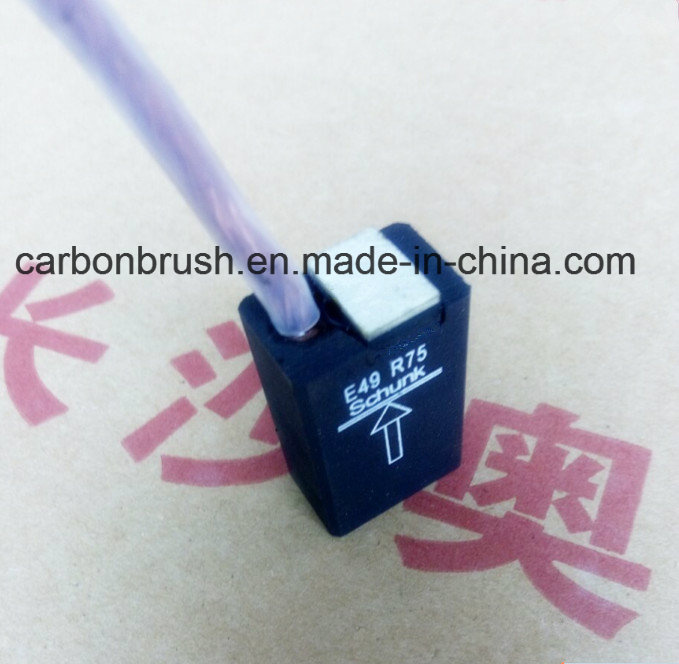

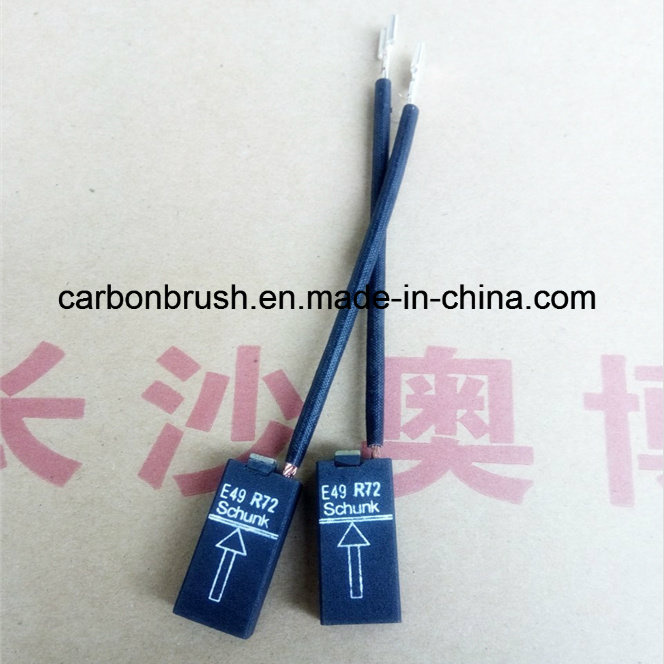

4. Product pictures
Welcome to send the inquiry to us, thanks.
