High Quality Carbon Brush Holder used For the Niehoff Drawing Machine 1. Description:1. We have all kinds of Carbon Brush Holders:
For Motors, Automobile, Traction Motors, Generator, Motorcycle etc.
2. Material: Copper, aluminum, iron.
3. Our products have characters as high performance, low spark.
4. Non standard brush can be designed and be manufactured according to buyer's drawing or sample.
5. Sample: 3-5 working days.
6. MOQ: 10PCS
7. Delivery time: 10-25 days after receipt your payment.
8. Addition: We can produce as customer's requirement.
9. Payment: TT, L/C, Western Union, Paypal.
10. Shipping: By DHL/TNT/UPS/EMS/FedEx.
11. Packing: 20PCS/CTN, carton size: 75X110X240cm.
Technical parameter
| No. | Brand | Distance between
two rings | Width of the ring | ID | OD | Height | Current | J201 (mm) |
| 1 | YZR112-132 | 15 | 12 | 55 | 100 | 90 | 40 | 8*20*32 |
| 2 | YZR 160 | 15 | 15 | 65 | 112 | 100 | 80 | 10*25*40 |
| 3 | YZR 180 | 15 | 15 | 75 | 125 | 110 | 120 | 10*25*40 |
| 4 | YZR200-225 | 18 | 18 | 85 | 140 | 125 | 200 | 12.5*32*50 |
| 5 | YZR280 | 18 | 18 | 95 | 160 | 140 | 260 | 20*40*60 |
| 6 | YZR315 | 28 | 28 | 115 | 200 | 180 | 320 | 20*40*60 |
| 7 | YZR355 | 28 | 28 | 125 | 250 | 200 | 400 | 20*50*60 |
| 8 | YZR400 | 48 | 32 | 170 | 290 | 400 | 600 | 20*50*60 |
2. Advantage(1) original manufacture processing.
(2) for European, American, Korean, Japanese etc. Engines.
(3) high quality, design as your request.
(4) competitive price.
(5) secure service, delivery timely.
(6) SGS and ISO9001: 2008.
3. Experienced workers team-We pursue focuses on professional and excellence. Our workers all with working experiences more years, even many older workers are development together with our factory for many years.
-Their Industry experience, accurate equipment skills, zero error rate and high frequency of professional production assured the quality and delivery timely.
4. After-sale serviceOur company focus on the inspection not only for the production process but also close to the shipment process when the cargo were finished.
All the goods have passed strict testing, whether from the performance, or from the appearance of the package.

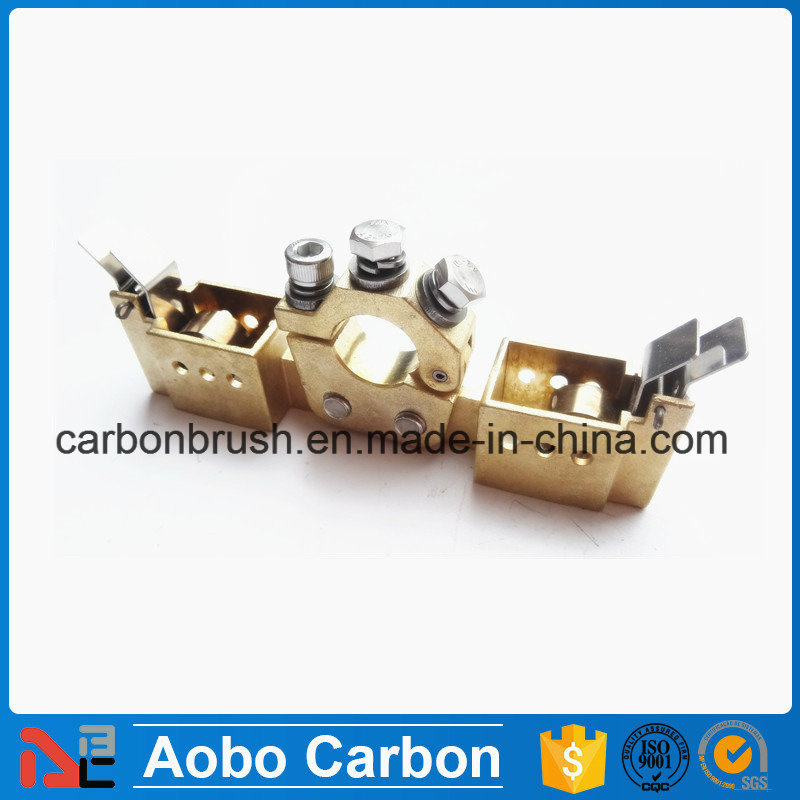

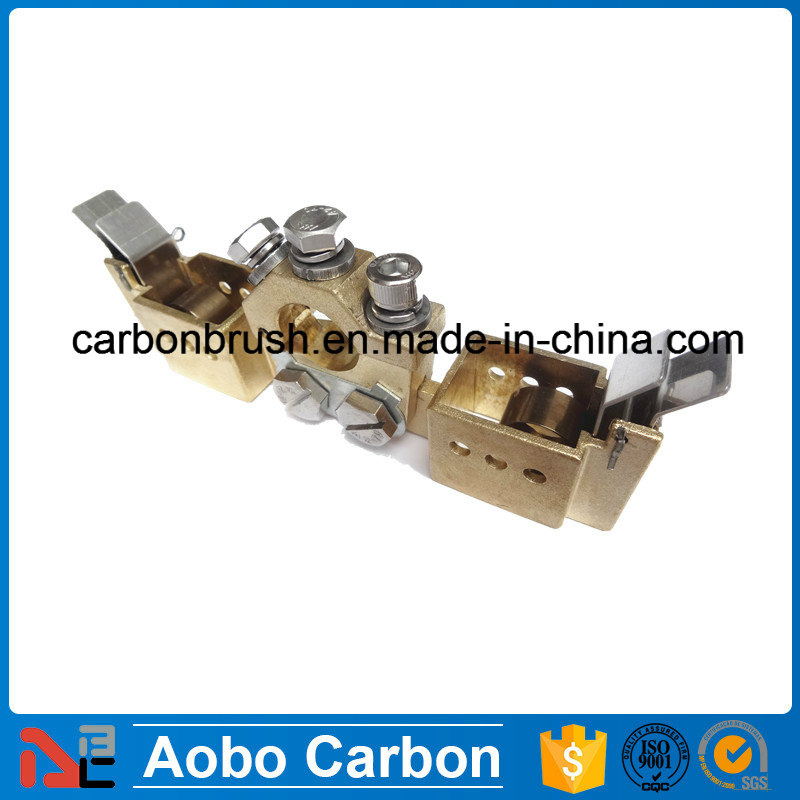

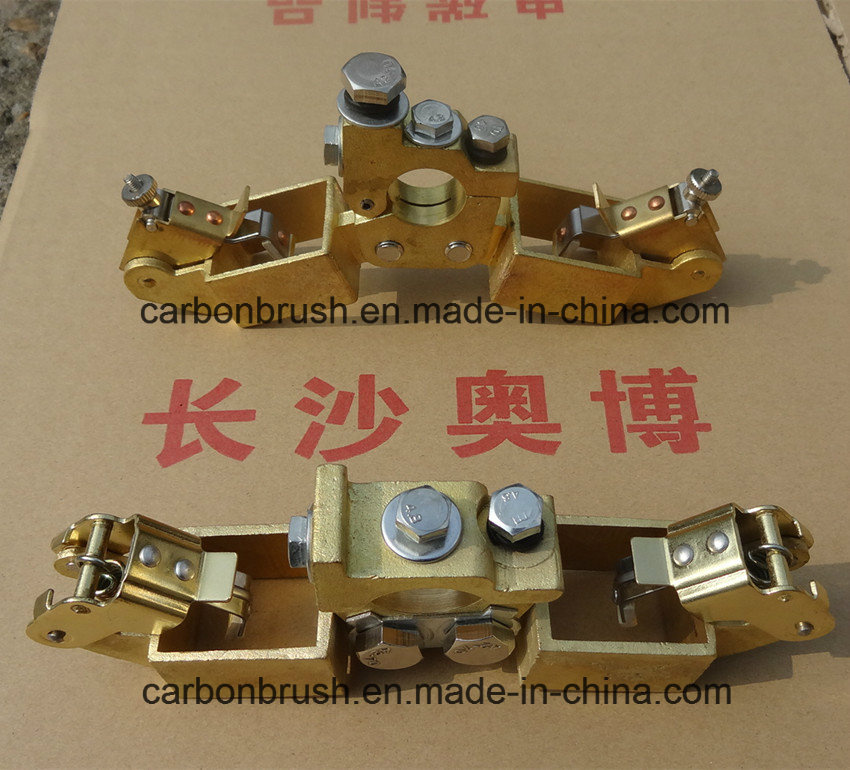

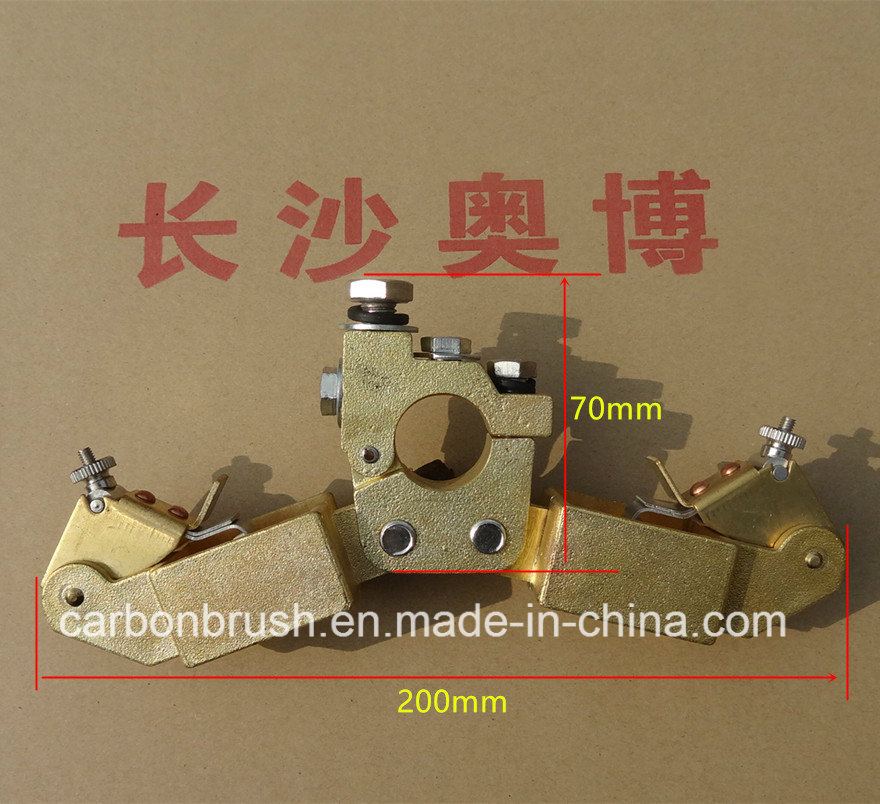

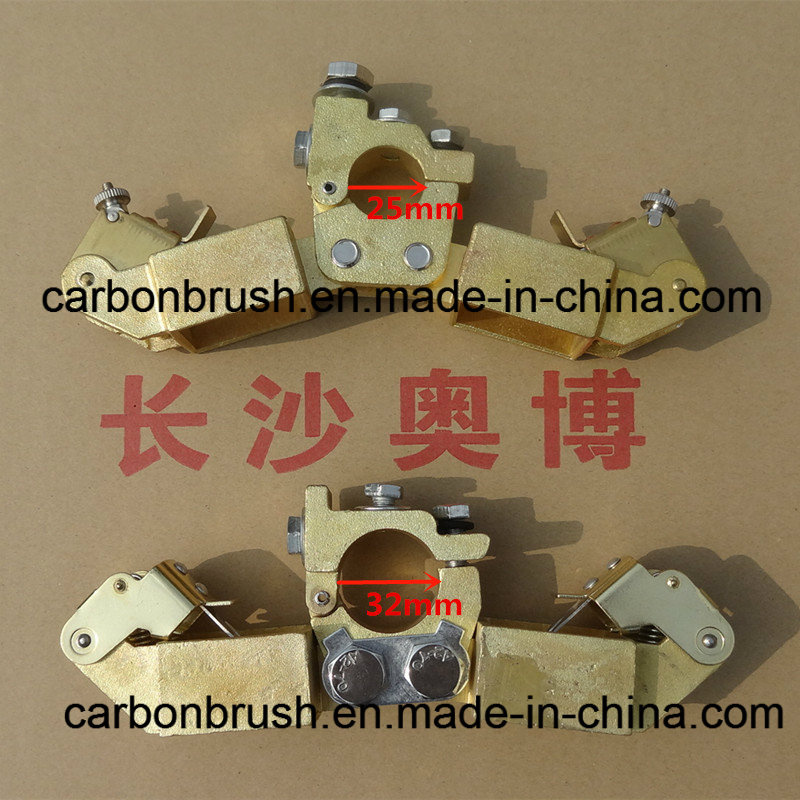

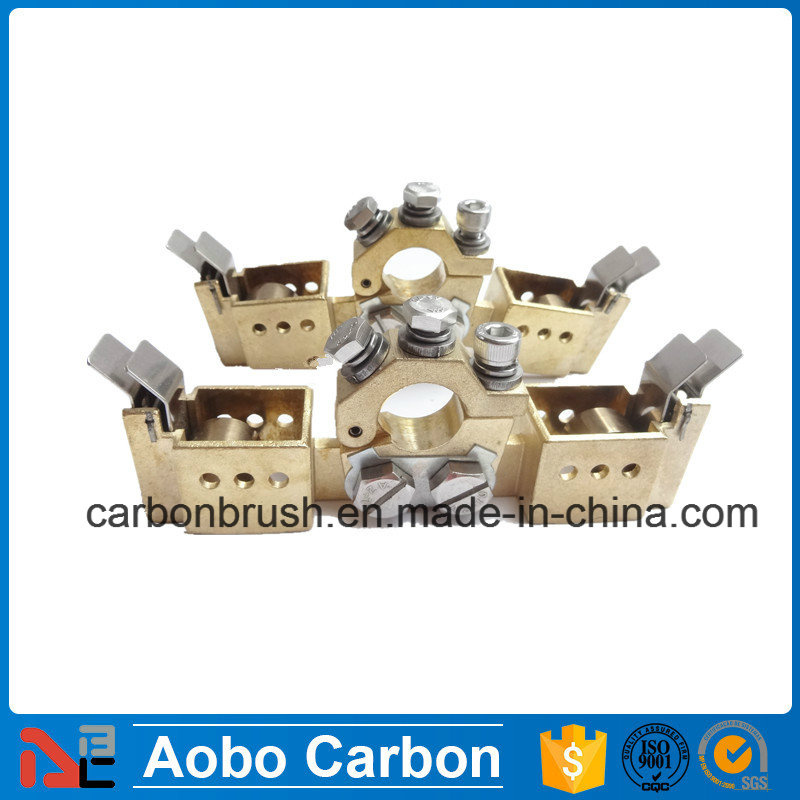

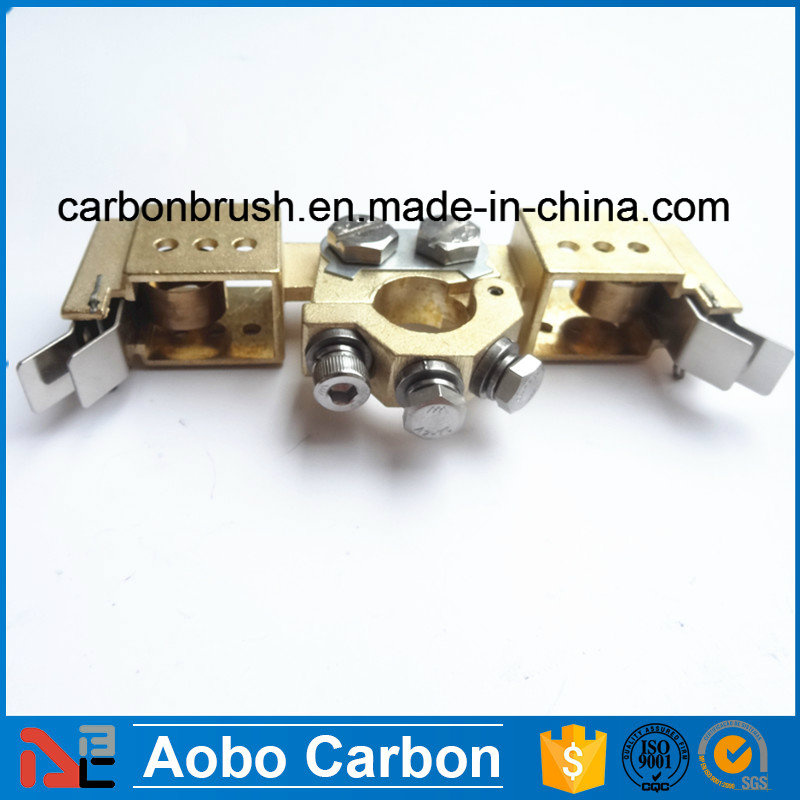

Product picture
Welcome to send the inquiry to us, thanks.
