Sales for Morgan Carbon Brush J230 For Motor1. Description:1). Item: Sales for Morgan Carbon Brush J230 For Motor
2). Model: J230,J215,J221,J240,J241 ,J245
J205,J204,J164,J102,J105,J151,J201,J206 ,J210,MG70
3). Size: 25X32X60mm, also can according to customed sizes.
4). Material: Graphite material/metal graphite(silver/copper)/eletric graphite/ resin-boned graphite.
5). Grade: We have Morgan, Schunk, E-Carbon, Mersen, Megaa for you chooses.
6). Sample Lead Time: 10 days.
7). MOQ: 10PCS
8). Delivery time:7days.
9). Addition: We can produce as customer's requirement.
10). Payment: TT, L/C, Western Union, Paypal.
11). Shipping: By Sea, by Air, by Express door toor( DHL/TNT/UPS/EMS/FedEx).
12). Packing: 1. Box packing 2. PP bag 50 or 100 sets, 3. As customer's requirement.
Data sheet:
| carbon brushes J230 : |
| Type | Grade | Resistivity( μΩ@ m ) | Rockwell hardness | Contact Vo.Drop (V ) | Coef.Of Friction ( ≤ ) | Wear Value in 50rs.
(mm) | Current Density (A/cm2) | Application |
| Metal -graphite | J230 | 0.1 | 75(392) | 0.3 | 0.2 | 0.7 | 20 | D.C.generator s with low voltage and slip ring of A.C. Asynchronous motors |
2. MaterialsOur industrial brushes are made from the following materials:
-Carbon Graphite
-Electrographite
-Resin-Bonded Graphite
-Copper Graphite
-Silver Graphite
-Other Metal Graphite
3. Appliances-Elevators
-Fork Lifts / Lift Trucks
-Golf Carts
-Light & Heavy Duty Vehicles & Equipment
-Material Handling Equipment
-Turbine & Compressors
-Power Tools
-Rail Systems

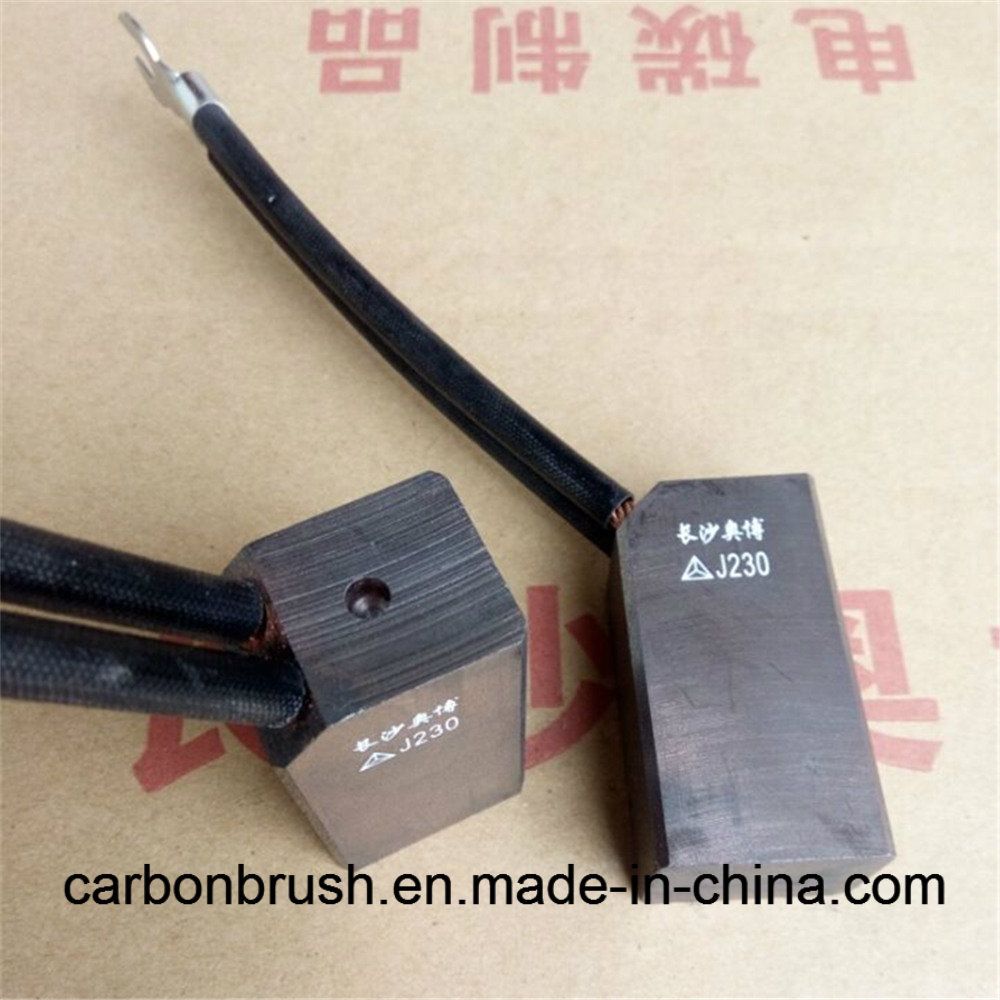

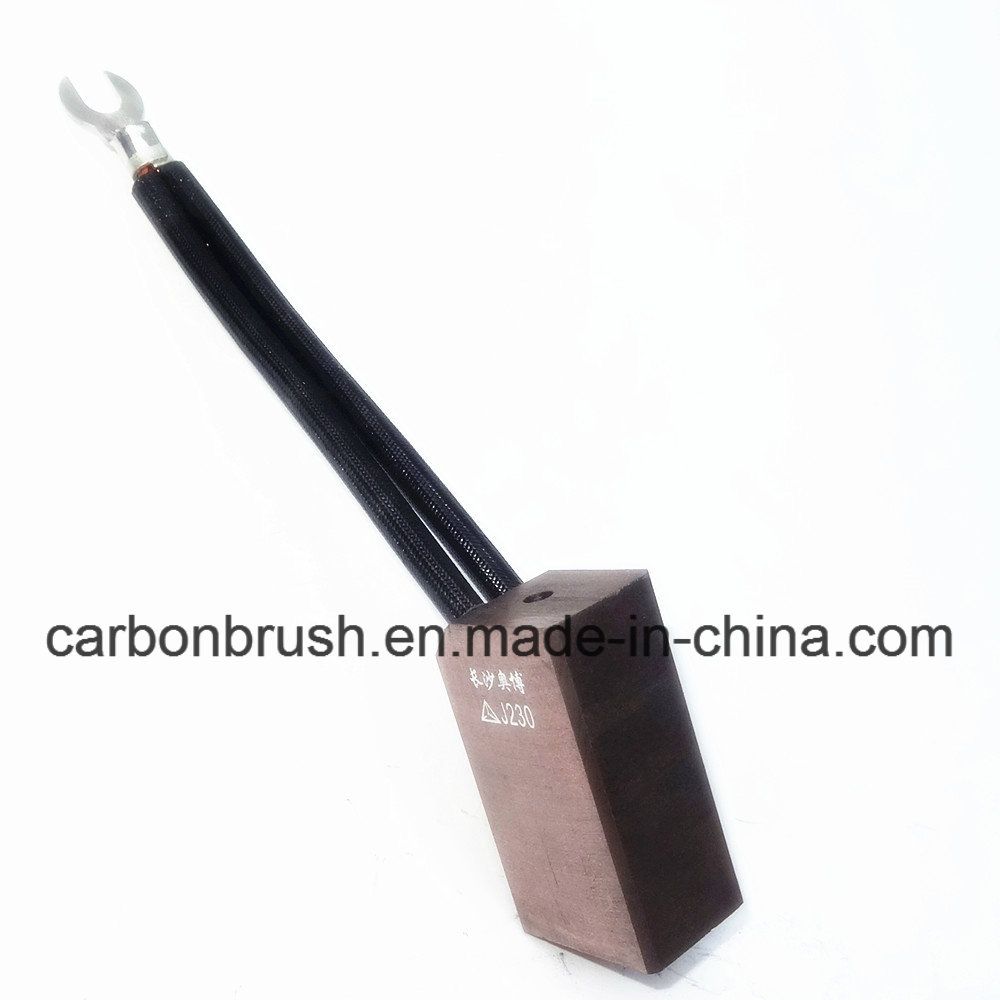

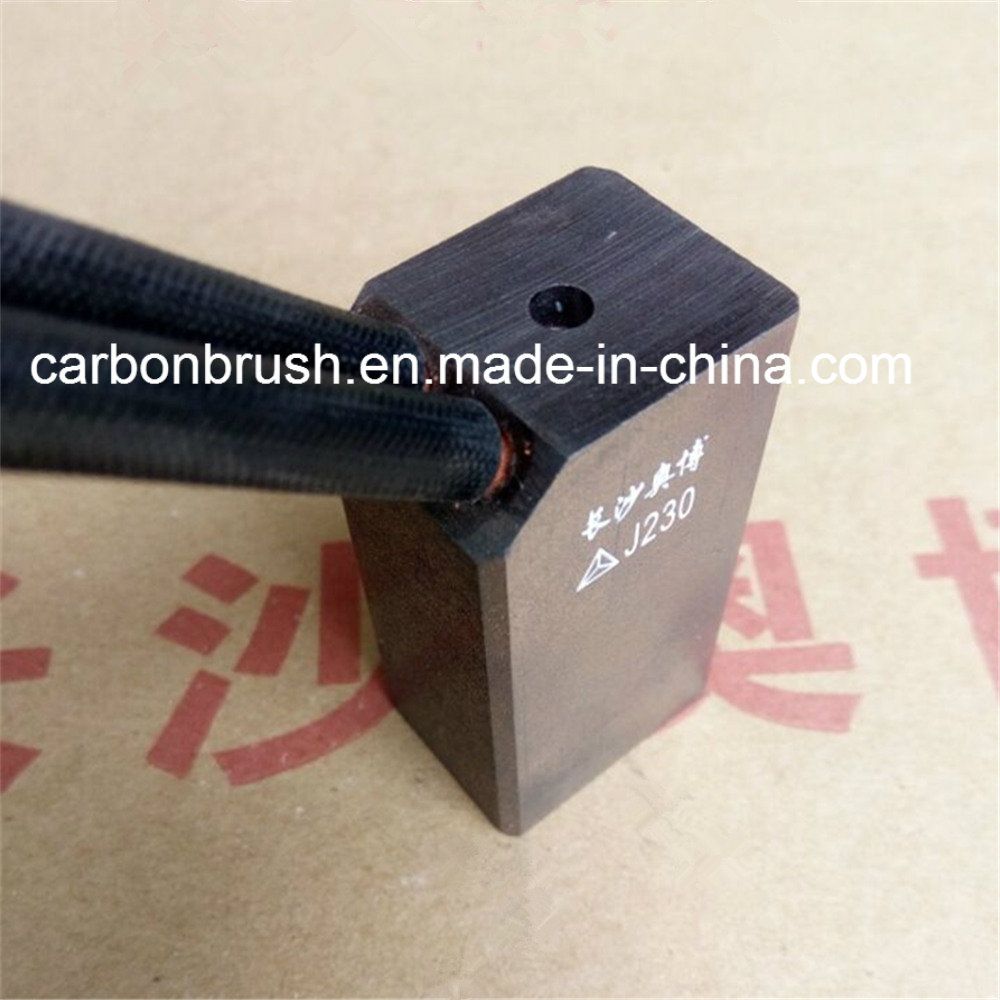

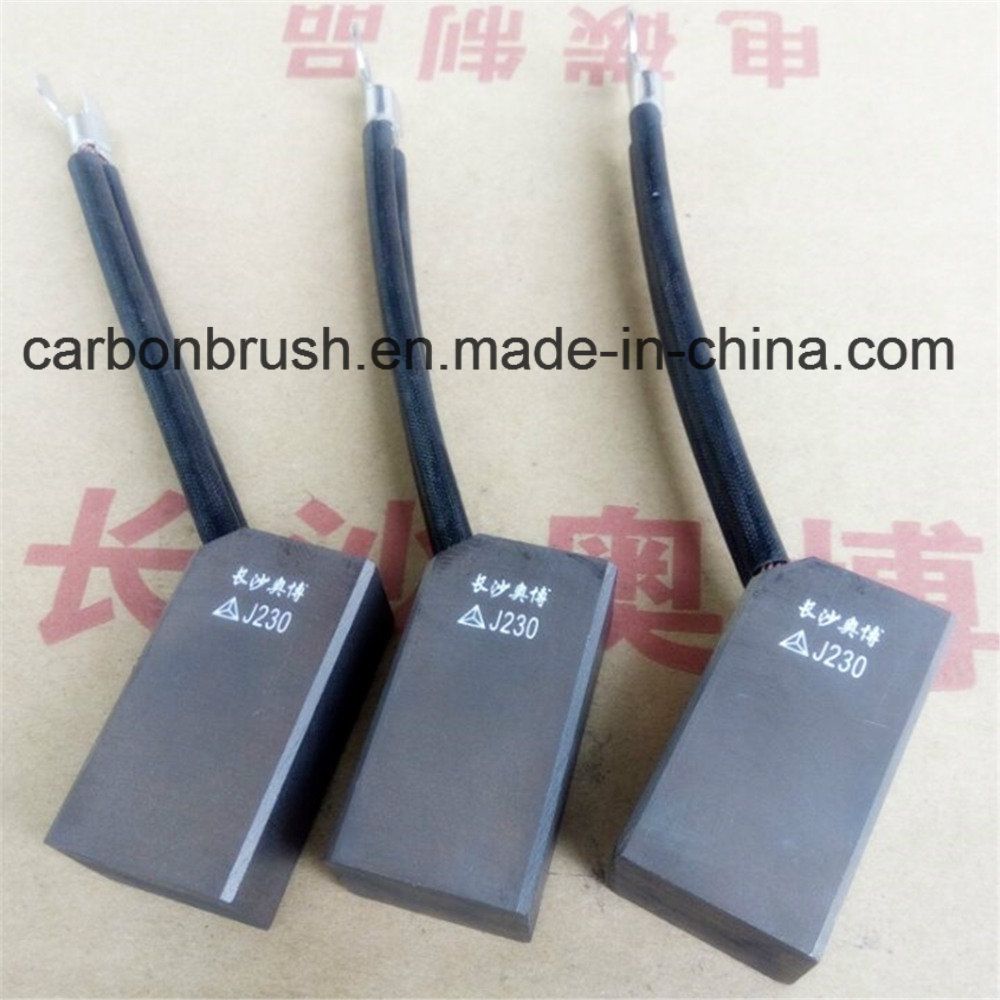

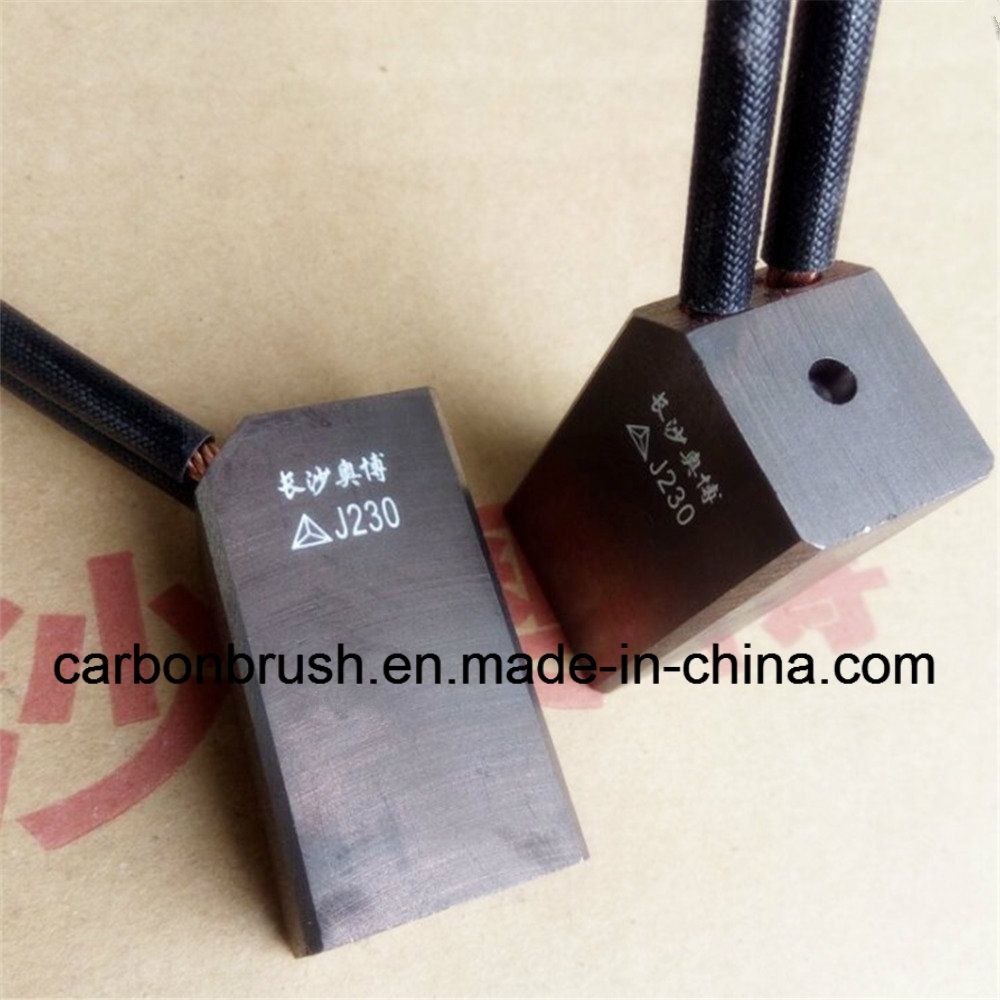

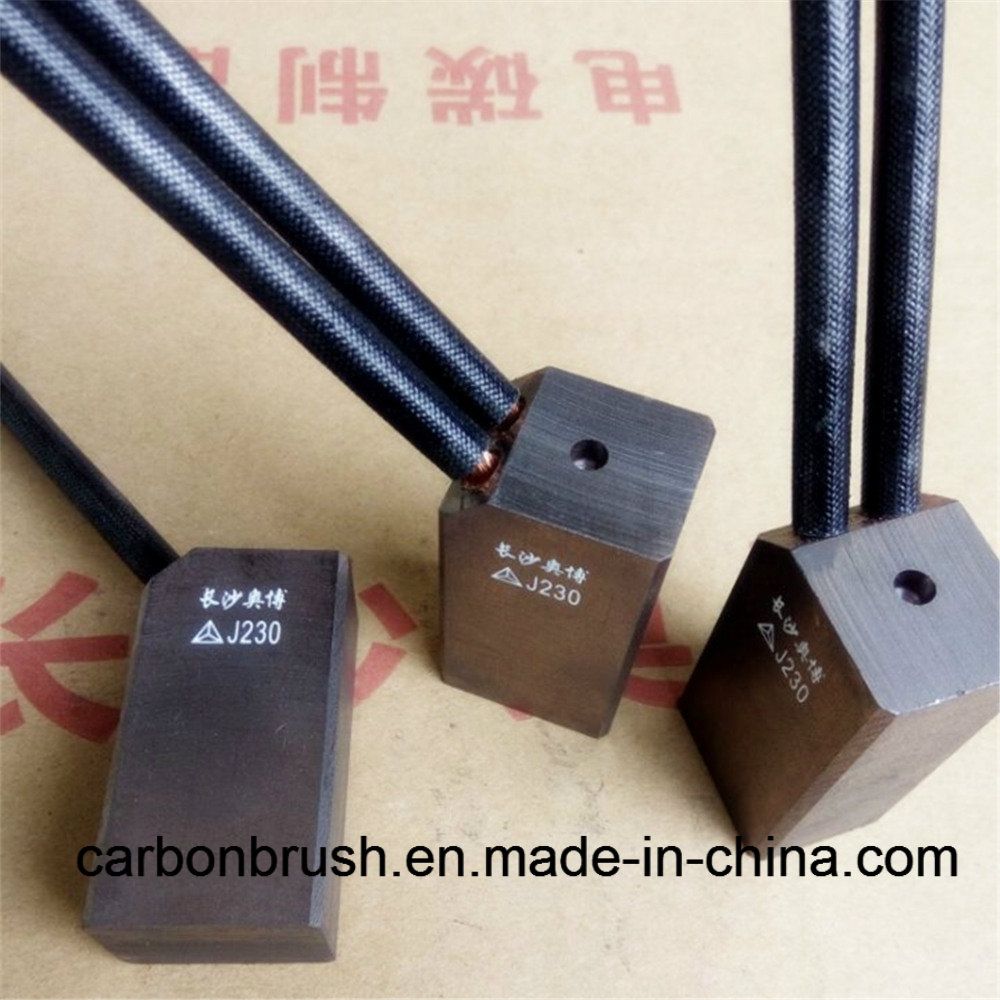

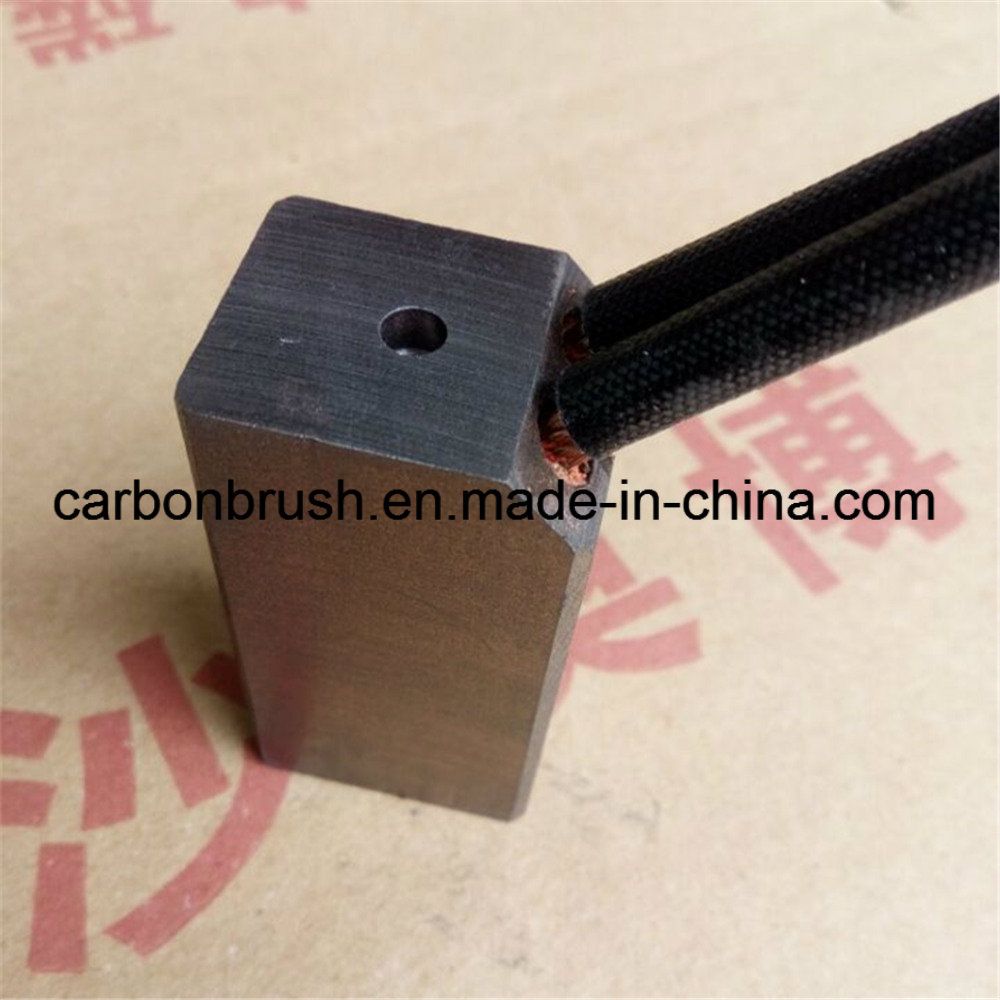

4.Products picture
5. Buying guides:| 1. when order brushes product, end users should specify the order drawing number, type and size the required quantity and delivery time requirements. |
2. Special specifications and structure, please provide drawings or samples. |
3. Our company has kept the map, when ordering, please indicate the figure number. |
4.We list the commonly used various sizes and models of carbon brushes , if there are special requirements, please note so that specify them in contract. |
Welcome to send the inquiry to us, thanks.
