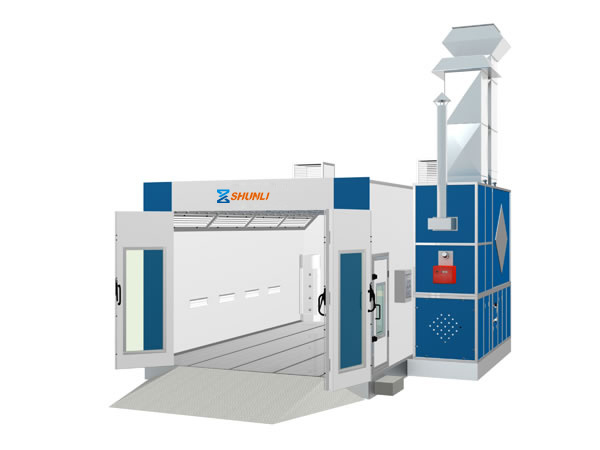

Car Spray Booth/ Painting Booths (SHL-BT800)

Name: Car Spray Booth/ Painting Booths (SHL-BT800)
Brand: ibuyautoparts.com
SKU: 777706805
Availability: InStock
Rating: 5 (147 reviews)

Price:	US $ 11047/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

SHL-BT800
Specification
1) Outside dimension: 7000*5360*3430mm(L*W*H);
2) Inside dimension: 6900*4000*2650mm(L*W*H);
3) Basement: complete zinc steel assemble, height is 280mm,
all grilles; 3 pcs of ramp, support weight: 3tons-4tons;
4) Main door: 3-fold( 3 leaf), 3000*2600 mm (W*H);
5) Wall Panels: thickness is 50 mm, and insulation is EPS panel;0.6mm double skinned sheet;roof panel is galvanized steel sheet construction;
6) Lighting: Ceiling Lights: 8Groups*4Pcs=32Pcs *36W;Side Lights: 8Groupsx2Pcs=16Pcs x36W; Philip tube;
7) Glass: all glass is toughened glass;
8) Generator: back upper intake air, back upper extract air, quadrate steel frame, coated steel;
9) Intake and exhaust air system:
Intake fan: 1 turbo fan, 7.5KW motor, direct drive, capacity: 25000m3/h;
Extract fan: 1 turbo fan, 7.5KW motor, direct drive, capacity: 25000m3/h;
10) Heating system: RIELLO G20 diesel burner (one stage), heating capacity is 180000Kcal/h, electric damper from spraying to baking cycle, 20N actuator;
11) Filtering system: Pre-filter, high efficiency filter (ceiling filter), floor filter, extract filter, active carbon filter;
12) Control box: spraying, risen-temperature spraying, baking temperature, time setting, lighting switch, hour meter, pressure gauge, emergency stop, failure alarm, temperature control meter;

Prod Model:	SHL-BT800
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power Supply:	380V/50Hz/60Hz
Outside Dimension:	700053603430mm
Inside Dimension:	690040002650mm
Fan:	1 Turbo Fan, 7.5kw Motor
Certification:	CE
Airflow Direction:	Fully Undershot-type
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Condition:	New
Brand:	Shun Li

GUANGZHOU SHUNLI MACHINE Co., Ltd. is one of the leading companies that manufacture scissor lift two post lift, 4 post lift, auto-service equipments. It's a comprehensive company integrates R&D, production, promotion and trading with foreign companies.

The company is located in Huadu district Guangzhou, the South of China. It's only 15 minutes far from Guangzhou airport which is the biggest international airport in Asia. It's about 40 minutes from Huangpu, Guangzhou port. Our company covers an area of 30, 000 square meters, with 130 workers, including one design and technology team.

In 2013, the companies sales amount up to 30, 000, 000 RMB in the local market. We are OEM and cooperation with all trading company before. Our company supplies all kinds of auto-service equipments with high added value. We have exported our products to more than 70% countries in Europe, south America and north America, besides we have agent over 50% countries in Asia, Africa and Oceania. The sales of this year is expected to increase by 100% than last year. Our main products include scissors lifts, 2 post auto lifts, 4 post auto lifts, four wheel aligner, spray booth, auto collision repair system, wheel balancer and tire changer etc.

With advanced technology and equipment advantages, our company develops and manufactures a series of good products to cater for the need of the customers and make a contribution to solving. We specialize in technology research and development, design and manufacturing, installation, training and after sales service for car lift.

We gain all kinds of qualification certificate special SO9001 European C. E certification, Ten top brand scissor lift in China, Good quality Guarantee and so on. Your satisfy is our request, Welcome to visit our factory know more about us.
