| Prod Model: |
SHL-W610 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power Supply: |
380V/50Hz/60Hz |
| Outside Dimension: |
7000*5430*3250mm |
| Inside Dimension: |
6900*3900*2600mm |
| Air Flow: |
24000 M3/H |
| Power: |
10kw |
| Certification: |
CE |
| Airflow Direction: |
Fully Undershot-type |
| Heating Mode: |
Diesel |
| Paint Mist Treatment: |
Dry-type |
| Condition: |
New |
| Brand: |
Shun Li |

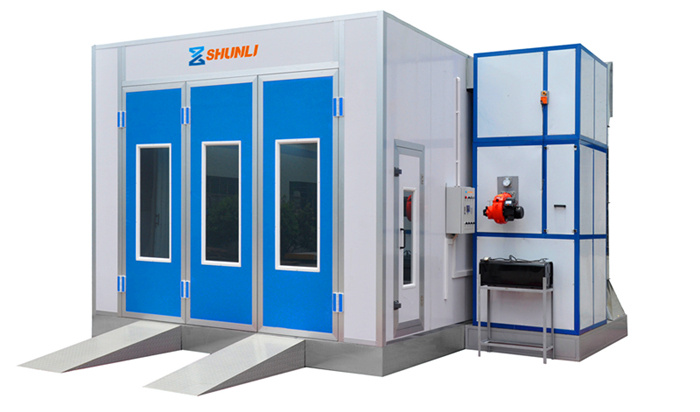

Product Description
Configuration:
Wallboard: Sandwich style EPS (epispastics polystyrene) 50mm thickness. Galvanized steel roof panel.
Basement: Galvanized steel sheet and square steel pipe construction. 2 rows of grids with floor filter & 3 rows of checkered plates. 2 pcs of ramps.
Door: 3 pcs of front doors with powder coating treatment frame. Size: 3000(w) x 2600(h). 1 pc of emergency door.
Air Circulation System: 2x4kw intake fan. Manual damper.
Burner: Baltur BT14 diesel burner,140000Kcal/h. The heating time 8-10min(20-60.C). Max. temperature at 80.C. Fuel consumption is 4-5kg/vehicle.
Heat Exchanger: Made of stainless steel. The heat exchange rate reaches 85%.
Lighting System: Ceiling light has 24 pcs of 36w lamps. 800 Lux.
Air Purification: Dual filtering structure. The primary filter can capture granules larger than 10μm. Ceiling filter capture granules bigger than 5μm. The air cleanliness in the working environment can reaches
98%.
Model | External Size (m) | Internal Size (m) | Air Flow (m3/h) | Air Speed (m/s) | Power (kw) | Vehicle Suited |
| SHL-W610 | 7x5.43x3.25 | 6.9x3.9x2.6 | 24000 | 0.3-0.5 | 10 | Saloon Car Jeep |
GUANGZHOU SHUNLI MACHINE Co., Ltd. is one of the leading companies that manufacture scissor lift two post lift, 4 post lift, auto-service equipments. It's a comprehensive company integrates R&D, production, promotion and trading with foreign companies.
The company is located in Huadu district Guangzhou, the South of China. It's only 15 minutes far from Guangzhou airport which is the biggest international airport in Asia. It's about 40 minutes from Huangpu, Guangzhou port. Our company covers an area of 30, 000 square meters, with 130 workers, including one design and technology team.
In 2013, the companies sales amount up to 30, 000, 000 RMB in the local market. We are OEM and cooperation with all trading company before. Our company supplies all kinds of auto-service equipments with high added value. We have exported our products to more than 70% countries in Europe, south America and north America, besides we have agent over 50% countries in Asia, Africa and Oceania. The sales of this year is expected to increase by 100% than last year. Our main products include scissors lifts, 2 post auto lifts, 4 post auto lifts, four wheel aligner, spray booth, auto collision repair system, wheel balancer and tire changer etc.
With advanced technology and equipment advantages, our company develops and manufactures a series of good products to cater for the need of the customers and make a contribution to solving. We specialize in technology research and development, design and manufacturing, installation, training and after sales service for car lift.
We gain all kinds of qualification certificate special SO9001 European C. E certification, Ten top brand scissor lift in China, Good quality Guarantee and so on. Your satisfy is our request, Welcome to visit our factory know more about us.
