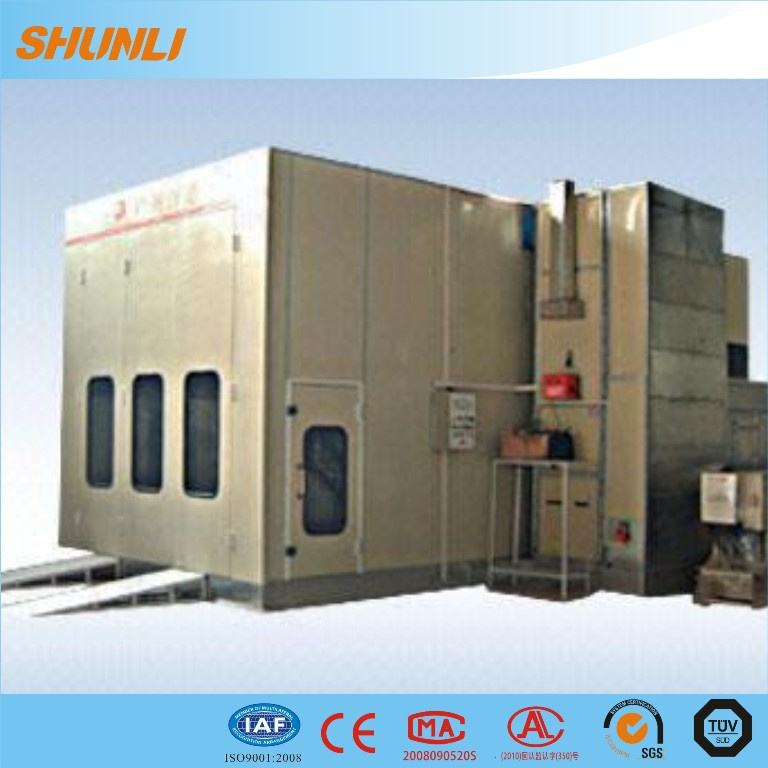

8m spray paint booth for medium-size bus or vans
Medium size Bus Spray Booth Technical Specifications:
External dimensions (mm) (L) 8700 x (W) 5500 x (H) 4300
Interior dimensions (mm) (L) 8600 x (W) 3900 x (H) 3500
Vehicle Entrance dimensions (mm) (W) 3100 x (H) 3500
Blower capacity (m3 /h) 25000
Booth interior air speed (m/s) ≥ 0.25
Operating Temperature ( C) 20 ~ 75
Diesel fuel consumption (kg/h) 7~9
Raising Temperature(40~80 C) 5~15 minutes
Power Consumption (kW) 17kw
Noise level (dBA) <85
Suitable vehicle types: Passenger Cars and Vans
(Follow the passenger car /van model)
Main features:
1. Booth design: The booth panels wall thickness: 50 mm are made of 0.476mm steel and plastic plates with injected fillings of heat insulation foam materials in the middle section. This provides better heat retention and sound proofing. The booth ceiling panels are made of rigid folded electric galvanized steel plates frame. All the panel joints are lined with aluminum strips which provide better sealing.
2. Door design: The booth front entrance has three doors (foldable) and one safety exit / service door at the side. All doors were made by bending methods and the middle sections are reinforced with 1.5mm thick steel plates frame. During installation M8 bolts and nuts are needed to fix up. The sight glass is of oblong shaped.
3. Air intake system: One unit 7.5kw motor direct drive blower, 25000m3/h. The heat exchanger is made of stainless material thickness of 1.5mm which features more heat dissipating surface, better heat exchange and better burner efficiency. The burner is an Italian made brand "RIELLO"mode 40-G20 and the air valve uses "BELIMO" electronic control unit.
4. Air exhausts system: One unit 7.5kw direct drive blower, 25000m3/h.
5. Lighting system: At both (left and right) corners of the booth ceiling, there are 5sets of 45 degree mounted lightings. Each set consist of 4pieces 40W philips lamps. At the middle section of booth (left and right) side panels, there are 6 sets of lightings. Each set consist of 2 pieces 18W philips lamps. Finally at the midsection of the rear end of the booth have 2 sets super bright lights.
6. Ceiling filter system: Utilizes wool type filters which filter out 99% dust which
Ensure that the air entering the booth interior is virtually dust free. The filter frames precisely fabricated to ensure better sealing and easy filter replacement.
7. Booth flooring system: It consists of 2 rows of extra heavy duty steel grid covers and below it lay the filters which filters the out going air that exhaust out to the exhaust fan.
8. Control system: Baking process Auto temperature control and auto shut
Off after completion.
| SHL8600-4000-II Spec. |
| Interior Size | 8600×4000×3500mm(L×W×H) |
| Exterior Size | 8700×5550×4320mm(L×W×H) |
| Wall | 50mm thick EPS Panel, Width 1150mm |
| Door | 3 Front Doors with safety glass window,3100×3400mm(W×H), 1 safety door with glass window 650×1850mm(W×H) |
| Basement | 300mm High, Two rows grid plate and below it lay fiber filters; 3 flower pattern; 2 outside ramps 900x2000mm(WxL) |
| Air Inlet | One 11W motor direct drive,fan capacity 32000 m3/h, |
| Air Exhaust | One 11KW motor direct drive,fan capacity 32000 m3/h,2 Straight Ducts,one of each 90 degree and 45 degree elbow |
| Heating System | Italian RIELLO G20 Diesel Burner,Stainless Steel Heating exchanger,Spray and baking shifted by pneumatic organ |
| Filtration System | Pre filters; Ceiling Filters and Exhaust Filters |
| Lightening System | Ceiling tilted lights 10 Units,each unit 4×40w; Side Lights 12 units,each unit 2×20w, Brightness≥1200Lux |
| Electric Control | Standard control panel, paint at constant temperature; Baking Automatic |
| Power | 24.2Kw,powered by:380V(220V)/50Hz |

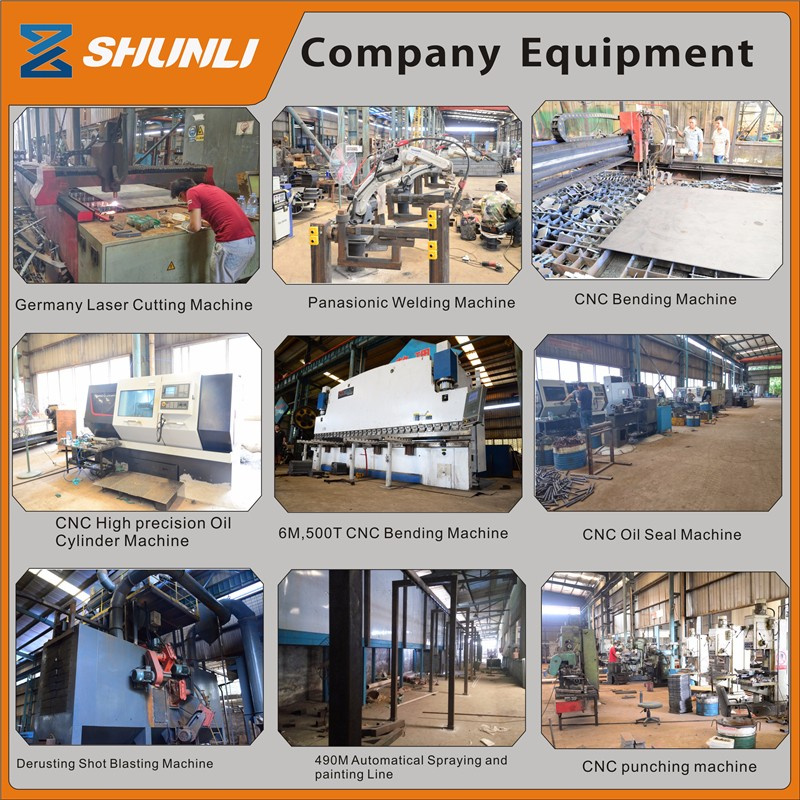

We have production machinery like hydraulic bending, CNC automatic cutting, drilling, CNC lathe milling, welding machines and necessary special tools in production of machinery.
