Prod Model: |
YS-PRH-R |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Air Intake: |
1*5.5kw Inner Motor Centrifugal Fan |
Air Exhaust: |
1*5.5kw Inner Motor Centrifugal Fan |
Heating: |
1 Unit Riello G10 Burner Diesel |
Voltage: |
1X220V, 3X380V, Your Special Voltages Are Accepted |
Optional Colour: |
White, Blue, Orange and Orange |
Port: |
Huangpu Port or by Your Order |
Main Product: |
Spray Booth, Prep Station, Infrared Curing System |
Certification: |
CE |
Heating Mode: |
Diesel |
Paint Mist Treatment: |
Dry-type |
Condition: |
New |
Type: |
Spray Booth |
Substrate: |
PVC Curtain and Galvanized Steel Panel |
Brand: |
Yokistar |
Coating: |
Painting & Powder Coating |
Airflow Direction: |
Full Downdraft Airflow Way |

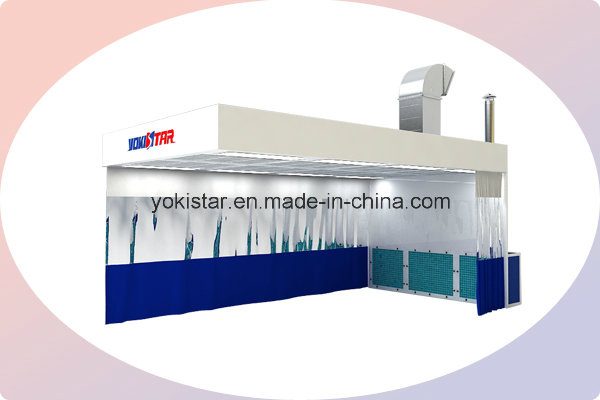

Product Description
A.Prep stations make it possible for users to prep and perform minor paint work in one area without moving the vehicle
B.Prep stations speed up the drying process and improve the overall quality of your finished product.
C.Two airflow choice, above ground exhaust box and pit style downdraft, allow easy integration into new or existing body shop layouts.
D.Optional heat units are available for high production needs.
Specification for Prep Station YS-PRH-R
The air draft way |
By rear cabinet. |
|
Cabin |
Inside Size | |
| 6,300x3,450x2,700mm(LxWxH). |
Outside Size | |
| 7,550x3,550x3,100mm(LxWxH). |
4 sides configuration | |
| Rear wall: made of 1.0mm thick galvanised steel, painted with white powder. |
| Front,Left and Right: PVC curtain, thick is 0.5mm. |
Roof Panel | |
| Made of 0.6mm thick bended galvanised plate. |
Ceiling Light | |
| Left and right upper position have 4 lighting fixtures, total 8 fixtures. Each fixture is equipped with |
| 4 PHILLIP fluorescent tubes of 36 Watt with two in one electronic ballast. |
Plenum | |
| 400mm high, all spare parts of plenum are made of galvanised bended steel and treated by white |
| powder for long using life. |
Ceiling Filter | |
| Supporting net is made of C shape steel with surface oil painted treatment,sub-high efficiency filter, |
| F5 Grade(EN779),type is SP-600G. |
| |
Makeup Air Units |
Cabinet Size | |
| 1,300x950x2,000mm(LxWxH). |
Cabinet | |
| Made of 50x50mm size galvanised square tube, three way connector made of alluminium alloy. |
Filtering | |
| Pre-filter,G3 Grade(EN779),type is C16-300. |
Motor and Fan | |
| Motor type:inside of the fan; qty.:1pc; single motor power:5.5KW, total power:5.5KW. |
| Fan type: double intake centrifual fans, YDW-4.5S, total air capacity: 15,000m3/h. |
Makeup Air Control | |
| Handed Actuator to control fresh air quantity. |
| |
Exhaust Air Units |
Cabinet Size | |
| 1,300x1,250x1,100mm(LxWxH). |
Cabinet | |
| Made of 50x50mm size galvanised square tube, three way connector made of alluminium alloy. |
Filtering | |
| Carbon Filter in "M" Shape Filter Frame. |
| Fibre glass filter, G3 Grade(EN779),type is PA-50 . |
Motor and Fan | |
| Motor type:inside of the fan; qty.:1pc; single motor power:5.5KW, total power:5.5KW. |
| Fan type: double intake centrifual fans, YDW-4.5S, total air capacity: 15,000m3/h. |
Makeup Air Control | |
| Handed Actuator to control fresh air quantity. |
Heat Exchanger | |
| 180KW, made of 1.5mm stainless steel 1Gr18Ni9Ti(SUS304), with round type multi-cycle |
| radiatorpipe, equipped with safe anti-explosion hole, 1M stainless steel chimney, 3M |
| long bended galvanisedsteel chimney and 1 pc of rain shield. |
Burner | |
| Riello G10 diesel burner, heating productivity is 100,000Kcal/H. |
Exhaust Air Duct | |
| Equppped with 4M straight duct, 2pcs 90° elbow duct and 1pc 30° elbow duct. |
| |
Control System |
| Temperature Controller,Hours Meter,Power Indicator,Normal Temperature Polishing Indicator, |
| Rising Temperature Polishing Indicator,Burner Failure Indicator,Power Switch,Polishing Switch, |
| Left Light,Right Light,Emergency Stop. |
OVERVIEW
A. YOKISTAR Prep Stations are designed for the preparation of vehicles without moving. Many tasks, including sanding, priming, painting and sealing, all can be completed in the same area by YOKISTAR Prep Stations.
B. Multiple length, width and height options are available in YOKISTAR Prep Stations to accommodate various custom requirements.
C. Your every specific finishing requirement, including filtration, lighting, temperature and air flow, will be taken into consideration in YOKISTAR Prep Stations.
INTAKE AND EXHAUST SYSTEM FEATURES
5.5kw exhausting inner motor centrifugal fan and 5.5kw intaking inner motor centrifugal fan is applied in YOKISTAR Prep Stations, providing a quiet and highly productive working environment.
LIGHTING FEATURES
Ample lighting can be reached by PHILIPS fluorescent tubes in the roof or the walls of YOKISTAR Prep Stations behind tempered safety glass, and have optional external access for easy maintenance.
Lighting box is made by powder coated color steel, with electric ballast.
RIELLO burner
Optional
Cupboards in the rear of YOKISTAR Prep Stations to store painting materials and equipments
Roll-Up Curtains(motorized controls/manual operation)
Other features
Overspray and dust control by 95% filter efficiency
PHILIPS lamps, BELIMO damper and RIELLO burner
Main electric components are CE listed
All hardware, fasteners, sealants
24 months warranty
Delivery time of standard prep station can reach 10 business days
Bubble film packaging for sea transportation in bulk, special steel tray packages are accepted
Warranty
The goods are guaranteed for 24 months from the date of receipt, but the filters and lamps are not guaranteed. It cannot be applied for damages caused by negligence of operations or mishandling of the machine.
