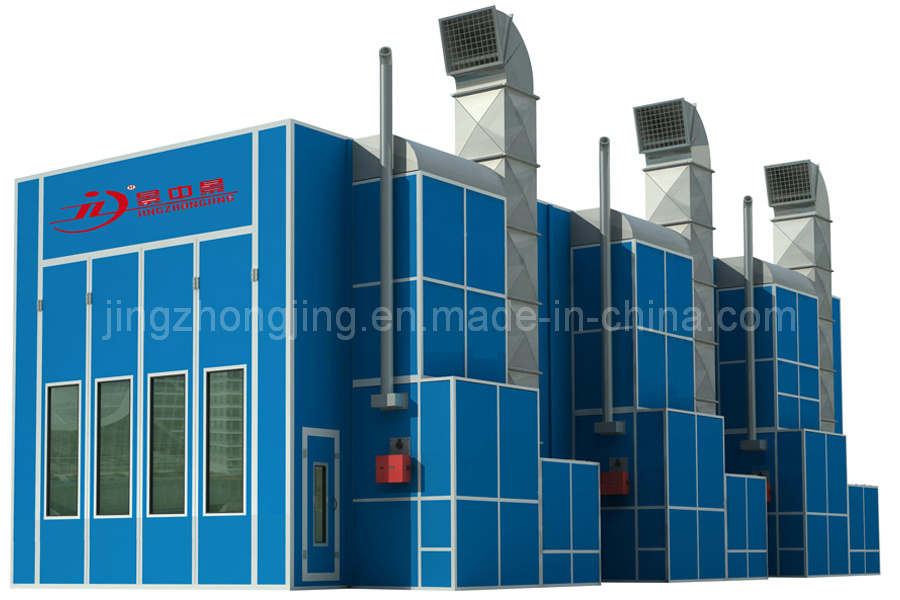

Bus Spraybooth for 2000060005000 (Model: JZJ-FB-20)

Name: Bus Spraybooth for 20000*6000*5000 (Model: JZJ-FB-20)
Brand: ibuyautoparts.com
SKU: 725837245
Availability: InStock
Rating: 4.7 (71 reviews)

Price:	Negotiable/Set
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Set
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	JZJ-FB-20
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Sea Blue, Red, Orange, White
Certification:	ISO9001
Airflow Direction:	Fully Undershot-type
Heating Mode:	Diesel
Paint Mist Treatment:	Dry-type
Condition:	New

Product Description

1. External lighting.
2. Proof-explosion motors.
3. CE and ISO certification.

Outside Dimension (mm)	2015680065800(LWH)		Inside Dimension(mm)	2000060005000(LWH)
Front Door(mm)	48004500(WH)		Service door (mm)	1800650(WH)
Total Power	120KW
Cabin system	Wall panel	75mm EPS sandwich panel, steel sheet thickness: 0.6mm
	Ceiling panel	50mm rock-wool panel.
	Windows	4mm safety tempered glass
Air Make-up System	Air Inlet fan system	6*9kw centrifugal belt-drive fan, proof-explosion motor.
	Exhausted fan system	3*18.5kw centrifugal belt-drive fan, proof-explosion motor.
	Ai capacity for fresh air	23000m3/h *6
	Air capacity for exhausted air	42000m3/h *3
	Air Flowing speed	0.25m/s in empty booth
	Air Control method	Each exhausted fan system with One manual damper for exhausted system
	Exhausted ducting	Each exhausted fan system with 6meters straight ducting, one 90°elbow for each unit fan system.
Purification System	Pre-filter	G3 grade
	Ceiling filter	EU5 / F5
	Floor filter	green fiber glass filter / G3 grade
	Exhausted fan Filters	M green fiber glass filter.
Heating System	Heat Exchanger	SUS304 material, argon arc welding.
	Heating burner:	3 sets Riello RG5S diesel oil burner(gas burner for option)
	Heating productivity	260000Kcal/h/ burner
	Spray to baking switch	20N BELIMO brand electrical damper
	Chimney ducting	Each heating system 6 meters stainless ducting for each heating system
	Max heating temperature	80degrees
	fuel consumption	10-15L /vehicle
Lighting System	Ceiling lights	26 Units, each 4 x 36W, Total 3744 W
	Side lights	28 Units, each 2 x 36W, Total 2016W
	Illumination	900LUX
Controlling system	Micro-computerized programming system	spraying&baking switch, lighting switch, emergency stop, breakdown alarm, failure alarm, pressure gauge

Jiangsu Jingzhongjing Industrial Paint Equipment Co., Ltd, is located in the Yangtze River Delta Economic Zone, China Industrial Painting Base, Yancheng city, Jiangsu Province. We have the plant area of 99000m2, garden-style industrial zone. We have the staff of 260, including 20 engineers with 15years designing experience. Our annual production capacity can achieve 2, 500 sets paint booth.

We adhere to the "heritage of big business style, classic gaming counterparts, - creating the world brand" core values. Pursuit high goals, has won wide recognition and praise from the government and the market.

Our products are JZJ Brand spray booth, sandblasting booth, shot blasting machines etc. Our products have passed the ISO9001, EU CE, the products have been shipped in the domestic 34 provinces and more than 50 countries like Germany, Japan, Russia etc.

Our products are well-known in the industrial of the automobile, aviation, military, wind power, nuclear power, engineering machinery, machine tool manufacturing, and other industries.

Welcome the customers from China and all over the world to join us!
